Lockly VISION ELITE Installation Manual page 6

Step 1
continued

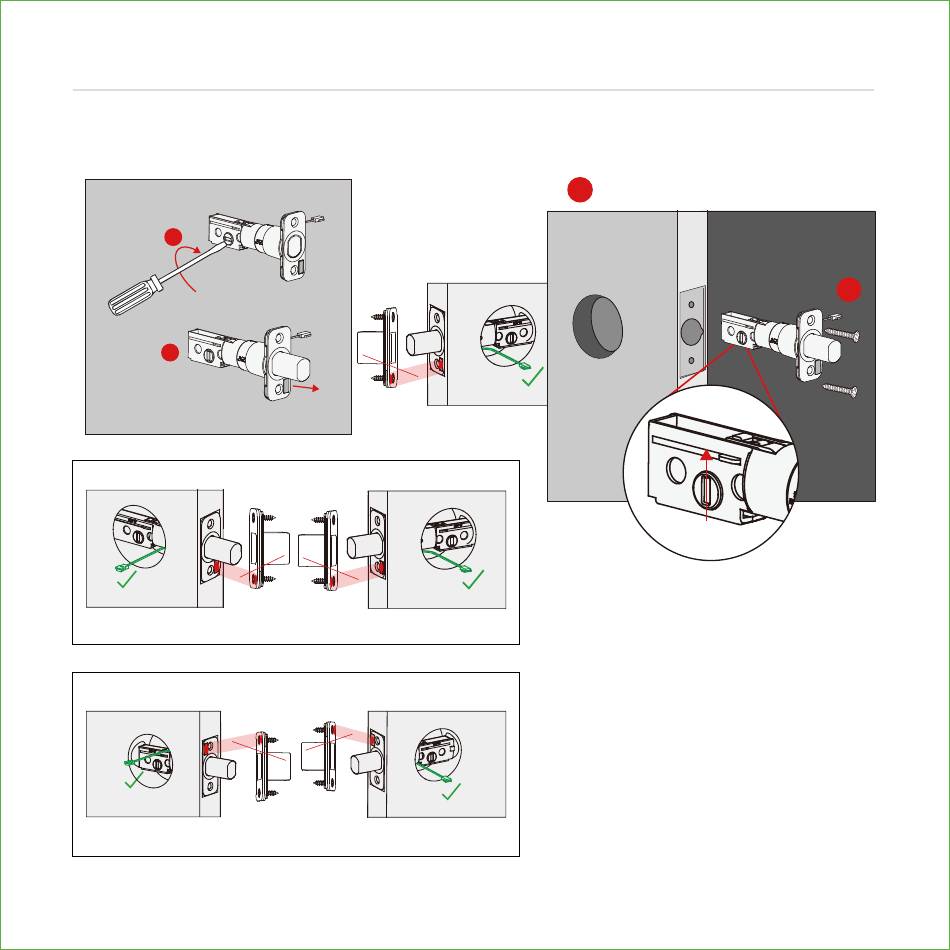

Extend the deadbolt by inserting a flat-head
screwdriver into the slot and turning clockwise.
1
2
Door edge side view (70mm)
Interior
RIGHT SWING DOOR
Door edge side view (60mm)
Interior
RIGHT SWING DOOR
Interior
Interior
LEFT SWING DOOR
Interior
LEFT SWING DOOR
5
ADJUST DEADBOLT AND INSTALL
Insert the deadbolt into the door edge,
make sure that the right side is up and
the slot is in the vertical position. Secure
with 2 screws.
K
Observe the correct position of the cable
to ensure it is according to your door
opening orientation (Left /Right Swing)
and Backset size (60mm/70mm).
During installation, DO NOT hammer the
deadbolt and/or its metal plate to avoid
damaging the built-in sensor.
K
(2X)
