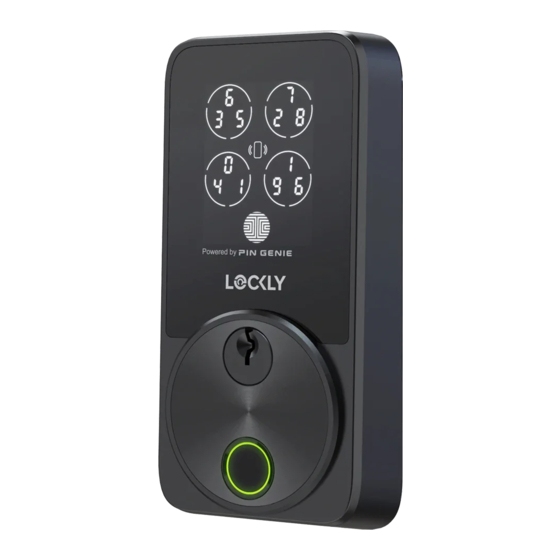

- Page 1 Zeno Series Start First Lockly Visage Installation guide PGK728WRHK...
- Page 2 Welcome Access the latest Install video and installation guide. Scan for the most Scan to watch updated version step-by-step of this manual. video installation Reference foldout Get an overview of all installation components and parts with the handy reference foldout on the back page. Keep it open for reference as you go through each step.
-
Page 3: We're Here To Help
We’re here to help Your Lockly smart lock comes with lifetime technical support. Feel free to contact us with any questions or comments. (669) 500-8835 help@Lockly.com support.Lockly.com... -
Page 4: Charge The Battery
Charge the battery Ensure battery has been fully charged. Charge the battery with the included USB-C cable and a common mobile device charger (not included) rated 5V/2A or higher. A full charge can take up to 12 hours. -
Page 5: What You'll Need
What you’ll need Tools Phillips-Head screwdriver Flathead screwdriver Tape measure or ruler Prepare door Confirm existing door or use provided template to bore new holes. Back-set: 2 ⅜" (60mm) or 2 ¾" (70mm) Thickness: 1 ⅜" (35mm) to 3 ⅛" (80mm) Deadbolt bore hole: 1"... -
Page 6: Table Of Contents
Installation Deadbolt installation Install lock exterior Interior mount plate Interior lock Battery & self-check Strike plate Door sensor Troubleshooting/FAQs 16/17 Parts overview 18/19... -
Page 7: Deadbolt Installation
Deadbolt installation Ensure deadbolt blade slot aligns center in the door hole. A1 (2x) The deadbolt comes set to 2 3⁄8 " (60mm); adjust to 2 3⁄4" (70mm) if needed. 3⁄8 " 3⁄4 " To adjust hold the faceplate and To adjust hold the faceplate twist the body counter-clockwise and twist the body clockwise... -
Page 8: Install Lock Exterior
Installing lock exterior Ensure the torque blade is vertical (up and down) with the deadbolt extended. Note: do not insert a key. Place assembly and torque blade through the deadbolt slot and guide connection cables under the deadbolt as shown. Complete mounting by aligning and securing until flush to exterior door surface. -
Page 9: Interior Mount Plate
Installing interior mount plate Guide the connection cables through the notched gasket in the lower corner, then align the mounting plate. Choose screws based on your door's thickness (see parts reference foldout) and hand tighten until the plate is flush with the door. - Page 10 Installing interior of lock Remove the battery cover from interior Assembly E before installation. Before installing the interior assembly, determine the appropriate direction outlet for the wired sensor. Refer to page "Installing the door sensor" for more. With interior assembly E, connect cable ends to their matching counterparts. Click the rounded antenna connectors in to the built-in clip.
- Page 11 F (4x) Tuck excess cables and connector back into the faceplate and door hole. Align outer thumbturn and torque blade shaft, make sure both are in the vertical position. Carefully tuck cables and connector back into the faceplate and door hole under the deadbolt. Be careful not to force or pinch the cables.
- Page 12 Install battery & perform self-check Ensure battery has been fully charged. With door open and deadbolt fully extended, insert the battery. With the battery installed, hold the program button for 4 seconds. The lock will automatically start a self-check (release the program button once self-check starts).
-
Page 13: Strike Plate
Installing door frame strike plate Two strike plates (L & O) are provided. There is also an optional strike reinforcer plate N that can only be used with the L strike plate. Choose the strike plate that best fits your door frame and needs. Alternatively, you can use your existing deadbolt strike plate. -
Page 14: Door Sensor
Installing the door sensor Door sensors provide real-time open/close push notifications and status updates. They also enable voice control with Siri, Amazon Alexa, or Google Assistant. Install the sensors on the interior side on clean, grease-free, and dry surfaces. Sensors can be mounted on either the left or right side (example shows right side). - Page 15 Continue to Setup and Use Refer to guide number 2 "Setup and Use" to complete installation. Zeno Series Start Second Lockly Visage Setup and use Scan for the most updated version. PGK728WRHK...
-
Page 16: Troubleshooting/Faqs
Troubleshooting FAQs... -
Page 17: Troubleshooting & Faqs
Lockly uses 5-pin cylinders for the Deadbolt Editions, which can be replaced using rekeying kits from various brands. Always follow the specific instructions provided by Lockly for your model, as rekeying procedures can vary. If you need clarification or are uncomfortable with rekeying, we recommend seeking help from a professional lock-... - Page 18 Is Lockly compatible with all types of doors? Lockly is compatible with most left and right swinging standard doors. However, it’s important to check the specifications to ensure compatibility with your door type. Doors thicker than 2 inches (50mm) may require an optional longer torque plate and screws available through Lockly customer service at: support@lockly.com or (669)
- Page 19 We’d love your feedback. Please let us know how your installation went or if you have any other comments. Our short survey takes less than 2 minutes to complete. Scan to start...
-
Page 20: Parts Overview
Sensor Magnet Foam Pads Strike Plate ST5*70mm Screw Strike Reinforcer Strike Plate Keys Activation Card Tailpiece Pin key Activation Card 123 4 LOCK SERIAL 567 8 PGK7SK012345XXX ACTIVATION CODE 824057XX Need help? Email: help@Lockly.com | Support: +1(669) 500-8835 (Optional) (Optional) - Page 21 The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respective owners. Google, Android, Google Play and Google Home are trademarks of Google LLC.
