Step 3
continued

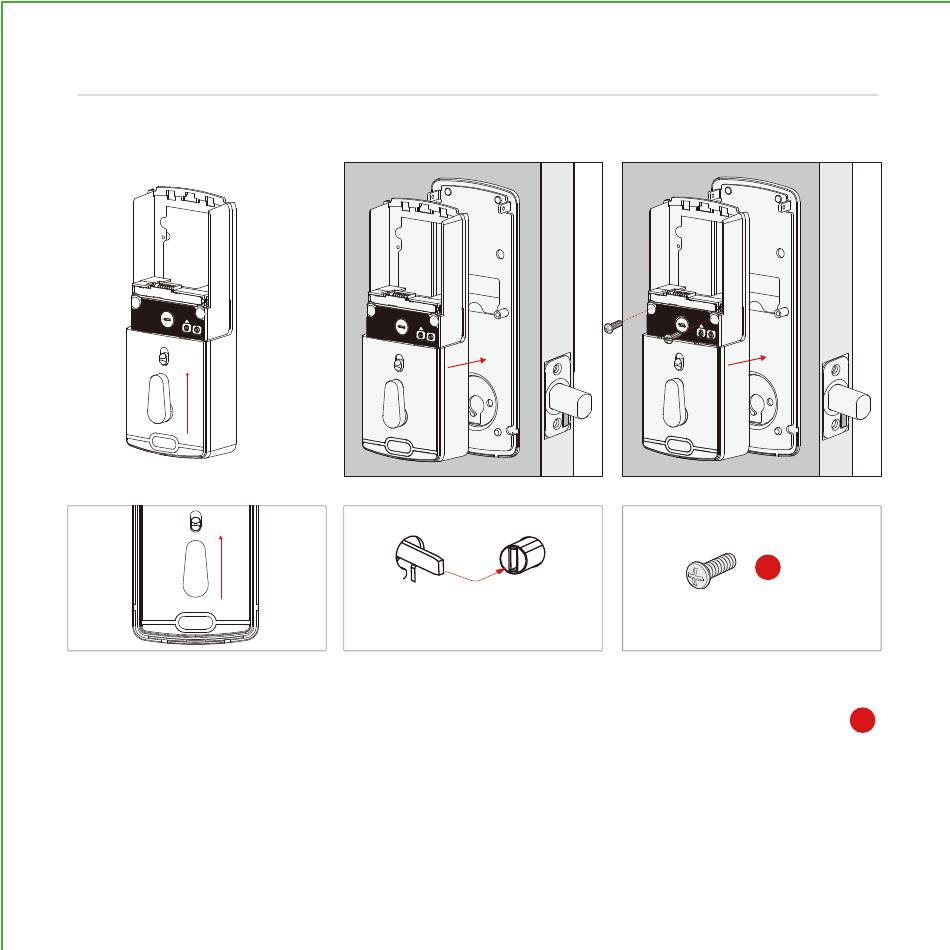

Before placing the interior
assembly onto the mounting
plate, ensure the thumb turn
is vertical.
INSTALLING THE INTERIOR ASSEMBLY (G)
Torque Blade Thumb turn shaft
Align torque blade with thumb
turn shaft, make sure both are in
the vertical position.
Place the interior assembly
against the mounting plate
and make sure the torque
blade is inserted to the thumb
turn shaft.
10
H
2X
Secure the interior assembly
to mounting plate with 2
screws.
H
