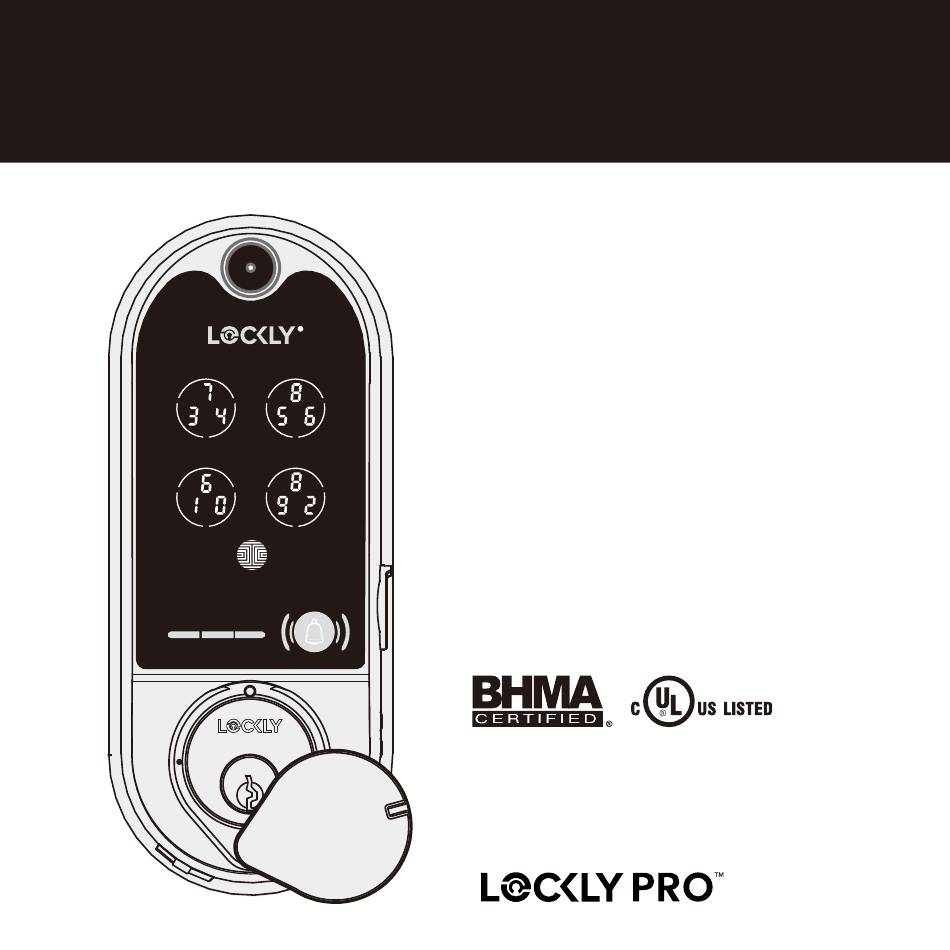

- Page 1 USER MANUAL PGD798U LOCKLY GUARD ™ VISION 798U DEADBOLT SMART LOCK & VIDEO DOORBELL For commercial use & professional installation www.LocklyPRO.com...
-
Page 2: Table Of Contents
Fingerprint Scanning Tips & Troubleshoot Section 4 - Locking and Unlocking For additional support, visit http://LocklyPRO.com/support Unlocking using Access Codes or email prosales@Lockly.com Unlocking with Fingerprints Locking/Unlocking with Physical Key Unlock with QR Code Locking/Unlocking with App Locking/Unlocking with Voice Assistants... -
Page 3: Product Features
The offline access code can allow owners to issue access codes, set the allowed access duration, all without Lockly ever connecting to the internet, so in case of power outage, you can still magically and remotely issue Access Codes without any connection to the web. -
Page 4: Product Overview- Exterior

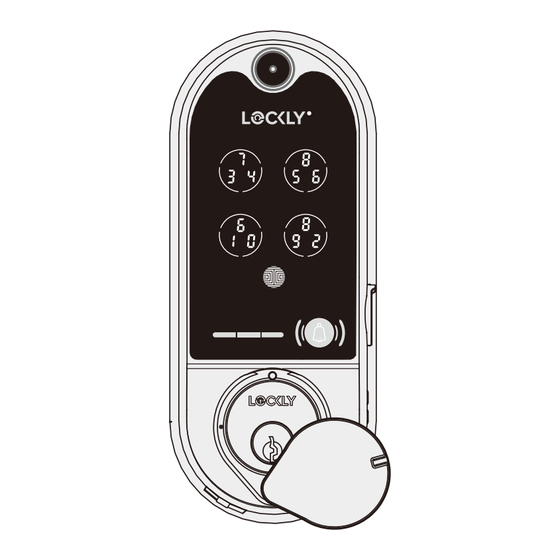

2.1 Product Overview- Exterior Video Camera Microphone Bluetooth Icon OK Button Battery Indicator Safe/Welcome Mode Fingerprint Sensor Video Doorbell Light Indicator Video Doorbell Button Speaker Key Hole Key Hole Cover Reboot 9V Battery Emergency Charging Socket SECTION 2.1... -
Page 5: Product Overview - Interior
2.2 Product Overview - Interior Battery Cover Battery Compartment (Operated by 2 x 4 x AA Batteries) Doorbell Program Button Reset Button Display Keypad Switch Thumbturn Low Battery|Door Sensor LED SECTION 2.2... -
Page 6: Understanding Your New Lock
Don’t forget that in order for Lockly Vision to work with full features, it is required to pair ™ it with the Lockly App available for both iOS and Android smart devices. Please download ™ the app by visiting the link below. -
Page 7: Keypad Display Switch
2.4 Keypad Display Switch For your peace of mind, the exterior keypad screen can be locked and turned off by using the ON/OFF switch at the back panel (PART G) of the smart lock. When it is switched off, people who are outside cannot enter any access codes to unlock the door. SECTION 2.4... -
Page 8: Rebooting Your Lock
Only reboot when necessary. To reboot, find the reboot pin hole located on the bottom of the exterior side of Lockly lock. The reboot button is located in the middle of the two 9V battery backup sockets. -
Page 9: Low Battery
2.6 Low Battery When the battery is in seriously low condition, Lockly will make continuous beeping sounds in addition to the flashing low battery icon on the touch screen. You should replace batteries immediately to avoid your smart lock from shutting down. -
Page 10: Changing The Battery
- Make sure the batteries are oriented correctly by matching the orientation displayed. - Replacing the batteries do not reset stored Access Codes. - To see a list of recommended brands, please visit http://Lockly.com/battery. Whenever batteries are replaced, reconnecting the smart lock to your smartphone App is required. -
Page 11: Configuring Access
1 2 3 4 5 6 The Default Access Code is Your new Lockly Access Code can be any combination of 6 to 8 digits. Once a new Access Code is entered, the Default Access Code of 123456 would be deleted. A maximum of 33 sets of Access Codes can be stored for use at any given time. -
Page 12: Adding A Fingerprint
We are using an advanced biometric sensor, providing the most secure fingerprint authentication. Your smart lock can register up to ninety-nine (99) fingerprints. Use the Lockly app to add fingerprints. Scan your finger by lightly placing your designated finger on the sensor until you hear a beep. -
Page 13: Fingerprint Scanning Directions
3.3 Fingerprint Scanning Directions The fingerprint sensor equipped in your smart lock is loaded with powerful fingerprint algorithms to extract only metadata from fingers, even in poor conditions. Placing your finger on the sensor correctly helps consistency in fingerprint recognition. The following directions and tips will guide you on how to scan an optimal fingerprint image. -
Page 14: Fingerprint Scanning Tips & Troubleshoot
3.4 Fingerprint Scanning Tips & Troubleshoot Tips for Fingerprint Enrollment and Recognition • Place your finger to completely cover the sensor with maximum contact surface. • Position the center of your finger (core) to the center of the sensor. • Hold your finger still for more than a second until you hear a beep. •... -
Page 15: Unlocking Using Access Codes
Five consecutive wrong attempts will put Lockly in “Safe Mode”. (See Section 4.7) Lock your Lockly by pressing the OK Button or by brushing your hand across the screen anytime when the door is closed. The smart lock will also auto-lock after unlocking based on your set auto-lock settings. -
Page 16: Unlocking With Fingerprints
4.2 Locking/Unlocking with Fingerprints Unlocking Place a registered finger to the fingerprint scanner located on the exterior side of the lock to the right. To register a fingerprint, please see Section 3.2. If your fingerprint is registered and acknowledged, you will hear a “beep” sound and a Green LED will light up on the fingerprint scanner. -
Page 17: Locking/Unlocking With Physical Key
A QR code sticker (blue color) comes together with your lock. Open the Lockly app and scan it to unlock. You may also generate a unique QR code via Lockly app for your smart lock. You can generate QR code, print according to the size you want and stick it next to your door. -
Page 18: Locking/Unlocking With App
Alexa or Hey Google and to access video doorbell feature. Please download the app by visiting the link below or search “Lockly” from the correct app store. -
Page 19: Locking/Unlocking With Voice Assistants
Vision Connect has been installed and configured correctly, ™ make sure you enable the Lockly Action on Google or the Amazon Alexa Skill before you can configure your voice to perform voice commands. You can ask your questions such as door status or request for your door to be locked or unlocked. -
Page 20: Safe Mode
After the second incorrect attempt to unlock the lock with the wrong Access Code, Lockly will disable the keypad for 20 minutes, displaying a “20” on the screen. After the third wrong attempt to unlock the door with the correct Access Code, the screen will be disabled for 30 minutes. - Page 21 Access Code is entered. Option 2 - Lockly App Use the app that is synced to your Lockly to disable Safe Mode by unlocking the door. If you have not downloaded the app to use with your smart lock, you won’t be able to use this option to disable Safe Mode.
-
Page 22: Rain Mode
Like other digital electronic products water can trigger to activate the touchscreen and fingerprint sensor which may cause the batteries to drain. To protect the lock and extend battery life, you can setup your Lockly to enter Rain Mode to shut off keypad and fingerprint reader whenever rain or water is detected. -
Page 23: Shine Mode
Mobile App. Enable this feature through the Lockly App. Go to Settings > Enable Welcome Mode, then slide button to enable and set the specific time you require your door unlocked. -
Page 24: Pairing To A New Mobile Device
Download, register and log in to the new Lockly app account. You will need to scan the ACTIVATION CODE* that comes with the lock to setup to a new account. See Step 9 & 10 of the Installation Guide to pair Vision on the new Lockly app account. -
Page 25: Video Doorbell
2-way voice interaction. Recordings are stored locally on the TF card, with no monthly fees, and you can access video recordings from anywhere using the Lockly app. To enjoy these features, make sure the below procedures are done correctly:... - Page 26 5.1 Video Doorbell When the doorbell is pressed, you will receive a notification through the Lockly app. Once you tap on the notification, app will automatically open to allow you to see who's at your door. Tap the Call icon to initiate conversation.
- Page 27 Vision enables you to attend to your door when you are not at home. While using the app, you can use the icons below to view, initiate conversations and unlock door. Live View You can open the Lockly App and tap on the camera to see what Vision sees at all times. Microphone Tap mic to mute or unmute.
- Page 28 Video Recording Lockly Vision stores video recording on the local TF card and recording can be accessed ™ on the log history on your Lockly app. Vision automatically initiate video recording when below conditions take place: Keypad was used to unlock...
-
Page 29: Offline Access Code ™ (Oac)
To use the OAC feature, make sure you download the Lockly app for iOS or Android first, and sync your smart lock to your mobile device. OAC can only be issued by the administrative owner of the lock. -
Page 30: Sub-Admin Access
An eBadge is a unique code that can be issued to another user giving them door access for a specific reoccurring time frame or a valid period of time. It requires them to download the free Lockly app and access can only be gained through the app (not the fingerprint reader). -
Page 31: Re-Keying
6.1 Re-keying Lockly smart lock comes with a 6-pin cylinder which can be replaced with regularly purchased DIY re-keying kit available in the market. If you are not familiar with this process, please contact a professional locksmith. For more information, visit : http://support.Lockly.com/faq/rekeying/... -
Page 32: Important Notes
7.1 Important Notes Auto Lock Feature You can program the auto lock timing through the Lockly App. If auto-lock is not activated and door is still open, the touch-screen will remain lit, simply press the on the keypad to lock. -
Page 33: Cleaning
8.1 Cleaning Making sure your Lockly is clean is best practice to ensure optimal product use. Follow the DOs and DON’Ts below. DON’T • Don’t use abrasives, high • Rinse the touchscreen with alkaline cleaners, or gasoline to warm water prior to cleaning. -
Page 34: Safety Precautions
9.1 Safety Precautions Please read all instructions carefully. Remind all Lockly users of the safety precautions. Read the following instructions for your own safety Do not attempt to disassemble the smart lock by yourself. It can cause product damage, void warranty, and cause injuries. - Page 35 FCC Radiation Exposure Statement Lockly Vision complies with FCC radiation exposure limits set forth for an uncontrolled environment. It should be installed and operated with minimum distance 20cm between the radiator & your body.
- Page 36 The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. , and any use of such marks by Lockly is under license. Other trademarks and trade names are those of their respective owners. Google, Android, Google Play and Google Home are trademarks of Google LLC.
