REASSEMBLY

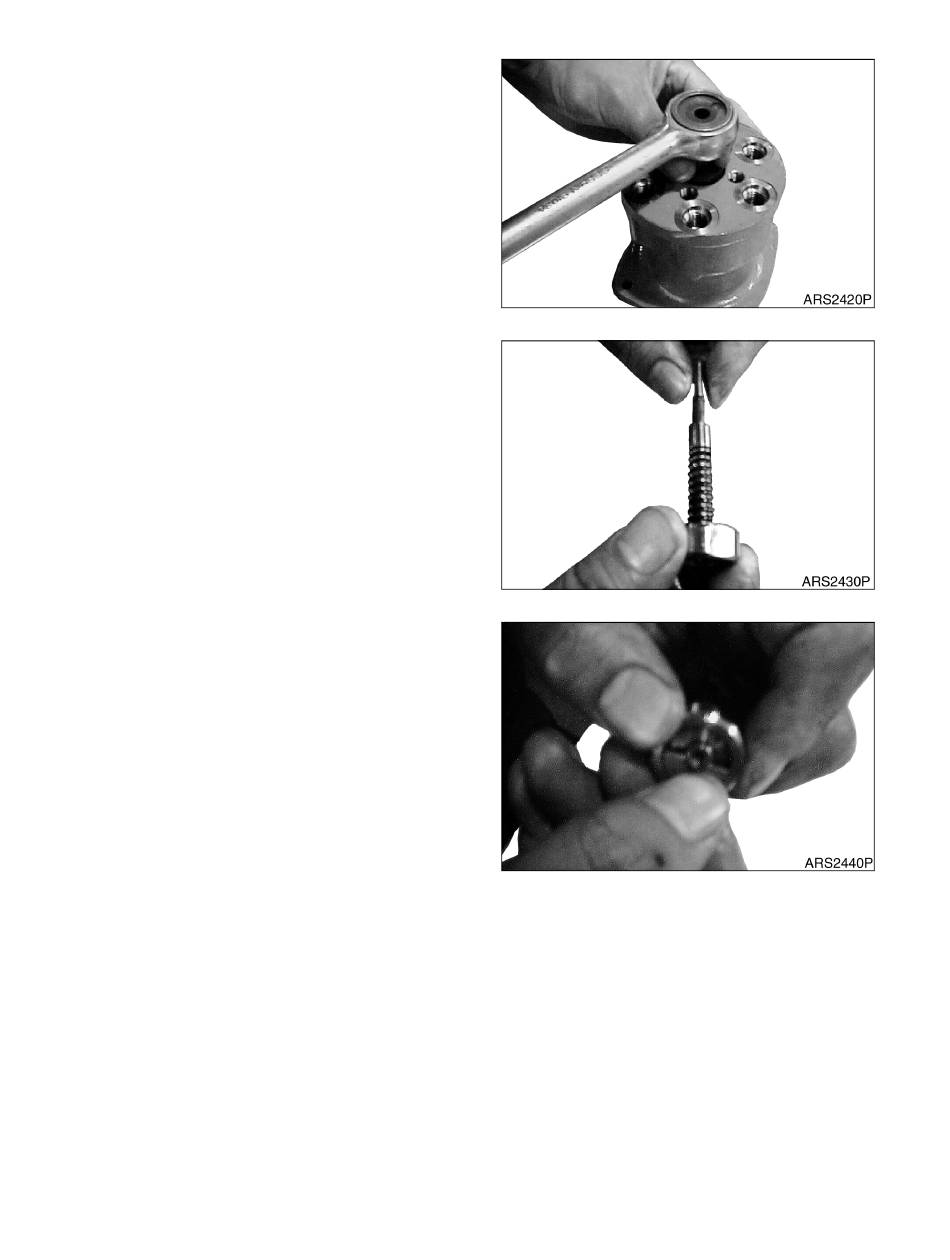

1. Tighten plug (3) slowly.
NOTE: Tightening torque: 350 kg•cm
(25.3 ft lb).
Tighten four plugs (2).
NOTE: Use Loctite #592 pipe sealant
on plugs.
NOTE: Tightening torque 150 kg•cm
(10.9 ft lb).
2. Install shim (7), spring (8), spring seat (9),
and spool (6).
3. Press spring (9) and install stopper (11).
S0709451K
Page 14
Figure 22
Figure 23
Figure 24
Pilot Control Valve (Work Lever / Joystick)
