3. Lift outer ring and check that inner ring can
move freely. See Figure 5, if not, replace
seal (3, Figure 4) and/or seal (4, Figure 4).
4. Turn inner ring and use magnet bar (1,
Figure 6) to remove steel balls (2).
5. Turn inner ring and use wire (1, Figure 7)
to remove retainers (2).
6. Assemble in reverse order of disassembly
and then adjust the gap between the steel
balls and retainers using the following
guidelines: Assemble steel ball, retainer
(A) and retainer (B) to bearing; if gap is too
wide, adjust by moving steel balls or by
replacing one of the retainers.
Swing Bearing

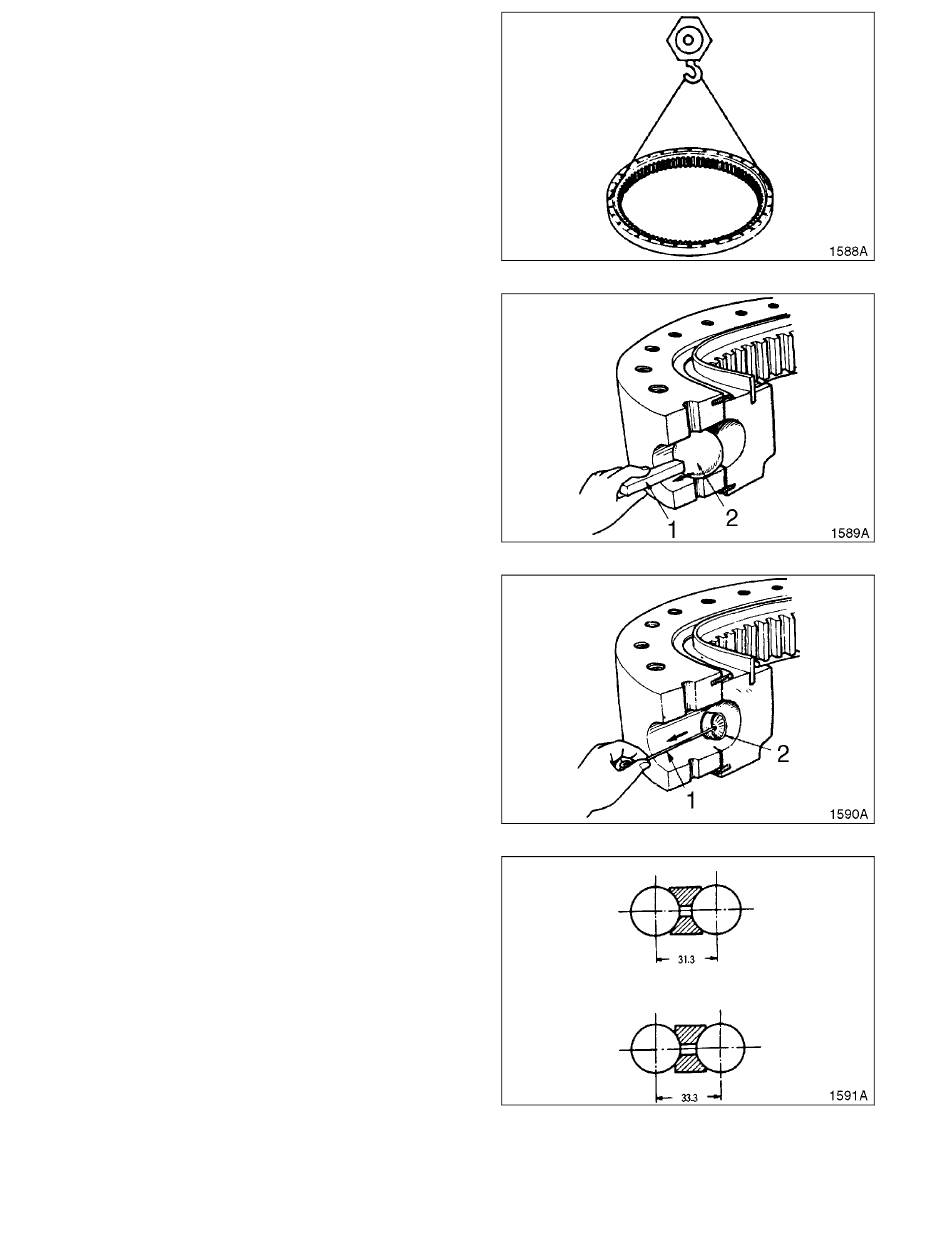

Figure 5
Figure 6
Figure 7
Figure 8
