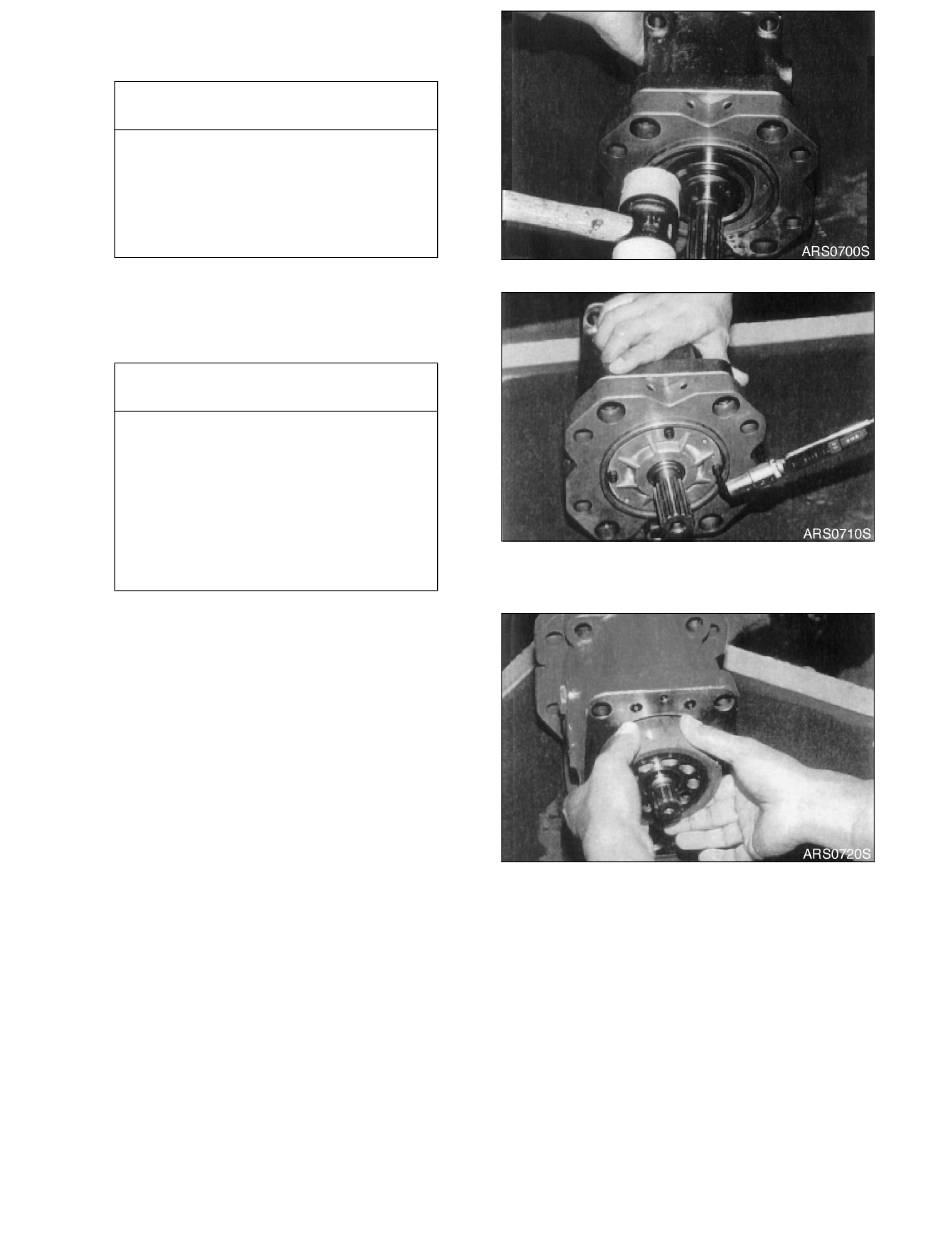

3. On swash plate support (251), install drive
shaft (111) with bearing (123), bearing
spacer (!27) and snap ring (824).
IMPORTANT
Do not tap drive shaft with hammer.
Assemble them into support, lightly
tapping outer race of bearing with
plastic hammer. Fully seat them,
using steel bar.
4. Assemble seal cover (F) (261) to pump
casing (271) and attach it with hexagon
socket head bolts (406).
IMPORTANT
Lightly apply grease to oil seal in
seal cover (F).
Assemble oil seal, taking full care
not to damage it.
For tandem type pump, install rear
cover (263) and seal cover (262) in
the same manner.
5. Assemble piston cylinder subassembly
(cylinder (141), piston subassembly (151,
152), set plate (153), spherical bushing
(156) and cylinder spring (157).
6. Fit spline phases of retainer and cylinder.
7. Then insert piston cylinder subassembly
into pump casing.
Main Pump (Kawasaki)
Figure 15
Figure 16
Figure 17
S0708315K
Page 23
