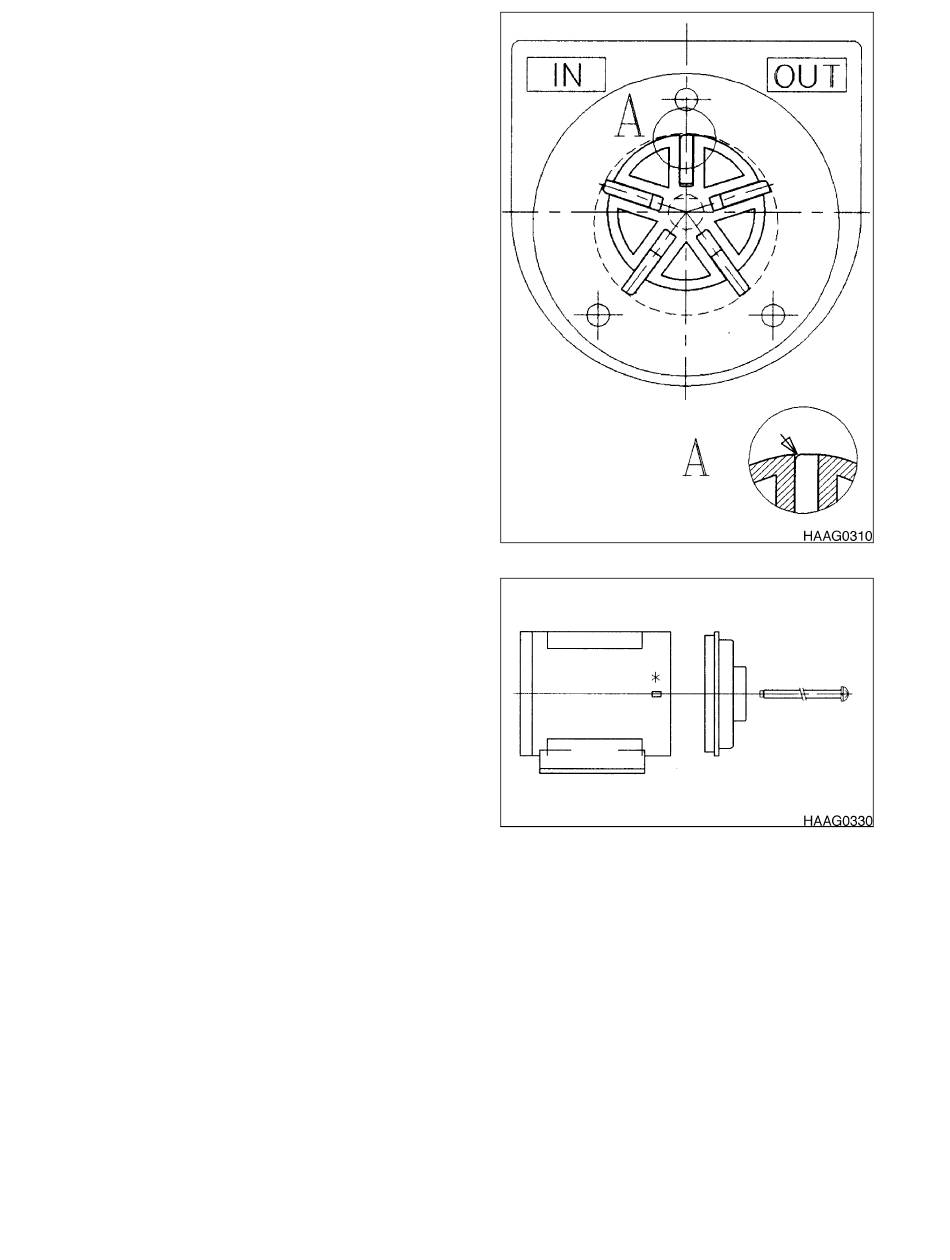

Insert vane, with the circled edge of vane facing
in the counterclockwise direction. (Detail A)
Insert O-ring again at reassembly of pump
cover.
REPLACEMENT OF
REAR COVER
Brush assembly and a thermal limiter are
installed in the rear cover. If you find any
damage, replace them with new ones.
Remove the switch cover and screw (M5 x L95)
from the rear cover.
Remove cover.
At reassembly of rear cover, widen the space of
brush and insert it to the armature. Then fit the
hole of screw in the housing.
Be careful when installing screw. The cover
screw may be attracted by the motor magnet.
Fuel Transfer Pump
Figure 6
Figure 7
