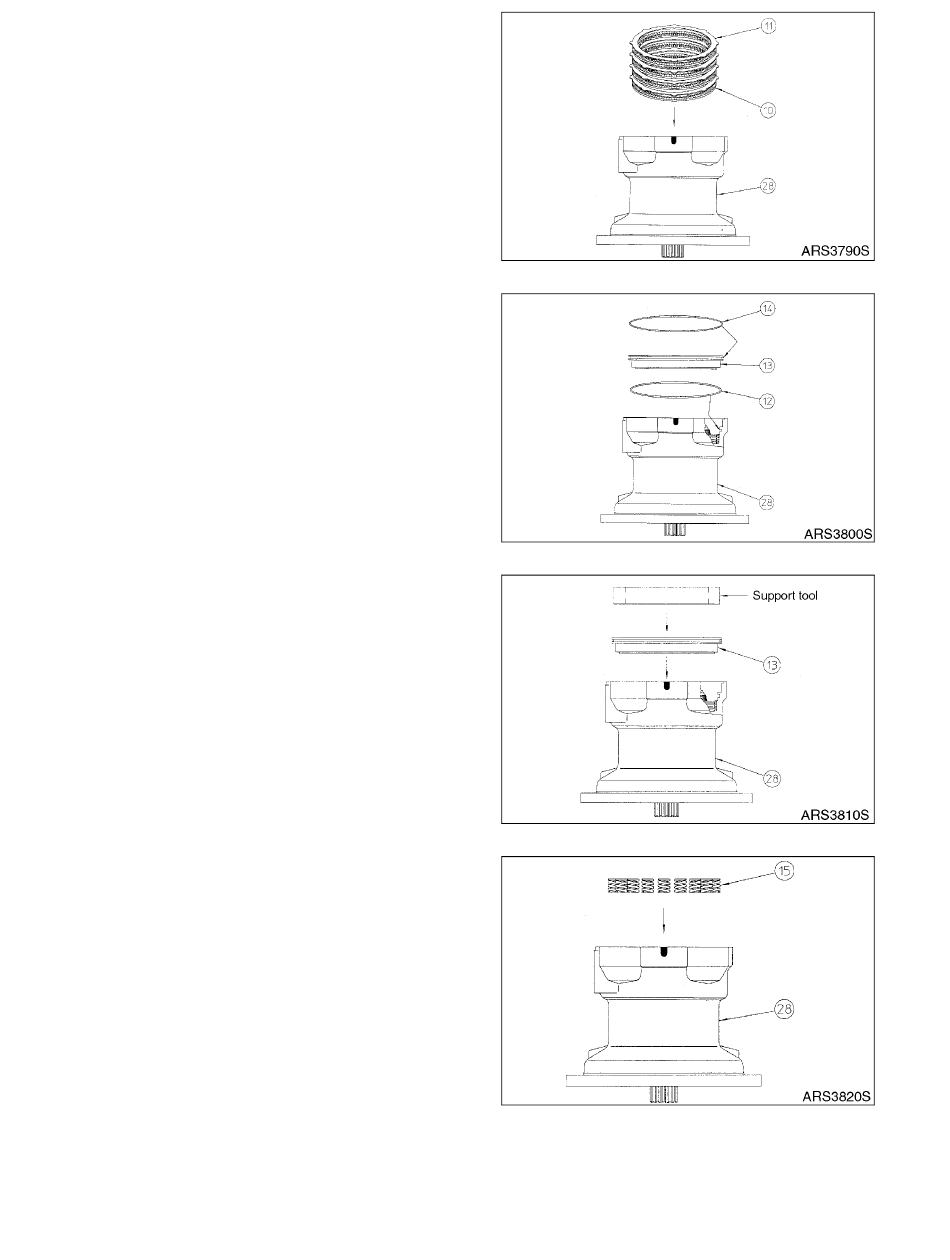

REASSEMBLY OF LINING PLATE AND
PLATE
1. Install lining plates (10) and plates (11).
NOTE: Apply hydraulic oil to both faces
of each plate.

REASSEMBLY OF O-RING

1. Install O-ring (12) on housing (28) and O-
ring (14) on piston (13).
NOTE: Apply grease to O-rings (12 and
14).

REASSEMBLY OF BRAKE PISTON

1. Apply hydraulic oil to the circumferential
sliding surface of piton (13) and install it to
housing (28).
NOTE: Since there is an interference
between piston (13) and O-
rings
installing piston (13), mount the
whole piston (13) horizontally
and push it into housing (28).

REASSEMBLY OF SPRING

1. Install spring (15) on piston (13) of brake.
NOTE: Install spring (15) in the original
position
disassembled before.
S0707270K
Page 28
(12 and 14), when
where it was
Figure 38
Figure 39
Figure 40
Figure 41
Swing Motor (Toshiba MFC200)
