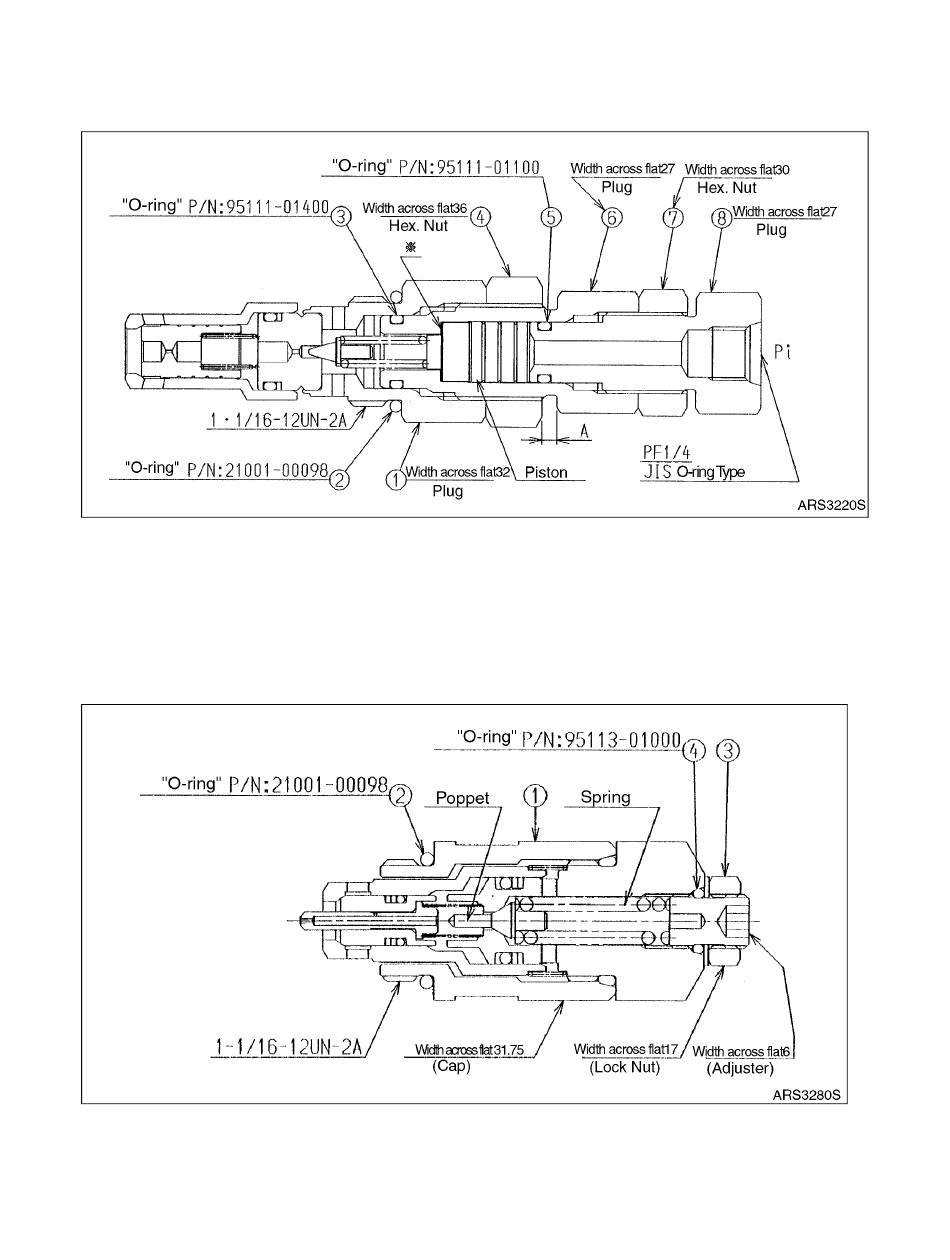

Disassembly of Main Relief Valve

This relief valve should be replaced as an assembly. When replacing it, remove plug (1, width across flats:
32 mm), and O-ring (2). If oil is leaking from nut (4), remove nut (4) and plug (1), and replace O-ring (3). If
oil is leaking from nut (7), remove nut (7) and plug (8), and replace O-ring (3).
Figure 51

Disassembly of Overload Relief Valve

This relief valve should be replaced as an assembly. When replacing it, remove plug (1, width across flats:
32 mm) and O-ring (2). If oil is leaking from nut (4), remove nut (4) and plug (1), and replace O-ring (3). If
oil is leaking from nut (7), remove nut (7) and plug (8), and replace O-ring (3).
Figure 52
S0709401K
Page 48
Main Control Valve (Kayaba)
