REPLACEMENT OF
ARMATURE
You can replace only the armature in case motor
was damaged by a short circuit.
Remove the switch cover and rear cover, than
remove the armature from the housing.
Remove the pump cover and remove the rotor
and vane.
Insert a new armature into the housing.

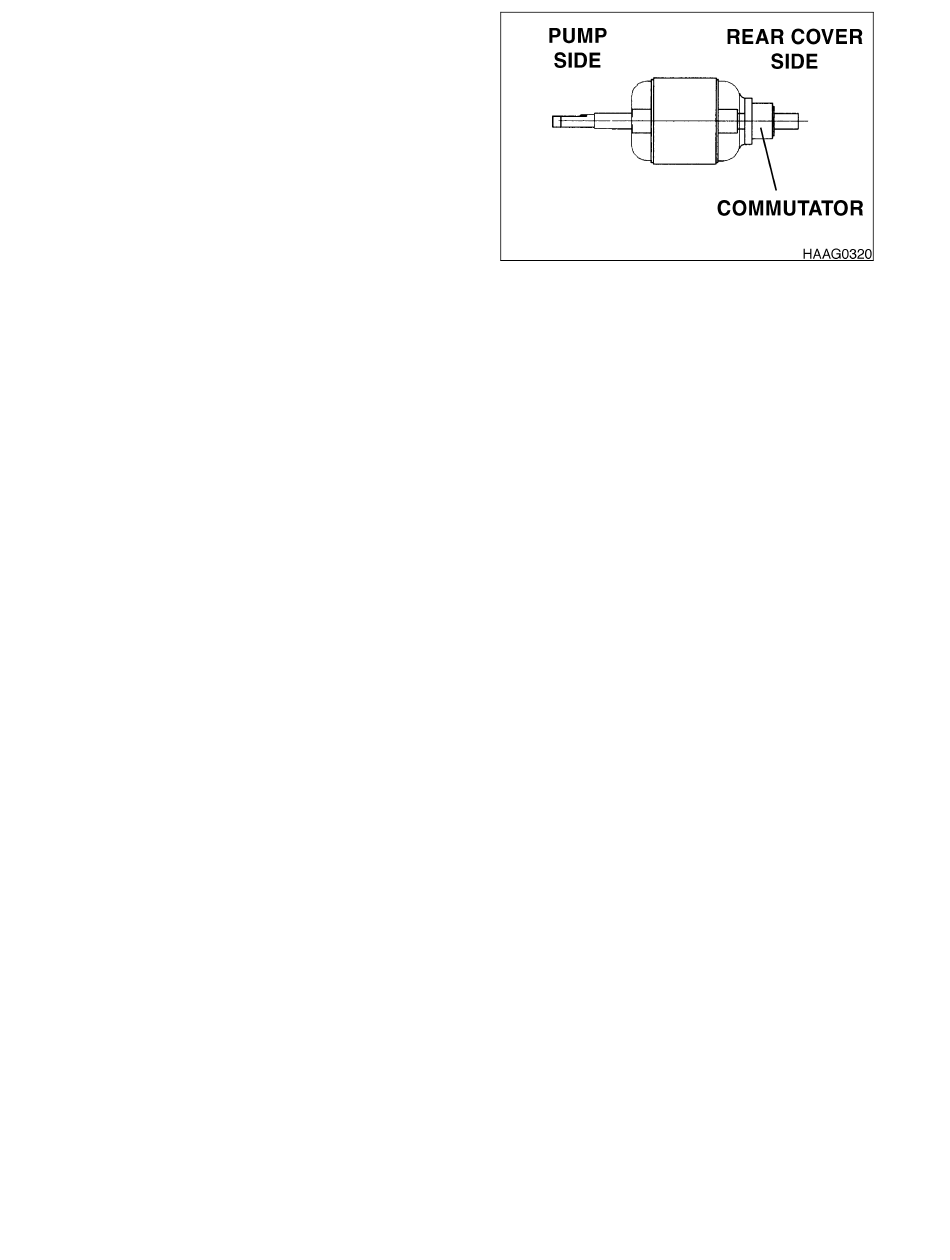

Figure 8
Refer to "Replacement of Rear Cover" on page
5, for installation of rear cover.
Fit the rotor in the shaft flute of armature. Insert
vane to the rotor being careful for the direction.
Refer to "Replacement of Rotor and Vane" on
page 4.
S0405500 Fuel Transfer Pump
Page 6
