2.1

Power Supply Setup

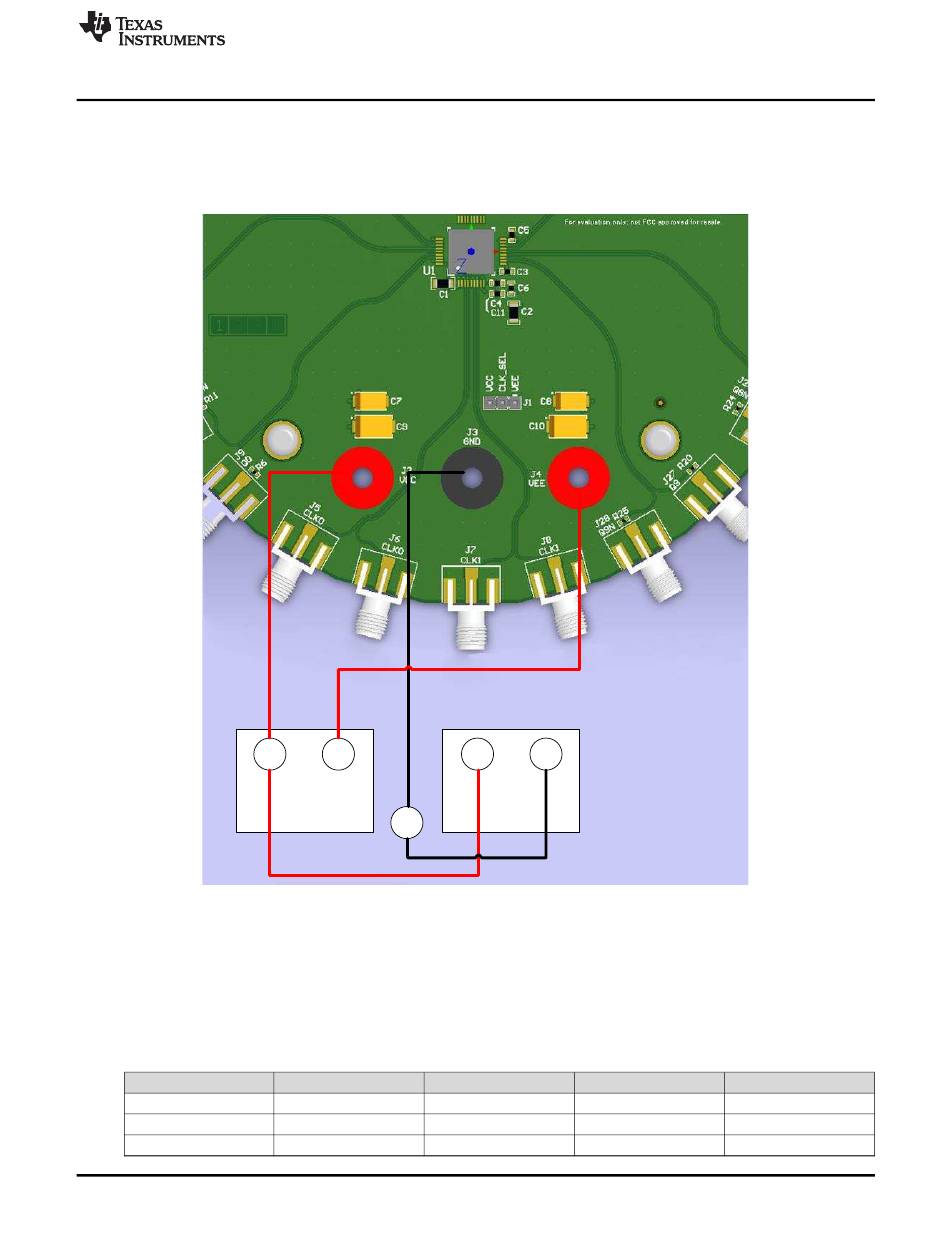

Figure 2 illustrates the necessary power connections for 3.3-V VCC-to-VEE operation.
• With supply 1 disabled, program supply 1 to 3.3 V with 100-mA current limit
• With supply 2 disabled, program supply 2 to 2 V with 100-mA current limit
(A) Connect supplies and board with banana cables as shown. This configuration is for nominal 3.3-V
testing. To configure other VCC-to-VEE voltages, program supply 1 to the proper range of 2.375 V to
3.8 V. Supply 2 remains fixed with 2-V offset from VCC to earth ground termination.
(B) With the signal generator disabled, program according to
Note, that the amplitudes and offsets are based on a single-ended signal.
Voltage
MIN
TYP
MAX
SCAU055 – November 2016
Submit Documentation Feedback
+ -
3.3 V
Supply 1
GND
Figure 2. Power Supply Connections
Table 1. Power Supply Configuration
VCC:VEE
2.375 V
3.3 V
3.8 V
Copyright © 2016, Texas Instruments Incorporated
CDCLVP111-SP Setup and Quick Test
+ -
2 V
Supply 2
Table 1 based on the supply voltage used.
VCC-GND CLK[0:1] amplitude
2 V 500 mV
2 V 500 mV
2 V 500 mV
CDCLVP111-SP Evaluation Module (CDCLVP111EVM-CVAL)
CLK[0:1] offset
0.625 V
–0.3 V
–0.8 V
