User's Guide
C2000
™
F28003x Series LaunchPad
The LAUNCHXL-F280039C is a low-cost development board for the Texas Instruments C2000™ Real-Time
Microcontroller series of F28003x devices. It is designed around the TMS320F280039C real-time MCU and
highlights the control, analog, and communications peripherals, as well as the integrated nonvolatile memory.
The LaunchPad also features two independent BoosterPack XL expansion connectors (80-pins), on-board
Controller Area Network (CAN) transceiver supporting both standard CAN (DCAN) and CAN-FD (MCAN), two
5 V encoder interface (eQEP) connectors, FSI connector, power-domain isolation, and an on-board XDS110
debug probe.

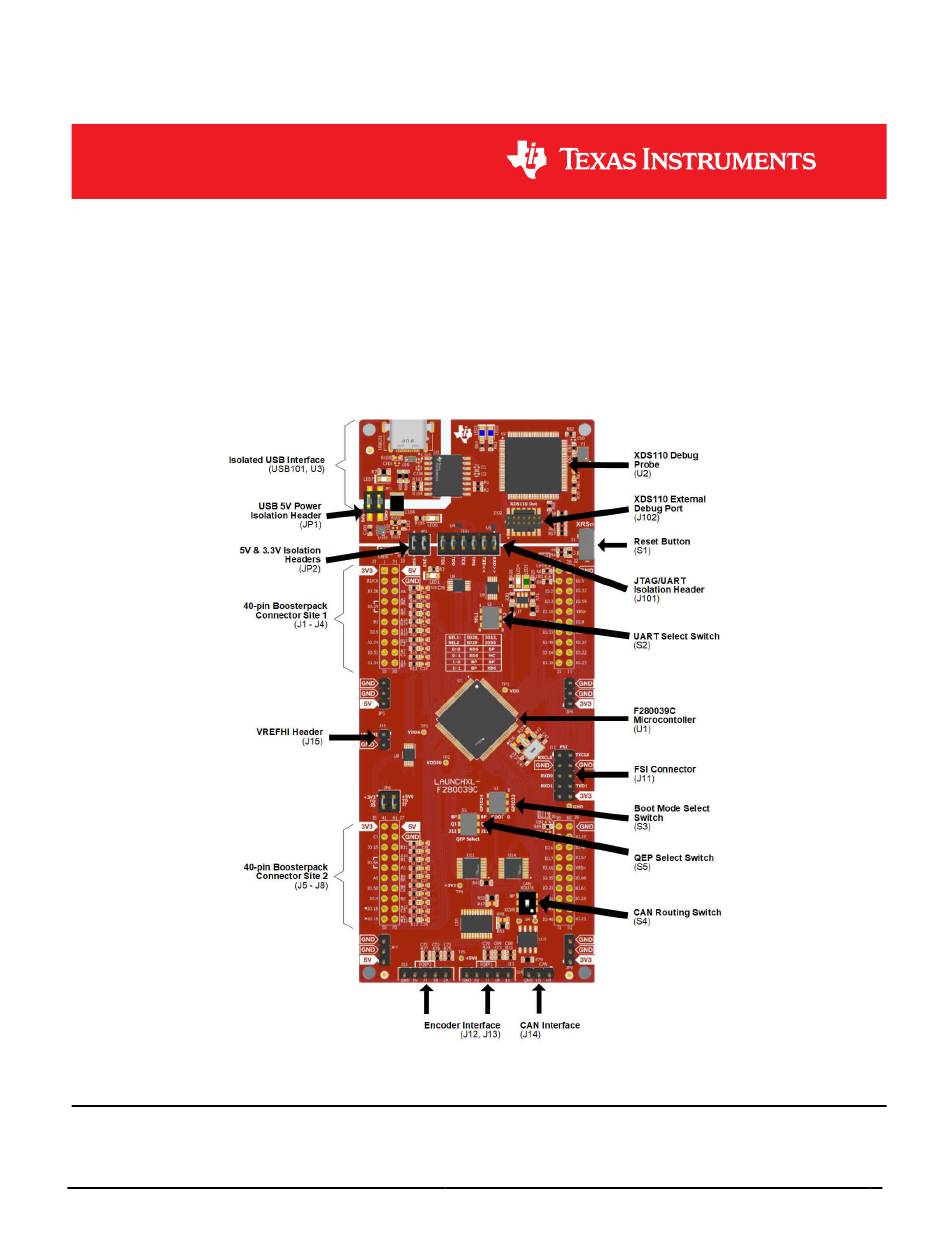

Figure 1-1
highlights the key features of the F28003x LaunchPad.
SPRUJ31 – APRIL 2022
Submit Document Feedback
ABSTRACT
Figure 1-1. F28003x LaunchPad Board Overview
Copyright © 2022 Texas Instruments Incorporated
™
Development Kit
C2000
™
F28003x Series LaunchPad
™
Development Kit
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments C2000 F28003x Series
Summary of Contents for Texas Instruments C2000 F28003x Series
-
Page 1: Figure 1-1. F28003X Launchpad Board Overview
Development Kit ABSTRACT The LAUNCHXL-F280039C is a low-cost development board for the Texas Instruments C2000™ Real-Time Microcontroller series of F28003x devices. It is designed around the TMS320F280039C real-time MCU and highlights the control, analog, and communications peripherals, as well as the integrated nonvolatile memory. -
Page 2: Table Of Contents
, and Code Composer Studio ™ are trademarks of Texas Instruments. All trademarks are the property of their respective owners. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 3: Board Overview
Board Overview 1 Board Overview 1.1 Kit Contents The F28003x Series LaunchPad Development Kit contains these items: • C2000 F28003x Series LaunchPad development board (LAUNCHXL-F280039C) • USB Type-A male to USB Type-C™ male cable • Pinout Map 1.2 Features The F28003x LaunchPad has these features: •... -
Page 4: Using The F28003X Launchpad
4. Customize and integrate the hardware to align to your end application. This development kit can be used as a reference for building your own custom boards and circuits based on C2000 F28003x series microcontrollers. The LaunchPad also functions as a foundation for expansion with custom BoosterPacks and other circuits. -
Page 5: Hardware Revisions
Digital Power SDK (C2000WARE-DIGITALPOWER-SDK) is targeted for digital power system development for various AC-DC, DC-DC and DC-AC power supply applications. ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 6: F28003X Launchpad Demo Program
After properly opening the serial port in your serial terminal, reset the LaunchPad by pressing the S1 reset button and observe the serial terminal to see the TI logo in ASCII art. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 7: Programming And Running Other Software On The F28003X Launchpad
4. Install Windows XDS110 and Virtual COM Port drivers if prompted. Installation instructions can be found at XDS110 Product Page. ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... - Page 8 10. Click 'Load Program' and select the program's binary to load. The binary will be loaded onto the device and can now be run and debugged. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
-
Page 9: Hardware Description
3.3-V 5-V Level Shifters CAN Transceiver eQEP Headers CAN Header Figure 3-1. F28003x LaunchPad Development Kit Block Diagram ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 10: Functional Description And Connections
Shunts to disconnect +5 V and/or +3.3 V between XDS110 and MCU sides Figure 3-2. LaunchPad Power Distribution Diagram ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 11: Figure 3-3. Launchpad Power Plane Diagram
LED driver IC and are connected in an active low configuration; that is, drive the GPIO low to turn on the LED and high to turn it off. These LEDs are dedicated for use by the software application. ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 12: Table 3-3. Boot Select Switch Table - S3
GPIO24 (LEFT) (RIGHT) Boot from Parallel GPIO Boot from SCI / Wait boot Boot from CAN Boot from Flash (default) ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... - Page 13 JP8 and there will be no contention between the two BoosterPacks. ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
-
Page 14: Debug Interface
COM port. When UART functionality is not needed at the virtual COM port, the GPIOs can be routed to the BoosterPack connectors for BoosterPack standard functions. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 15: Table 3-4. Sci Uart Select Table - S2
If GPIO19 functionality is needed at the BoosterPack Connector: 1. Remove R33 to separate GPIO19 from Y2. 2. Populate R37 to connect GPIO19 to the BoosterPack connector. ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 16: Board Design
Schematic. 4.2 PCB Layout The layout source files for the LAUNCHXL-F280039C are included in the LAUNCHXL-F280039C design files download. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 17: Figure 4-1. Top Signal - Layer 1
Board Design Figure 4-1. Top Signal - Layer 1 ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 18: Figure 4-2. Gnd - Layer 2
Board Design www.ti.com Figure 4-2. GND - Layer 2 ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 19: Figure 4-3. Pwr - Layer 3
Board Design Figure 4-3. PWR - Layer 3 ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 20: Bom
Figure 4-4. Bottom Signal - Layer 4 4.3 BOM The BOM for the LAUNCHXL-F280039C is included in the LAUNCHXL-F280039C design files download. ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 21: Launchxl-F280039C Board Dimensions
F28003x LaunchPad that shows the location of selected features of the board as well as the component locations. Figure 4-5. F28003x LaunchPad Dimensions and Component Locations ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 22: Frequently Asked Questions
Scan Format as OSCAN2 format. Alternately, a working Target configuration file is included in the launcxl_ex1_F280039C_demo project "TMS320F280039C_LaunchPad.ccxml". You can use this without modifications. Figure 5-1. Target Configuration Advanced Options ™ ™ C2000 F28003x Series LaunchPad Development Kit SPRUJ31 – APRIL 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 23: References
Application Specific Designs & Evaluation with C2000 Real-Time Microcontrollers • C2000WARE Quick Start Guide • Texas Instruments Code Composer Studio • Texas Instruments LaunchPad Development Environment ™ ™ SPRUJ31 – APRIL 2022 C2000 F28003x Series LaunchPad Development Kit Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... -
Page 24: Other Ti Components Used In This Design
