Summary of Contents for Texas Instruments LAUNCHXL-F28027
- Page 1 LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit User's Guide Literature Number: SPRUHH2A July 2012 – Revised January 2014...
-
Page 2: Table Of Contents
Installation ..................Download the Required Software ...................... Install the Software ..................... Install the Hardware ................Getting Started with the LAUNCHXL-F28027 ......................Getting Started ............Demo Application, Internal Temperature Measurement ........Program and Debug the Temperature Measurement Demo Application ....................... Hardware Configuration ...................... - Page 3 LAUNCHXL-F28027 PCB Layout—Silkscreen Image List of Tables ..............C2000 LaunchPad Pin Out and Pin Mux Options ................... LAUNCHXL-F28027 Bill of Materials SPRUHH2A – July 2012 – Revised January 2014 List of Figures Submit Documentation Feedback Copyright © 2012–2014, Texas Instruments Incorporated...
-
Page 4: Launchxl-F28027 Overview

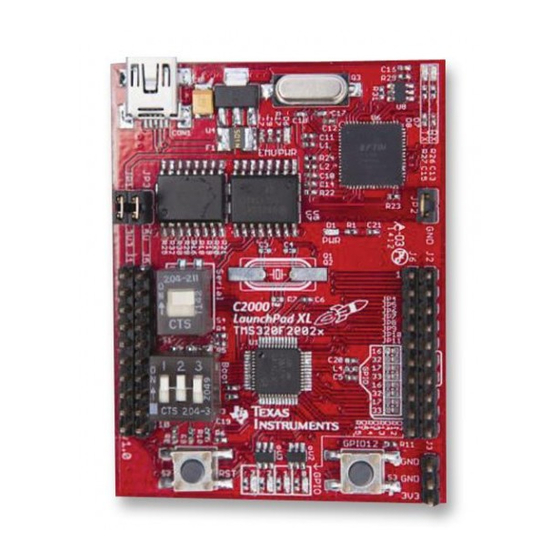

Overview The C2000™ Piccolo™ LaunchPad™, LAUNCHXL-F28027, is a complete low-cost experimenter board for the Texas Instruments Piccolo F2802x devices. The LAUNCHXL-F28027 kit features all the hardware and software necessary to develop applications based on the F2802x microprocessor. The LaunchPad is based on the superset F28027 device, and easily allows users to migrate to lower cost F2802x devices once the design needs are known. -
Page 5: Kit Contents
• Quick Start Guide Revisions The first production revision of the LAUNCHXL-F28027 C2000 Piccolo LaunchPad, version 1.0, was released in July of 2012 and is currently the only revision available. Installation The C2000 LaunchPad installation consists of three easy steps: 1. -
Page 6: Install The Software
USB host. If your board does not start the demo application, try placing S1 in the following positions and resetting the board: UP - UP - DOWN. To start the demo, connect the LAUNCHXL-F28027 with the included mini-USB cable to a free USB port. The demo application starts with the LEDs flashing to show the device is active. -
Page 7: Power Domain
Ground Serial Connectivity The LAUNCHXL-F28027 has a USB to UART adapter built in. This makes it easy to print debug information back to the host PC even in isolated environments. However, in some cases the user may wish to connect the Piccolo SCI peripheral (C2000 UART peripheral) to a BoosterPack or other hardware via the header pins. -
Page 8: Device Migration Path
LAUNCHXL-F28027 Hardware www.ti.com Device Migration Path Applications developed on the LAUNCHXL-F28027 can easily be migrated to any of these lower cost devices in the F2802x family: Part Number Description TMS320F28027 32-bit Real Time Microcontroller, 60 MHz, 32K Flash, 6K RAM, 4 HRPWM... -
Page 9: Schematics
PWREN# P$36 SUSPEND# SUSPEND# FT2232H Emulator - XDS100v2 C2000_LaunchPad.sch Figure 2. C2000 LaunchPad Schematic—Sheet 1 of 2 SPRUHH2A – July 2012 – Revised January 2014 LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit Submit Documentation Feedback Copyright © 2012–2014, Texas Instruments Incorporated... -
Page 10: C2000 Launchpad Schematic-Sheet 2 Of
ADCINB3 RESET# GPIO12 ADCINB2 ADCINB7 FSMJSMA FSMJSMA ADCINB4 C2000_LaunchPad.sch Figure 3. C2000 LaunchPad Schematic—Sheet 2 of 2 LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit SPRUHH2A – July 2012 – Revised January 2014 Submit Documentation Feedback Copyright © 2012–2014, Texas Instruments Incorporated... -
Page 11: Pcb Layout
Figure 5, and Figure 6 show the LAUNCHXL-F28027 PCB layout. Figure 4. LAUNCHXL-F28027 PCB Layout—Top Layer Figure 5. LAUNCHXL-F28027 PCB Layout—Bottom Layer Figure 6. LAUNCHXL-F28027 PCB Layout—Silkscreen Image SPRUHH2A – July 2012 – Revised January 2014 LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit Submit Documentation Feedback Copyright ©... -
Page 12: Bill Of Materials (Bom)
LAUNCHXL-F28027 Hardware www.ti.com Bill of Materials (BOM) Table 2 lists the LAUNCHXL-F28027 bill of materials. Table 2. LAUNCHXL-F28027 Bill of Materials Quantity Reference Board Description RES 330 Ω 1/10W 5% 0402 SMD R12, R13, R14, R15, R26, R27 RES 820 Ω 1/10W 5% 0402 SMD... -
Page 13: Suggested Reading
TMS320C28x Optimizing C/C++ Compiler v6.1 User's Guide (SPRU514) • TMS320C28x Assembly Language Tools v6.1 User's Guide (SPRU513) SPRUHH2A – July 2012 – Revised January 2014 LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit Submit Documentation Feedback Copyright © 2012–2014, Texas Instruments Incorporated... -
Page 14: Frequently Asked Questions (Faq)
For information on how to do this, see the TMS320x2802x, 2803x Piccolo Serial Communications Interface (SCI) Reference Guide (SPRUGH1). LAUNCHXL-F28027 C2000 Piccolo LaunchPad Experimenter Kit SPRUHH2A – July 2012 – Revised January 2014 Submit Documentation Feedback... -
Page 15: Important Notice
IMPORTANT NOTICE Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. - Page 16 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Texas Instruments LAUNCHXL-F28027...
