- Page 1 Fusion5 ™ 3G - 4G Home or Office Five-Band Signal Booster Kit User Guide...
-
Page 2: Table Of Contents
6,000 square feet. The Fusion5 provides enhanced cellular signals for multi-carrier 2G, 3G and 4G voice and data reception If you have any questions while assembling this kit please contact tech support at 1-888-365-6283 or email us at: support@surecall.com. -
Page 3: How It Works
How It Works SureCall’s Fusion5 is a high-quality bidirectional signal booster that enhances cellular signals to areas that are prone to weak cellular coverage. Fusion5 works with two or more antennas: • Up to four inside antennas that communicate with your cell phone. -
Page 4: Package Contents
Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Please contact the FCC for details: 1-888-CALL- FCC. Changes or modifications not expressly approved by SureCall could void the user’s authority to operate the equipment. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 5 Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 6: Installation Overview
See page 12-13 for directions if needed) Step 5. Configure gain settings on the signal booster if needed. (See page 14 for directions as needed) Outside Omni Outside Omni Fusion5 Inside Domes SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 7: Installing Your Hardware
Where you install your outside antenna in relation to the carrier’s cell phone tower also determines signal strength. Although cell phone carriers try to place towers for maximum coverage, local ordinances and terrain features can restrict tower locations, which can limit signal strength at your location. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 8: Installing The Outside Anntenna
1710 - 1755 MHz uplink 2110 - 2155 downlink bands, the users or installation manual must contain the 30 foot height restriction requirements per FCC 27.50(d)(4). SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 9 Installing Your Hardware Fusion5’s omni antennas come with equipment for mounting on a vertical wall. For best results the antenna should be mounted in an upright position. Step 1: Unscrew antenna from L-mounting bracket on antenna base with hands, or wrench, if needed.
-
Page 10: Installing The Insides Anntenna
INSIDE (see page 13 4. Hand tighten the connection. Optional 1- Inside Dome Fusion5 Optional 2 - Inside Panel Note: see next page for outside antenna installation details. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 11 Step 4: Tighten fixing nut to secure antenna (do not over-tighten). • Storage and transportation: Store and place in non-extreme room-temperature and dry environment • Attention: This antenna should not be used near open fire or flame SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
-
Page 12: Installing Signal Booster

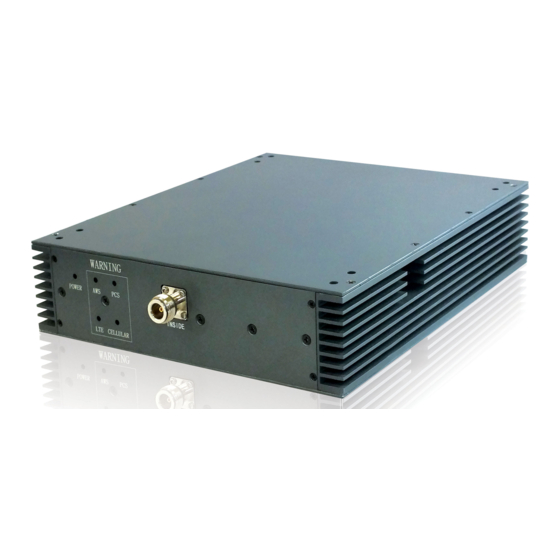

6. Connect the AC power cord to the signal booster. 7. Connect the plug on the other end of the 110V AC power outlet. 8. Turn the booster’s power switch on. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... - Page 13 Installing your Hardware Booster Hardware The following image shows the key hardware components on the cellullar booster. Refer to this image as you install your Fusion5 kit components. N connector to outside antenna Programmer Power LED Alert LED Power Switch...
-
Page 14: Configure Gain Setting
3. Be sure your signal booster’s dB gain is turned up to maximum gain on each dial. WARNING: Do not adjust the uplink and downlink dB attenuation settings more than 20dB. This could cause the booster to shut down SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 15: Troubleshooting
The Power LED does not Be sure the AC outlet is working and is not controlled by a wall turn ON switch that can cut power to the outlet. SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 16: Specification
SC-400 RF Connectors: N Female (both ends ) Power Consumption: <50W Operation Temperature: -4ºF to +158ºF Dimensions: 10” x 9” x 2.25” Weight: 9.5 lbs FCC (USA): RSNFUSION-5 SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com... -
Page 17: Kitting Information
*All equivalent antennas and cables are suitable for use with the Fusion5 booster. Note: Due to the recent change of our company name from Cellphone-Mate (CM) to SureCall (SC) we have changed the prefix on all of our antennas, cables and accessories from CM to SC-. -
Page 18: Warranty
SureCall warrants to the Buyer that each of its products, when shipped, will be free from defects in material and workman- ship, and will perform in full accordance with applicable specifications. The limit of liability under this warranty is, at SureCall’s... -
Page 19: Safety Information
SureCall has made a good faith effort to ensure the accuracy of the information in this document and disclaims the implied warranties of merchantability and fitness for a particular purpose and makes no express warranties, except as may be stated in its written agreement with and for its customers.SureCall shall not be held liable to anyone for any indirect, special or consequential damages due to omissions or... - Page 20 • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SureCall | 48346 Milmont Dirve, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com SureCall | 48346 Milmont Drive, Fremont CA 94538 | 1-888-365-6283 | sales@surecall.com...
