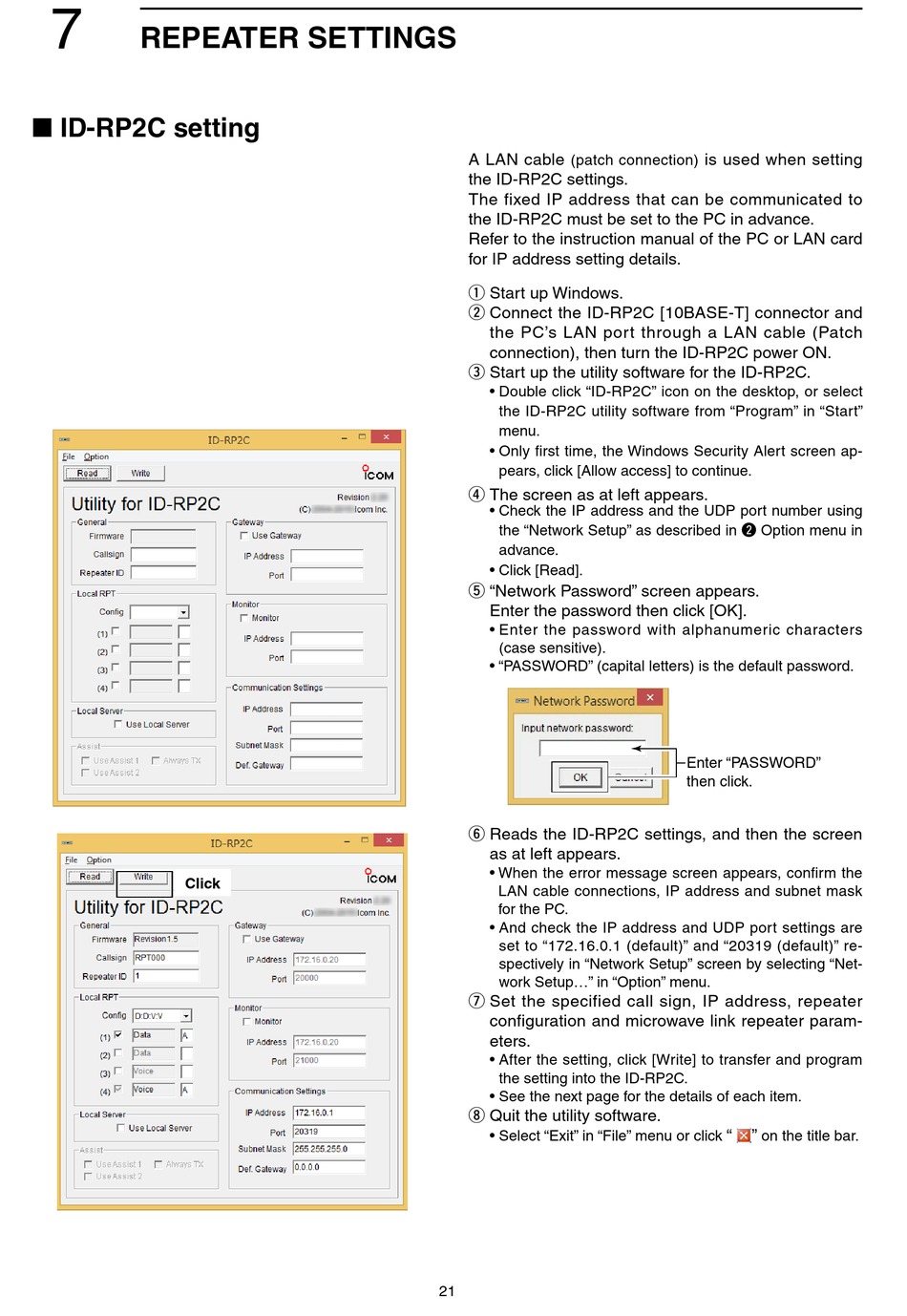

REPEATER SETTINGS
■ ID-RP2C setting
Click
A LAN cable
(patch connection)
the ID-RP2C settings.
The fixed IP address that can be communicated to
the ID-RP2C must be set to the PC in advance.
Refer to the instruction manual of the PC or LAN card
for IP address setting details.
q Start up Windows.
w Connect the ID-RP2C [10BASE-T] connector and
the PC's LAN port through a LAN cable (Patch
connection), then turn the ID-RP2C power ON.
e Start up the utility software for the ID-RP2C.
• Double click "ID-RP2C" icon on the desktop, or select
the ID-RP2C utility software from "Program" in "Start"
menu.
• Only first time, the Windows Security Alert screen ap-
pears, click [Allow access] to continue.
r The screen as at left appears.
• Check the IP address and the UDP port number using
the "Network Setup" as described in w Option menu in
advance.
• Click [Read].
t "Network Password" screen appears.
Enter the password then click [OK].
• Enter the password with alphanumeric characters
(case sensitive).
• "PASSWORD" (capital letters) is the default password.
y Reads the ID-RP2C settings, and then the screen
as at left appears.
• When the error message screen appears, confirm the
LAN cable connections, IP address and subnet mask
for the PC.
• And check the IP address and UDP port settings are
set to "172.16.0.1 (default)" and "20319 (default)" re-
spectively in "Network Setup" screen by selecting "Net-
work Setup..." in "Option" menu.
u Set the specified call sign, IP address, repeater
configuration and microwave link repeater param-
eters.
• After the setting, click [Write] to transfer and program
the setting into the ID-RP2C.
• See the next page for the details of each item.
i Quit the utility software.
• Select "Exit" in "File" menu or click
21
is used when setting
Enter "PASSWORD"
then click.
"
"
on the title bar.
