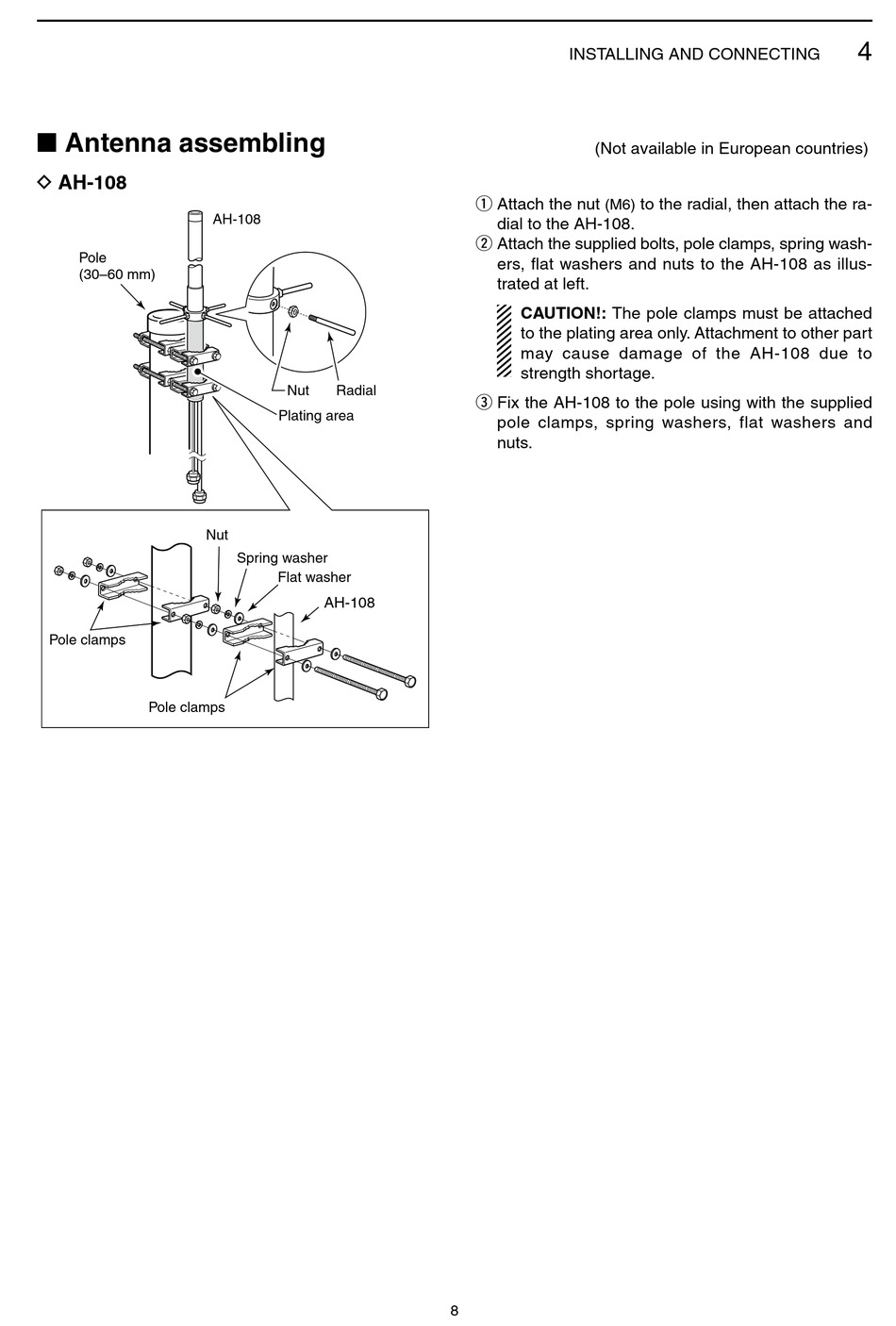

■ Antenna assembling

D AH-108

Pole
(30–60 mm)

Pole clamps

Pole clamps
AH-108
Nut Radial
Plating area
Nut
Spring washer
Flat washer
AH-108
INSTALLING AND CONNECTING
(Not available in European countries)
q Attach the nut
(M6)
dial to the AH-108.
w Attach the supplied bolts, pole clamps, spring wash-
ers, flat washers and nuts to the AH-108 as illus-
trated at left.
CAUTION!: The pole clamps must be attached
to the plating area only. Attachment to other part
may cause damage of the AH-108 due to
strength shortage.
e Fix the AH-108 to the pole using with the supplied
pole clamps, spring washers, flat washers and

nuts.

8
to the radial, then attach the ra-
4
