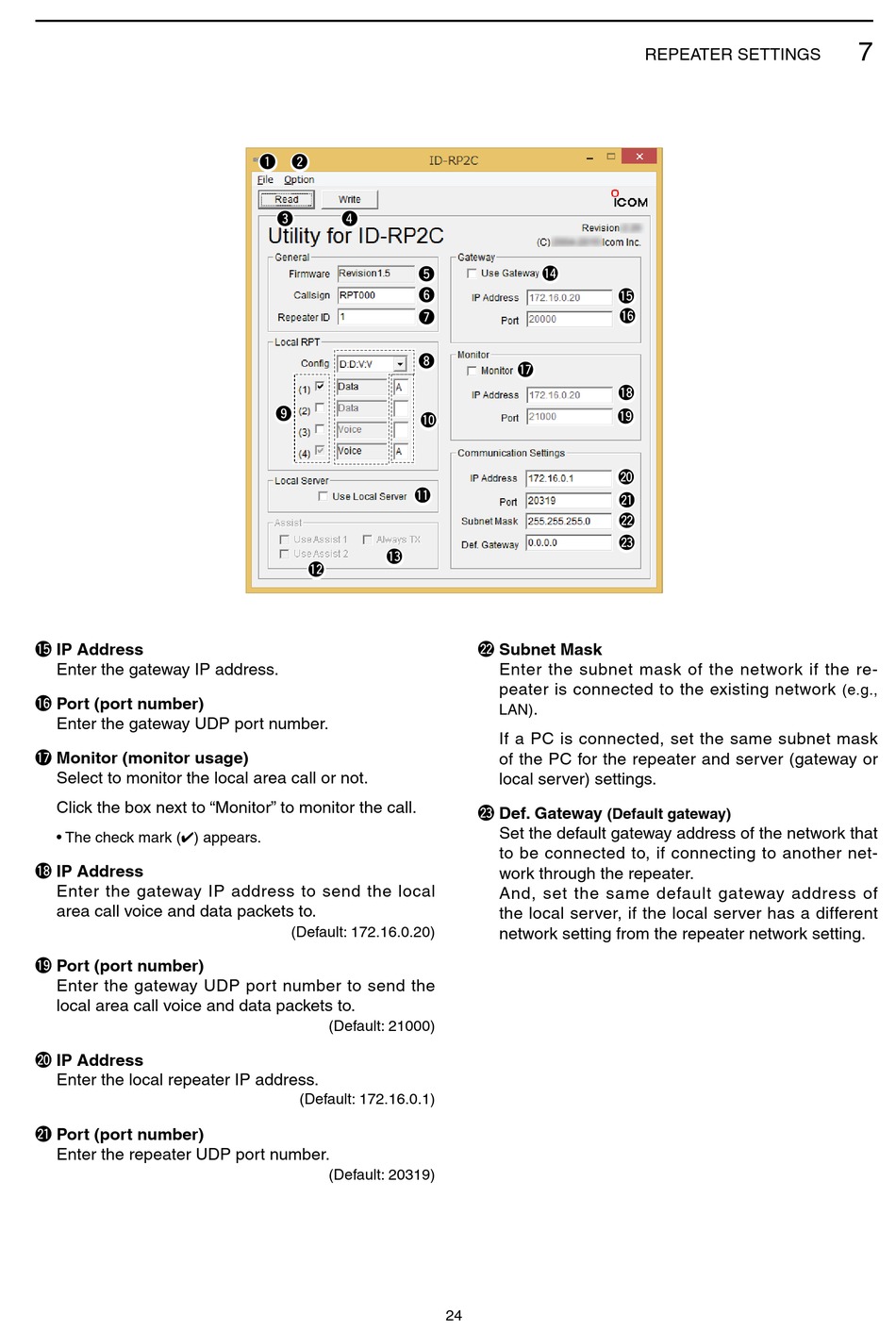

Icom ID-RP2C Instruction Manual page 27

!5 IP Address
Enter the gateway IP address.
!6 Port (port number)
Enter the gateway UDP port number.
!7 Monitor (monitor usage)
Select to monitor the local area call or not.
Click the box next to "Monitor" to monitor the call.
• The check mark (4) appears.
!8 IP Address
Enter the gateway IP address to send the local
area call voice and data packets to.
!9 Port (port number)
Enter the gateway UDP port number to send the
local area call voice and data packets to.
@0 IP Address
Enter the local repeater IP address.
@1 Port (port number)
Enter the repeater UDP port number.
q q
q w
q e q r
q t
q y
q
u
q i
q o
q
! 0
q
! 1
q ! 3
q
! 2
(Default: 172.16.0.20)
(Default: 21000)
(Default: 172.16.0.1)
(Default: 20319)
q ! 4
q
! 7
@2 Subnet Mask
Enter the subnet mask of the network if the re-
peater is connected to the existing network
.
LAN)
If a PC is connected, set the same subnet mask
of the PC for the repeater and server (gateway or
local server) settings.
@3 Def. Gateway
(Default gateway)
Set the default gateway address of the network that
to be connected to, if connecting to another net-
work through the repeater.
And, set the same default gateway address of
the local server, if the local server has a different
network setting from the repeater network setting.
24
REPEATER SETTINGS
q
! 5
q
! 6
q ! 8
q ! 9
q
@0
q
@1
q
@2
q @3
7
