Step 3: To adjust the depth of the mounting rail for specific applications, remove the M6 thread forming screws and lockwashers, move the rail
to the desired position and re-install mounting hardware.

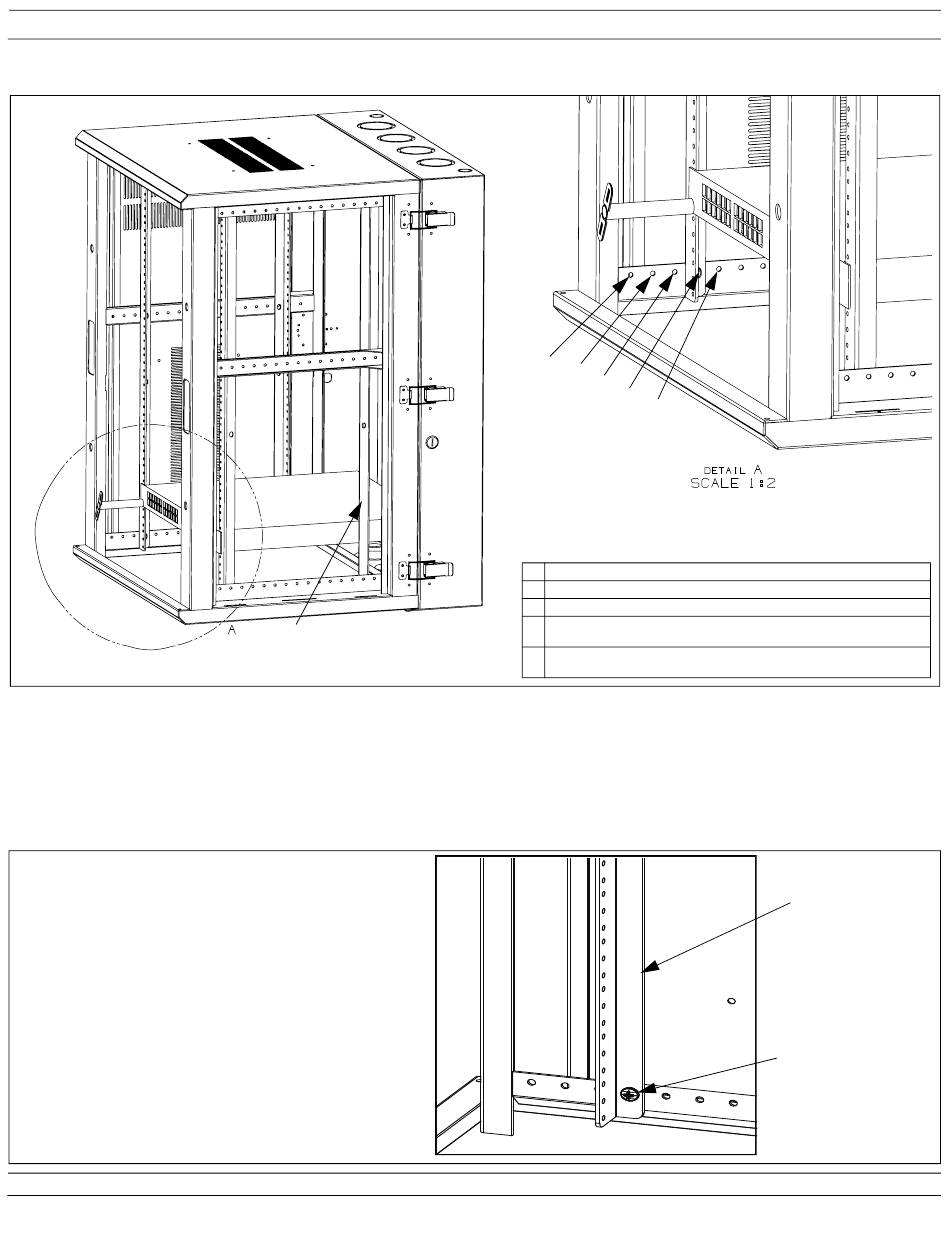

Mounting Rail Installation (PZWMC12RR)
To install mounting rail use (2) M6 thread forming
screws & lockwashers at desired location as shown
below
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTRUCTIONS CM315E
PZWMC18RR
Rear Rails
Page 3 of 11
1
2
3
4
5
1 For PZMWCGK Cabinet Jumper Grounding Kit Only
2 Recommended for direct 1:1 switch patching only
3 Recommended for direct 1:1 switch patching only
4 Default Rail Location: Recommended for traditional patching with
small gauge patch cord, Use PZBR3 or PZBR3.5 Bend Radius Posts
5 Recommended for traditional patching with standard patch cords. Use
PZBR4 Bend Radius Posts.
Mounting Rail
Mounting Hardware
