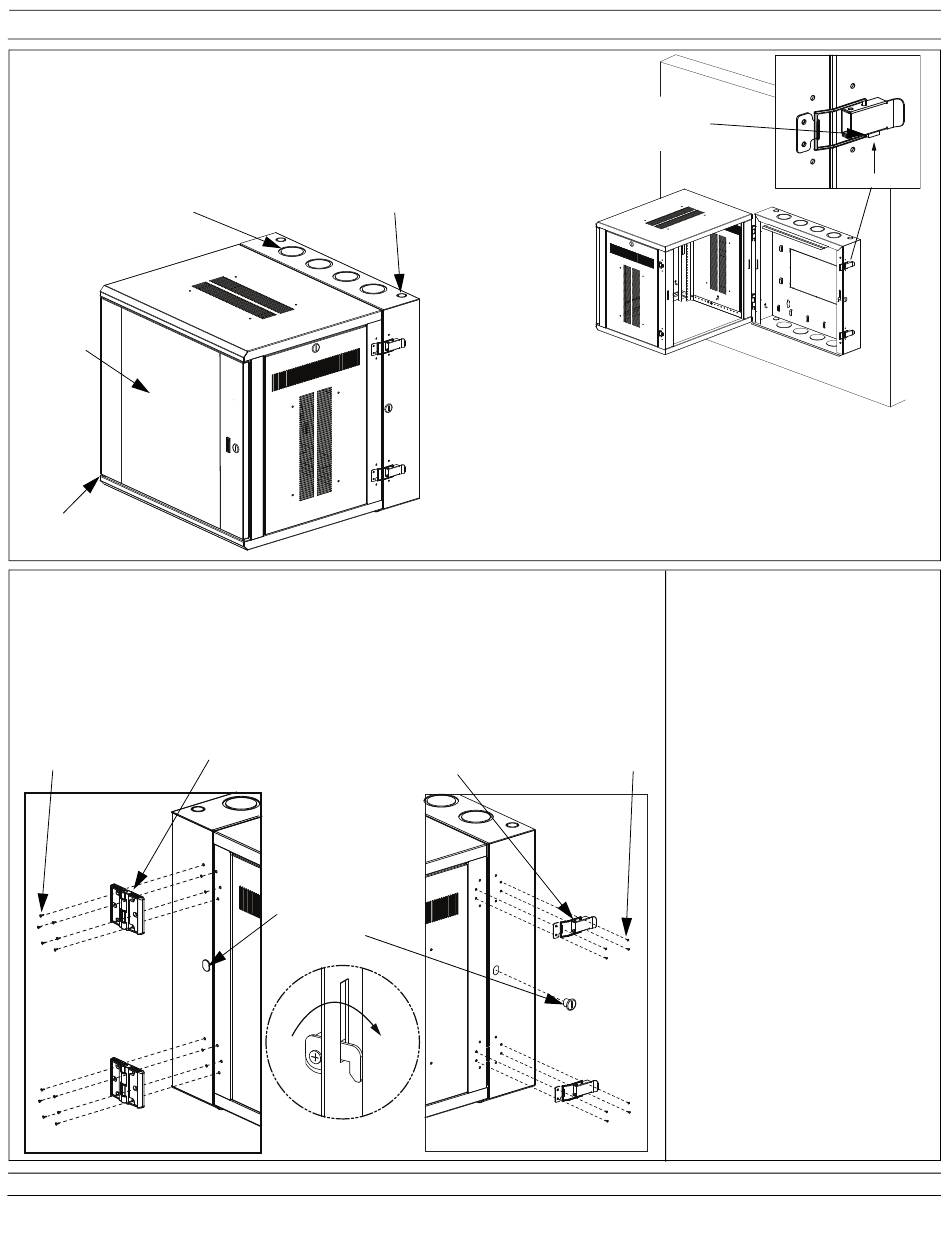

P Z Wall Mount Cabinets can be installed in a hinged right or hinged left
AN ONE
application. For your installation, determine which side of the cabinet will hinge.
The cabinet is shown hinged left. Mounting surface must have sufficient
strength to support the cabinet with payload. The mounting surface must also
be flat and extend beyond the overall cabinet footprint.
2" or 2 1/2" Conduit Knockout
Front Door
with Lock
Plastic
Step 2:
To reverse rear hinge direction.
Open cabinet, and remove the latch from the rear lock. Remove the rear lock and the
lock hole grommet on the opposite side. Close the cabinet and remove decorative covers
on hinges. Remove the thread forming screws & lockwashers from the hinges (M5), and
latches (M4), and re-install the components on the opposite sides of the cabinet. Open
the cabinet and re-install the lock and grommet on the opposite sides. Re-assemble the
lock latch, ensuring it locks in the downward rotation (see below).
M5 Thread forming
Hinge
screws & lock-
washers
1/2" or 3/4" Conduit Knockout
Lock Hole
Grommet
Lock
Lock in downward
rotation
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTRUCTIONS CM315E
Step 1:
Remove door and side panels for ease of handling. Ensure rear latches are
closed. Install (4) 3/8" mounting hardware (not provided) as shown in Location
Footprint. Hardware should protrude 3/8" from wall. Mount the cabinet to the
wall by hooking the keyholes over the protruding 3/8" mounting hardware.
Once the cabinet is in place, carefully swing cabinet from wall and tighten the
hardware securely. Re-install door and side panels. Door swing direction can
be changed by rotating the door 180°. Ensure the plastic spacer is placed at
the bottom of the door hinge.
M4 Thread forming
Latch
Page 2 of 11
To open cabinet,
push latch release
button to dis-engage
latch.
screws
