© Panduit Corp. 2024
Contents:
1 – Enclosure
1 – Aluminum Mounting Plate
1 – Mounting Template
1 – Hardware Kit
-
(2) Adhesive Mounting Clips
-
(1) RTV Silicone Sealant Pack
-
(6) # 10-32 x 3/8" Screws
-
(2) # 6-32 x 1/4" Screws
-
(1) UTP MINI-COM TX6 Plus Jack
Module
-
(1) 2 Position Surface Mount Box
-
(2) UTP 2' CAT 6 Patch Cord
-
(4) Cable Ties
Note: Installer should use the following assembly instructions as a guideline to mount desired Wireless Access Point (WAP), External Antennas,
and Powering Device.
Assembly Instructions
1.
Use the supplied Mounting Template as a guide to locate the hole locations required on the Aluminum Mounting Plate.
Supplied Mounting Template
PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure
ASSEMBLY INSTRUCTIONS
:
For Technical Support:
Page 1 of 4
Part Number: PZNWE14

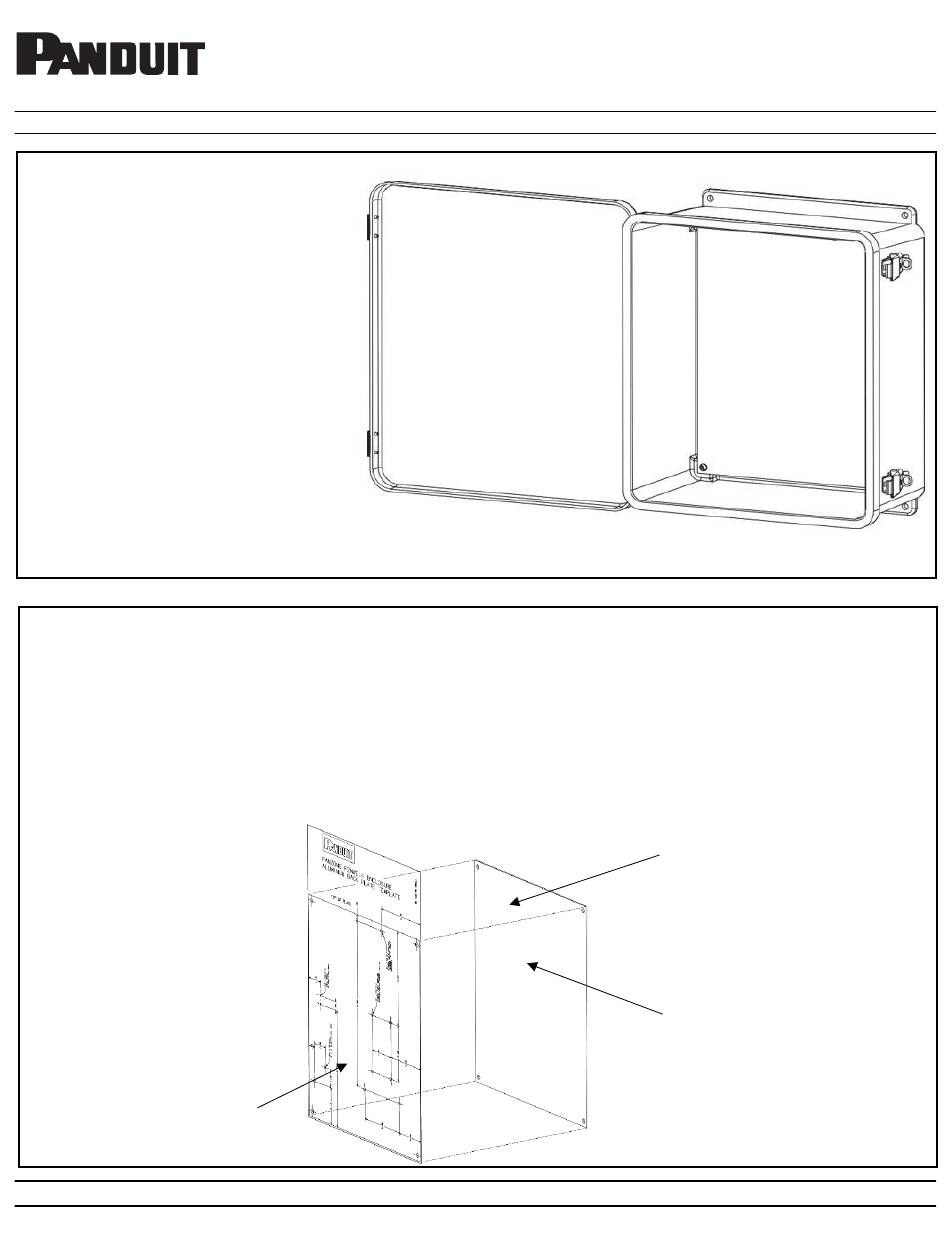

PZNWE14 (Shown Open)
https://www.panduit.com
CM332 R03
Aluminum Mounting Plate
Drill the mounting plate per
the supplied template
choosing the appropriate
assembly scenario
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Panduit PZNWE14
Summary of Contents for Panduit PZNWE14
- Page 1 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE14 ASSEMBLY INSTRUCTIONS CM332 R03 © Panduit Corp. 2024 Contents: 1 – Enclosure 1 – Aluminum Mounting Plate 1 – Mounting Template 1 – Hardware Kit (2) Adhesive Mounting Clips (1) RTV Silicone Sealant Pack (6) # 10-32 x 3/8”...
- Page 2 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE14 ASSEMBLY INSTRUCTIONS CM332 R03 © Panduit Corp. 2024 Attach the Mounting Plate to the enclosure with the supplied # 10-32 x 3/8” screws and washers. Supplied # 10-32 x 3/8”...
- Page 3 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE14 ASSEMBLY INSTRUCTIONS CM332 R03 © Panduit Corp. 2024 Fasten a 2” x 4” electrical box in line with the incoming conduit fitting with the supplied #10-32 thread cutting screws.
- Page 4 PANZONE NEMA 4X/IP66 Rated Wireless Access Point Enclosure Part Number: PZNWE14 ASSEMBLY INSTRUCTIONS CM332 R03 © Panduit Corp. 2024 The power adapter supplied with the wireless access point can be located as shown, providing power to the wireless access point. Slack the excess cable beside the adapter as shown.
