© Panduit Corp. 2008
List of Common Components:
Hardware Guide
Hardware Guide
(4) #10-32 Hex Nuts
(4) #10 Split Lock Washers
(4) #8-32 Hex Nuts
#10-32
#10
(4) #8 Split Lock Washers
(2) #6-32 Screws
(1) Grounding Cable
(4) Pieces of Fire Resistant Foam
#8-32
#8
(1) 26" length Grommet Edging
(1) 2 Position Surface Mount Box
(PANDUIT Part No. CBXJ2WH-A)
#6-32 Screws
(1) 2' long Category TX6 Plus Patch Cord
(PANDUIT Part No. UTPSP2)
(1) Category TX6 Plus Jack Module
#10-32 Screws
(PANDUIT Part No. CJ688TGWH)
Keyed Knockout
Slots for Wall
Mount applications
(6 places)
Brackets for
Fire Resistant Foam (2 places)
(door removed from view for clarity)
TABLE OF CONTENTS
Wall Mount Installation..................................................................................................................................................... 2
Ceiling Mount Installation..................................................................................................................................................2-4
Cisco Aironet 1250 Series Access Point Installation........................................................................................................ 5
Cable Routing....................................................................................................................................................................6
Antenna Installation...........................................................................................................................................................7
Fully Installed Application Photos......................................................................................................................................8
P
AN
Part Numbers: PZWIFIENA, PZWIFIENAS
INSTRUCTIONS CM372
PZWIFIENA ONLY
Double Knockout
for 1/2" or 3/4" Conduit
(3 places)
RP-TNC
Wall Mount
bulkhead
connector
knockout
(6 places)
Knockout for
electrical
junction box
Z

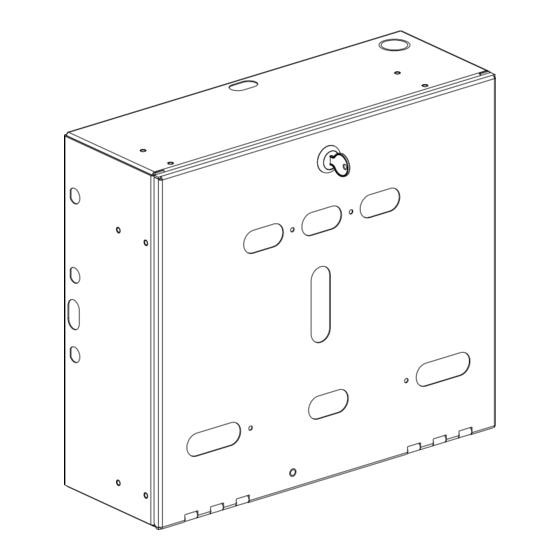

Wireless Access Point Enclosure
ONE
(2) P
-T
mounts
AN
Y
(PANDUIT Part No. ABMM-A-C)
(4) P
-T
Cable Ties
AN
Y
(PANDUIT Part No. PLT1.5I-C)
(1) Foam Retention Plate
(2) Keys
(2) Latching Wire Clips
(Panduit Part No. LWC50-A-L)
(4) #10-32 X 3/8" Thread Cutting
Screws
PZWIFIENAS ONLY
(1) 1M STP TX6 Plus Patch Cord
(PANDUIT Part No. STP6X1MBU)
(1) Minicom TX6 Plus Shielded Jack
(PANDUIT Part No. CJS666TGY)
Knockouts for
Knockouts
led lights
for Surface
on the wap
Raceway
(4 places)
#10-32
Threaded
Grounding
Studs
Page 1 of 8
PZWIFIENA
AIR-ANT2430V-R Knockouts
for Patch Antenna Mounting
AIR-ANT514OV-R
Knockouts for
Patch Antenna Mounting
Page (s)
Advertisement
Related Manuals for Panduit PANZONE PZWIFIENA
Summary of Contents for Panduit PANZONE PZWIFIENA
-
Page 1: Table Of Contents
Wireless Access Point Enclosure Part Numbers: PZWIFIENA, PZWIFIENAS INSTRUCTIONS CM372 © Panduit Corp. 2008 List of Common Components: Hardware Guide Hardware Guide PZWIFIENA (2) P mounts (4) #10-32 Hex Nuts (4) #10 Split Lock Washers (PANDUIT Part No. ABMM-A-C) (4) #8-32 Hex Nuts... -
Page 2: Wall Mount Installation
Please read these instructions in their entirety prior to installing the enclosure. Note: P Enclosures Require one of the following additional part numbers for in-ceiling applications PANDUIT Part #:PZWIFIDCB - P Wireless Access PANDUIT Part #:PZW2X2DCB - P Wireless Access Point Point In-Ceiling Bracket Kit In-Ceiling 2’x 2’... - Page 3 Hinge 4.2 Secure the four sides of the enclosure to the bracket with (4) #6-32 screws provided with the bracket as shown. Hinge Slot For Technical Support: www.panduit.com/resources/install_maintain.asp Page 3 of 8...
- Page 4 (on top of TGB cable) and the other end to the grounding stud on the door. 6.3 Secure with the #10 Split Lock Washers and #10-32 Hex Nuts. For Technical Support: www.panduit.com/resources/install_maintain.asp Page 4 of 8...
-
Page 5: Cisco Aironet 1250 Series Access Point Installation
7.1 Remove bracket on back side of wireless access point. 7.2 Slide access point feet into mount plate slots #4-40 Screws Mounting Bracket 7.4 Attach the same bracket to the mounting bracket using the same (2) #4-40 screws. #4-40 Screws For Technical Support: www.panduit.com/resources/install_maintain.asp Page 5 of 8... -
Page 6: Cable Routing
8.1 Run the network cable to and into the enclosure. 8.2 Terminate the TX6 PLUS Jack Module to the network cable. Refer to the PANDUIT web site for jack termination instructions if needed. 8.3 Mount the base of the 2 Position Surface Mount Box to the back wall of the enclosure using provided double sided tape. -
Page 7: Antenna Installation
Tak Ty access point. Correspond the rated GHz frequency antenna wires with their designated location. Attach all wires to their proper locations, similar to the image on the right. 5 GHz 2.4 GHz For Technical Support: www.panduit.com/resources/install_maintain.asp Page 7 of 8... -
Page 8: Fully Installed Application Photos
INSTRUCTIONS CM372 Wall Mount Application (PZWIFIENA Shown) Ceiling Mount Application (PZWIFIENA with PZW2X2DCB Shown) For instuctions in Local Languages E-mail: and Technical Support: cs@panduit.com Fax: www.panduit.com/resources/install_maintain.asp (708)444-6448 www.panduit.com Page 8 of 8...
