Typical patch cord length is 4 feet minimum
Route patch cords as shown to avoid crossover
Typical patch cord length is 5 feet minimum
Route patch cords as shown to avoid crossover
Routed to top Horizontal
Slack Manager
For instuctions in Local Languages
and Technical Support:
www.panduit.com/resources/install_maintain.asp
INSTRUCTIONS CM315E

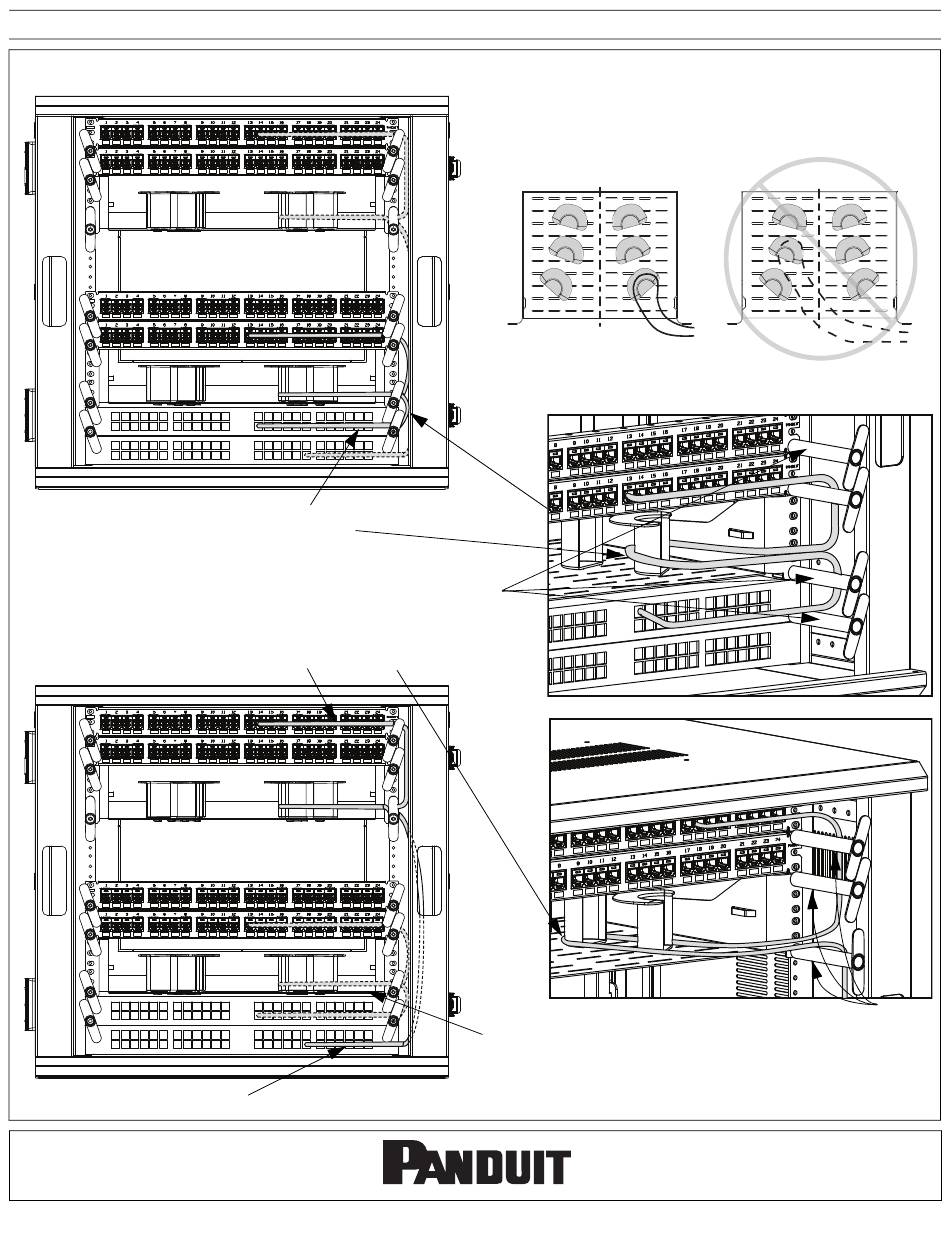

Recommended Cable Routing Guide
Recommended Mounting Locations
for Bend Radius Posts
www.panduit.com
Place patch cord slack around furthest spool as feasible to
provide best possible cable management
c L
Never cross over center line of horizontal slack manager
with cable slack
Lower
Horizontal
Manager
Page 11 of 11
Top View of PZCHSM2
Recommended Mounting Locations
for Bend Radius Posts
Route patch cords going to top horizontal
slack towards the outside of the cabinet to
avoid cross overs with patch cords going
to lower slack manager.
