2.2.2 Connecting the Hardware
After the TI Launchpad firmware is upgraded as described in
configurations set up as per
shown in
Figure
2-6. Connect the USB cable from the TI Launchpad OTG USB Port (U7) to the PC.
2.2.3 Electrostatic Discharge Warning
Many of the components on the DAC53204EVM are susceptible to damage by electrostatic discharge (ESD).
Observe proper ESD handling precautions when unpacking and handling the EVM, including the use of a
grounded wrist strap at an approved ESD workstation.
8
DAC53204EVM User's Guide
Section
2.2.1, the BOOSTXL-DAC-PORT and DAC53204EVM can be connected as

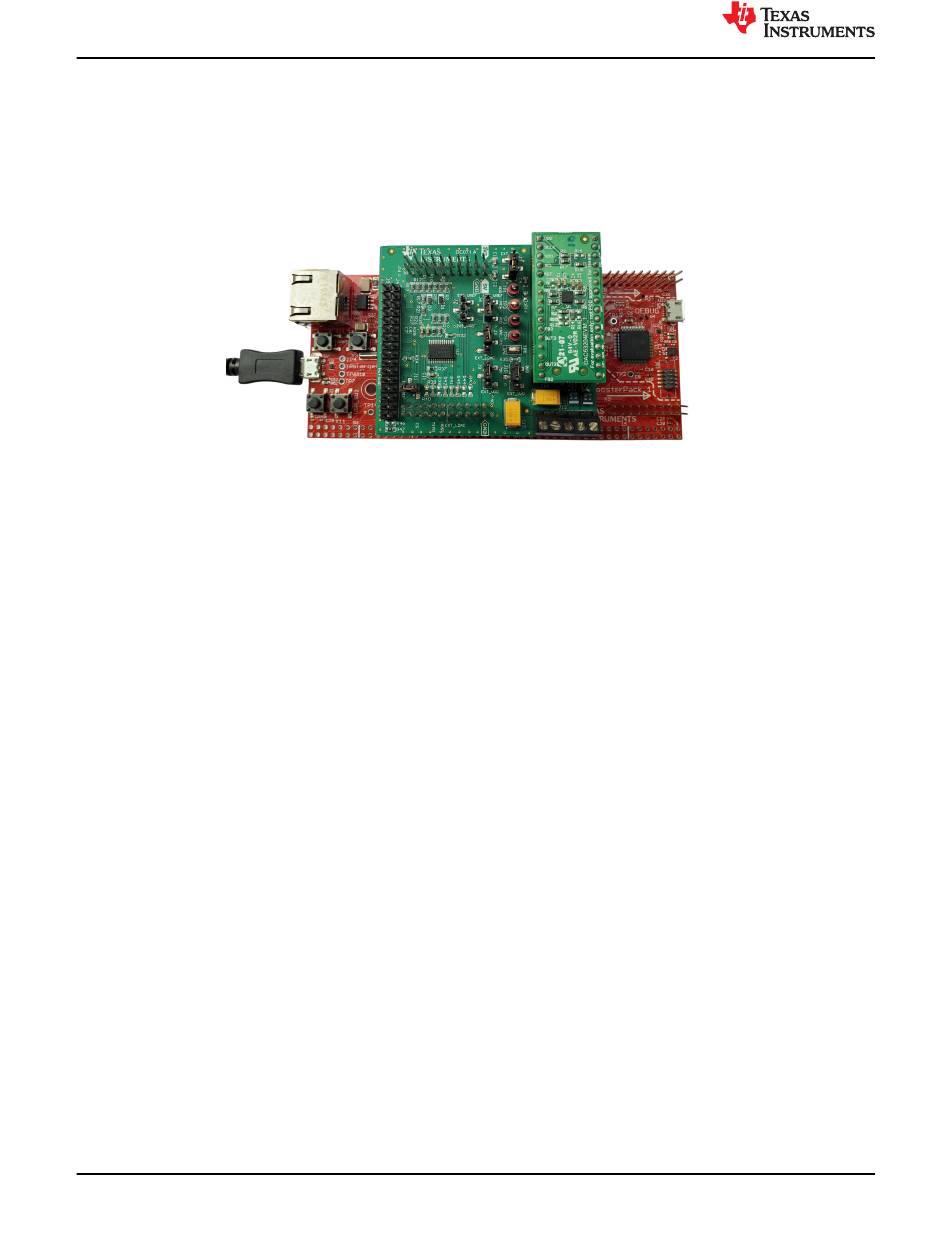

Figure 2-6. Hardware Setup Guidelines
Copyright © 2021 Texas Instruments Incorporated
Section
2.1.3, and power and jumper
www.ti.com
SLAU851 – MARCH 2021
Submit Document Feedback
