3.2.2.3.3 Functions Settings Tab
The next tab on the Quick-Start page is Functions for function generation, as shown in
provides the ramp programming done through code-step and slew-rate settings.
The most basic setting for this functionality is the function selection: triangular wave, saw-tooth wave, inverse
saw-tooth wave, and square wave.
The margin-low and margin-high settings define the lower and the upper bounds of the waveform, respectively.
The toggle button starts or stops the defined function generation.
Any change to the function settings can only be done when the function is off.
The register settings can be programmed or retrieved using the EEPROM PROGRAM or RELOAD buttons,
respectively.
SLAU851 – MARCH 2021
Submit Document Feedback

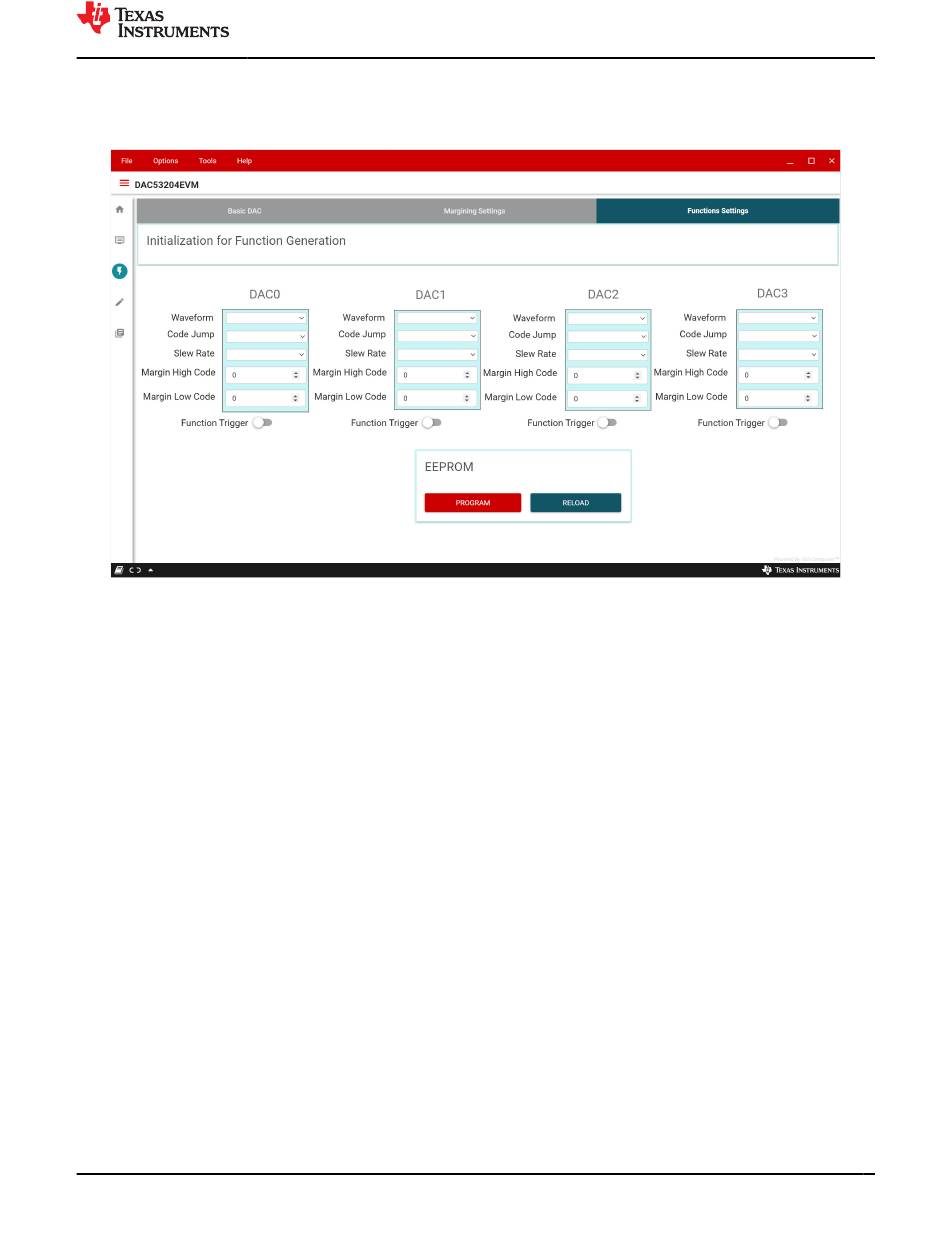

Figure 3-9. DAC Quick Start Page: Function Generation
Copyright © 2021 Texas Instruments Incorporated
Detailed Description
Figure
3-9. This page
