User's Guide
DAC53204EVM User's Guide
This user's guide describes the characteristics, operation, and use of the DAC53204EVM evaluation module
(EVM). This EVM is designed to evaluate the performance of the
buffered voltage output DACs in a variety of configurations. Throughout this document, the terms evaluation
board, evaluation module, and EVM are synonymous with the DAC53204EVM. This document includes a
schematic, reference printed-circuit board (PCB) layouts, and a complete bill of materials.
SLAU851 – MARCH 2021
Submit Document Feedback
ABSTRACT
Copyright © 2021 Texas Instruments Incorporated
DAC53204
and
DAC43204
DAC53204EVM User's Guide
commercial,
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments DAC53204EVM
Summary of Contents for Texas Instruments DAC53204EVM
- Page 1 User’s Guide DAC53204EVM User's Guide ABSTRACT This user’s guide describes the characteristics, operation, and use of the DAC53204EVM evaluation module (EVM). This EVM is designed to evaluate the performance of the DAC53204 DAC43204 commercial, buffered voltage output DACs in a variety of configurations. Throughout this document, the terms evaluation board, evaluation module, and EVM are synonymous with the DAC53204EVM.
-
Page 2: Table Of Contents
Figure 2-5. Hardware Setup................................ Figure 2-6. Hardware Setup Guidelines............................Figure 3-1. BOOSTXL-DAC-PORT Hardware Block Diagram.....................9 Figure 3-2. DAC53204EVM Hardware Block Diagram......................Figure 3-3. DAC53204EVM GUI Location..........................Figure 3-4. DAC53204EVM GUI Connection Detection......................Figure 3-5. Software Home Page.............................. Figure 3-6. Setup Page................................16... - Page 3 Trademarks LaunchPad ™ is a trademark of TI. Windows ™ are trademarks of Microsoft Corporation. All trademarks are the property of their respective owners. SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated...
-
Page 4: Overview
The following document provides information regarding Texas Instruments integrated circuits used in the assembly of the DAC53204EVM. This user's guide is available from the TI web site under literature number SLAU851. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document. -
Page 5: System Setup
GUI Composer Gallery. Search for DAC53204EVM in the GUI Composer Gallery. Use the down arrow symbol to download the software. There are two downloads: DAC53204EVM GUI and GUI Composer Runtime. Either download both, or just download the EVM GUI; the run-time file can be downloaded through the EVM GUI during installation. The software can also be run online by clicking;... -
Page 6: Figure 2-3. Tm4C1294 Connected Launchpad™ Evaluation Kit Setup
6. Press the Refresh or Finish button after the installation is complete. This action should detect the Launchpad™. 7. Press Start and browse for <Download Directory>\DAC53204EVM_1.0.1_installer_win\install_image_DAC53204EVM.\DAC53701EVM\firmware\acc trl.0.3.0.3b.bin. Press Load Image followed by Verify Image. DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 7: Hardware Setup
C pullups. The IO ports of the Analog EVM Controller and level translators used on the BOOSTXL-DAC-PORT and DAC53204EVM can withstand a maximum of 3.6-V IO levels. The TI Launchpad also generates digital signals used to communicate with the EVM board. -
Page 8: Figure 2-6. Hardware Setup Guidelines
Figure 2-6. Hardware Setup Guidelines 2.2.3 Electrostatic Discharge Warning Many of the components on the DAC53204EVM are susceptible to damage by electrostatic discharge (ESD). Observe proper ESD handling precautions when unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD workstation. -
Page 9: Detailed Description
Figure 3-1. BOOSTXL-DAC-PORT Hardware Block Diagram 3.1.1.1 Signal Definition of the BOOSTXL-DAC-PORT The BOOSTXL-DAC-PORT provides hardware connectors for the TI Launchpad (J13, J14), external power (J12), the DAC53204EVM (J1, J2), and the external function extender (J4, J5). The descriptions are provided in Table 3-1 through Table 3-5. -
Page 10: Table 3-1. Boostxl-Dac-Port J13 Pin Definitions
General-purpose I/O VDD_SENSE Sense Input for VDD VIO_SENSE Sense Input for VIO GPIO General-purpose I/O GPIO General-purpose I/O GPIO General-purpose I/O GPIO General-purpose I/O DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 11: Table 3-3. Boostxl-Dac-Port J4 Pin Definitions
Table 3-5. BOOSTXL-DAC-PORT J12 Pin Definitions Pin# Signal Description High-voltage positive power supply High-voltage negative power supply Ground EXT_VDD External VDD EXT_VIO External VIO SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 12: Figure 3-2. Dac53204Evm Hardware Block Diagram
Detailed Description www.ti.com 3.1.2 Theory of Operation for the DAC53204EVM Hardware The block diagram of the DAC53204EVM board is displayed in Figure 3-2. The EVM board connects to BOOSTXL-DAC-PORT with two 16-pin connectors. These headers provide access to all DAC pins. -
Page 13: Table 3-6. Dac53204Evm J2 Pin Definitions
Detailed Description 3.1.2.1 Signal Definition of the DAC53204EVM The DAC53204EVM provides access to all DAC pins through connection J1 and J2, as listed in Table 3-6 Table 3-7. Table 3-6. DAC53204EVM J2 Pin Definitions Pin# Signal Description DAC_VDD VDD power supply for DAC... -
Page 14: Software Description
Options → Serial Port, and change the port to the other available port with the (Texas Instruments) or ACCtrl tag. Out of the two ports with these tags, one port should connect. Figure 3-4. DAC53204EVM GUI Connection Detection DAC53204EVM User's Guide SLAU851 –... -
Page 15: Figure 3-5. Software Home Page
Detailed Description 3.2.2 Software Features The DAC53204EVM incorporates interactive functions that help configure the DAC53204 device. These functions are built into several GUI pages, as shown in the following subsections. The Menu allows the user to switch between pages, with each page representing a feature of the software. -
Page 16: Figure 3-6. Setup Page
Figure 3-6, guides the user to perform a one-time firmware upgrade for the TI Launchpad, and details how the TI Launchpad, BOOSTXL-DAC-PORT, and DAC53204EVM are stacked. This page also shows the default jumper settings for the BOOSTXL-DAC-PORT. Figure 3-6. Setup Page DAC53204EVM User's Guide SLAU851 –... -
Page 17: Figure 3-7. Dac Quick-Start Page: Basic Dac Tab
The basic DAC setup for power up, reference selection, and output span selection available in this tab is common to all the tab functions. Figure 3-7. DAC Quick-Start Page: Basic DAC Tab SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 18: Figure 3-8. Dac Quick-Start Page: Margining Tab
The register settings are programmed or retrieved using the EEPROM PROGRAM or RELOAD buttons, respectively. The trigger bits are not loaded to the EEPROM because they are edge sensitive. DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 19: Figure 3-9. Dac Quick Start Page: Function Generation
Any change to the function settings can only be done when the function is off. The register settings can be programmed or retrieved using the EEPROM PROGRAM or RELOAD buttons, respectively. SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 20: Figure 3-10. Register Map Page
Detailed Description www.ti.com 3.2.2.4 Register Map Page The DAC53204EVM Register Map page, as shown in Figure 3-10, allows the user to access low level communication directly with the DAC53204 registers. Selecting a register on the Register Map list shows a description of the values in that register, as well as information on the register address, default value, size, and current value. -
Page 21: Schematic, Pcb Layout, And Bill Of Materials
4 Schematic, PCB Layout, and Bill of Materials This section contains the complete bill of materials and schematic diagram for the BOOSTXL-DAC-PORT and DAC53204EVM. SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 22: Boostxl-Dac-Port Schematic
This assumes that the BO board has another buffer (VCC-VSS)-max = 43V to isolate the EEPROM signals from the DAC unless DAC_VIO is present VIO Selection Figure 4-1. BOOSTXL-DAC-PORT Schematic Page 1 DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 23: Figure 4-2. Boostxl-Dac-Port Schematic
VDD can either be used directly 1.0k sides similar to LP connectors or through an optional voltage divider 0.1uF Figure 4-2. BOOSTXL-DAC-PORT Schematic Page 2 SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 24: Dac53204Evm Schematic
Schematic, PCB Layout, and Bill of Materials www.ti.com 4.2 DAC53204EVM Schematic Figure 4-3. DAC53204EVM Schematic DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 25: Pcb Components Layout

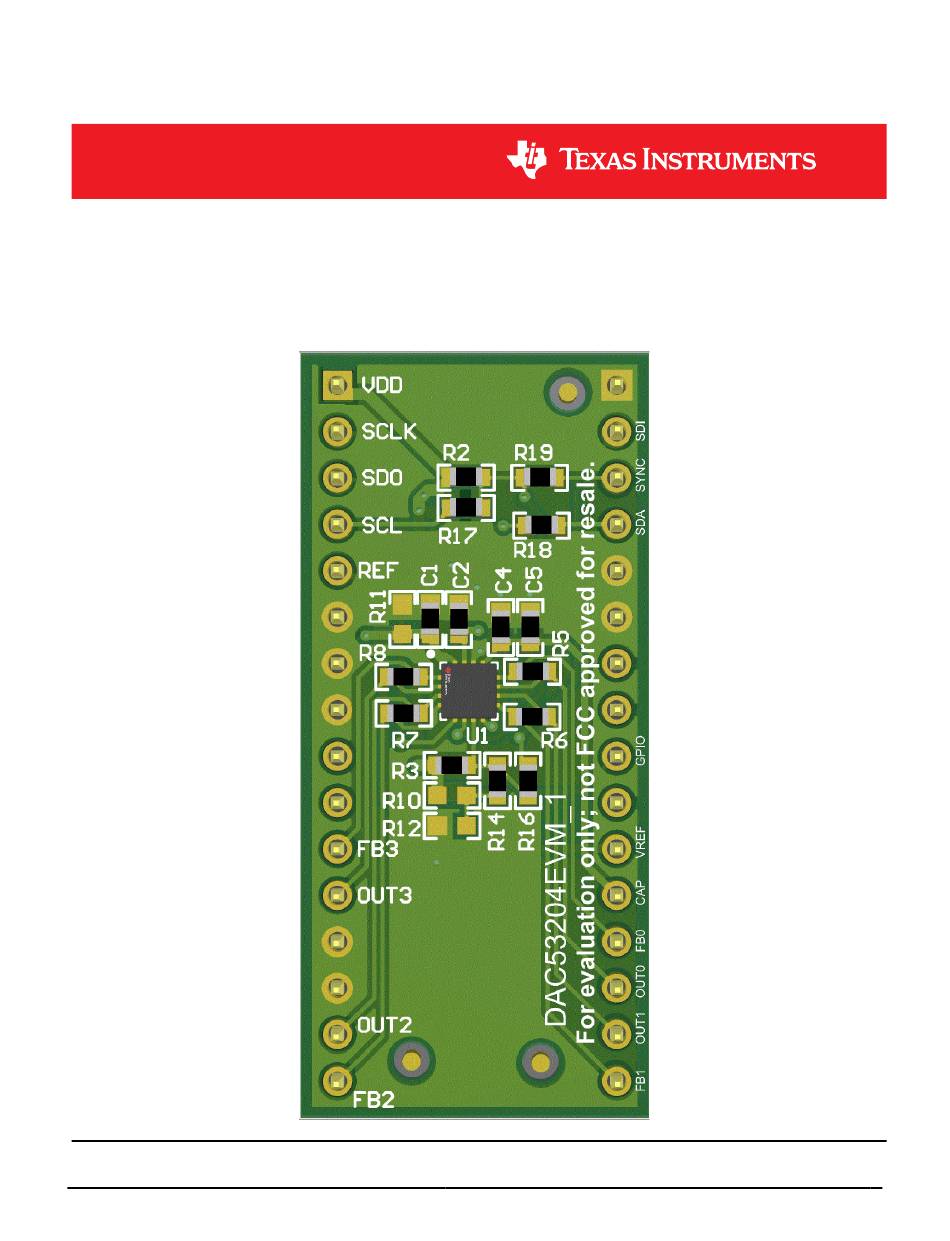

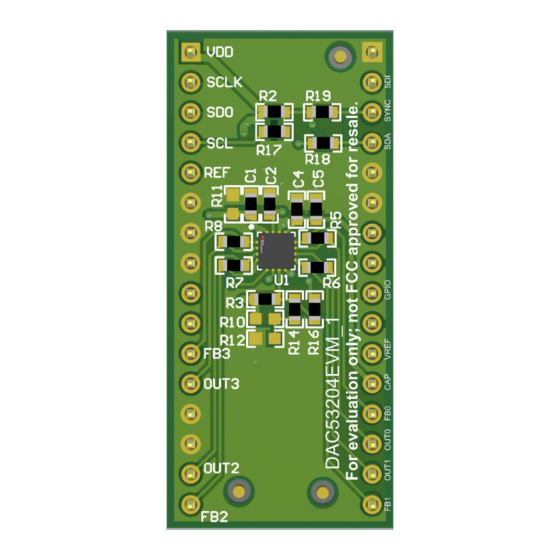

Schematic, PCB Layout, and Bill of Materials 4.3 PCB Components Layout Figure 4-4 through Figure 4-8 show the layout of the components for the DAC53204EVM board. Figure 4-4. BOOSTXL-DAC-PORT PCB Components Layout Figure 4-5. BOOSTXL-DAC-PORT Top Layer SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright ©... -
Page 26: Figure 4-6. Boostxl-Dac-Port Bottom Layer
Schematic, PCB Layout, and Bill of Materials www.ti.com Figure 4-6. BOOSTXL-DAC-PORT Bottom Layer Figure 4-7. DAC53204EVM PCB Components Figure 4-8. DAC53204EVM Layers Layout DAC53204EVM User's Guide SLAU851 – MARCH 2021 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 27: Boostxl-Dac-Port Bill Of Materials
RES, 4.99 k, 1%, 0.1 W, 0603 0603 CR0603-FX-4991ELF Bourns R14, R31, R34, R47 RES, 0, 5%, 0.1 W, 0603 0603 RC0603JR-070RL Yageo America SLAU851 – MARCH 2021 DAC53204EVM User's Guide Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated... -
Page 28: Dac53204Evm Bill Of Materials
RC0603JR-070RL Yageo America R40, R44 RES, 33, 5%, 0.1 W, AEC- 0603 CRCW060333R0JNEA Vishay-Dale Q200 Grade 0, 0603 4.5 DAC53204EVM Bill of Materials Table 4-2. DAC53204EVM Bill of Materials Designator Quantity Value Description Package Reference Part Number Manufacturer !PCB Printed Circuit Board... - Page 29 Schematic, PCB Layout, and Bill of Materials Table 4-2. DAC53204EVM Bill of Materials (continued) Designator Quantity Value Description Package Reference Part Number Manufacturer R10, R11, R12 10.0 k RES, 10.0 k, 1%, 0.1 W, 0603 0603 RC0603FR-0710KL Yageo America SLAU851 –...
