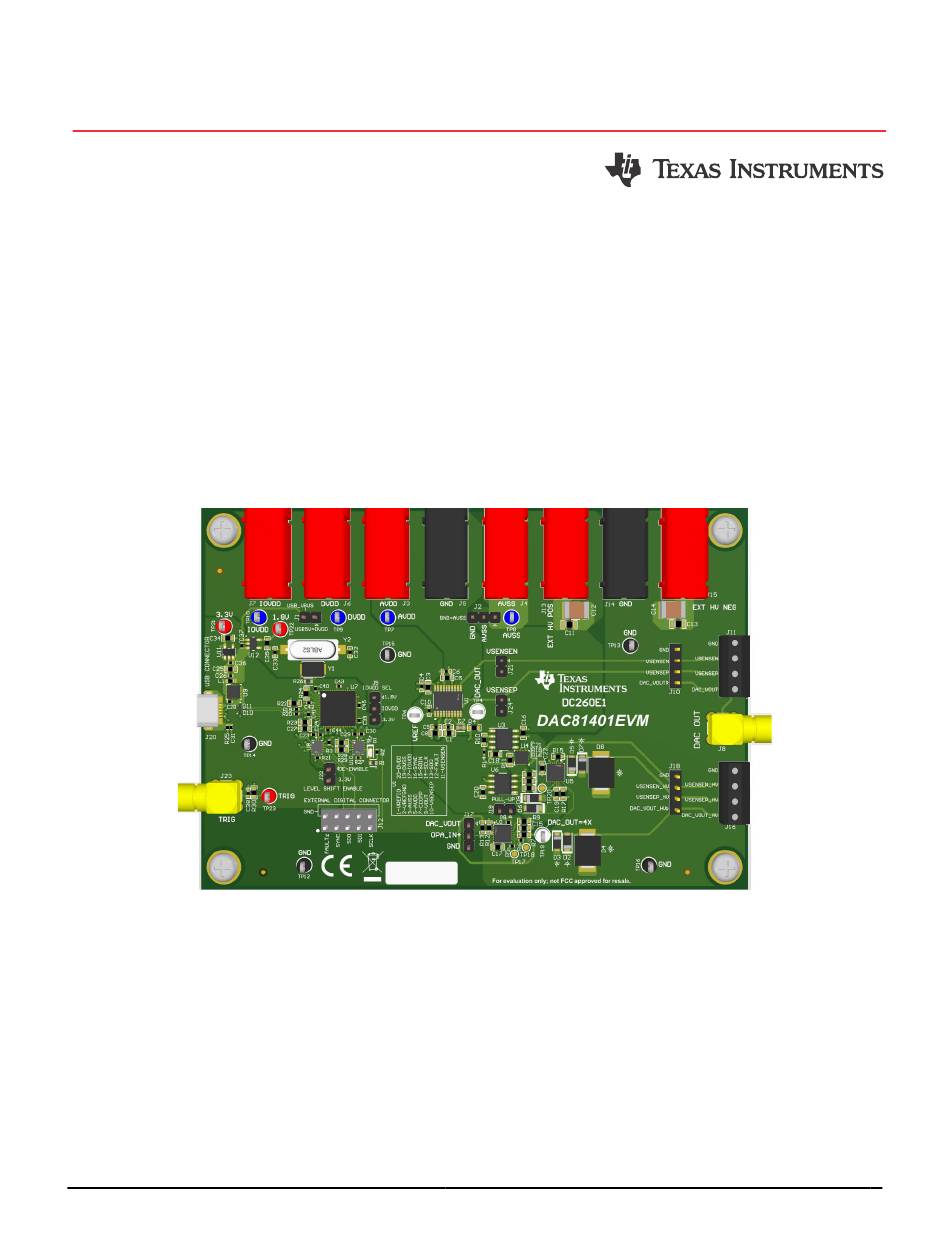

EVM User's Guide: DAC81401EVM

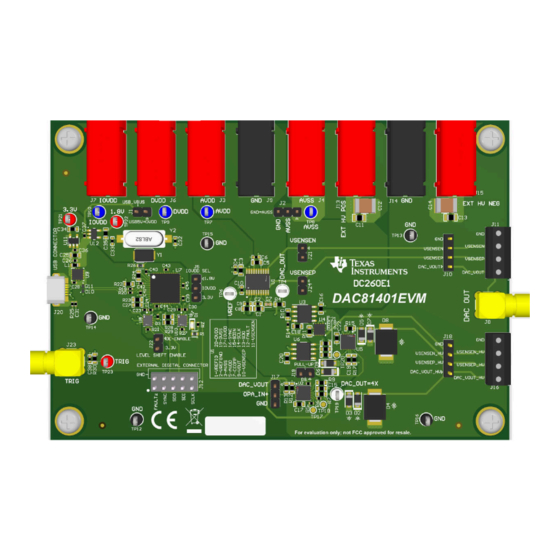

DAC81401 Evaluation Module
Description
The 16-bit DAC81401 and 12-bit DAC61401
(DACx1401) are a pin-compatible family of single-
channel, buffered, high-voltage-output digital to-
analog converters (DACs) with an integrated 2.5-
V internal reference. These devices are specified
monotonic and provide exceptional linearity of less
than 1 LSB.
Get Started
1. Order the EVM.
2. Configure EVM jumpers.
3. Install DAC814xxEVM GUI from ti.com.
SLAU905 – AUGUST 2023
Submit Document Feedback
4. Connect USB and external power supplies.
5. Launch DAC814xxEVM GUI.
Features
•
Configurable circuit to evaluate DAC
•
Onboard VDD and IOVDD (1.8-V or 3.3-V) support
•
High-voltage 4× gain stage is available to support
up to an 80-V output
•
Output protection circuit on gain output stage
•
Trigger output is available for synchronous
measurement
•
FT4232 used to easily write to DAC using
DAC814xxEVM GUI
•
External SPI connections available
Copyright © 2023 Texas Instruments Incorporated
Description
DAC81401 Evaluation Module
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DAC 1401 Series
Summary of Contents for Texas Instruments DAC 1401 Series
- Page 1 FT4232 used to easily write to DAC using 1. Order the EVM. DAC814xxEVM GUI 2. Configure EVM jumpers. • External SPI connections available 3. Install DAC814xxEVM GUI from ti.com. SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 2: Kit Contents
4 times gained DAC81401 output voltage, up to 0-80 V or ± 40-V. Attenuated output voltage by 4, is used on the VSENSEP to close the loop properly on DAC81401 side. DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 3: Device Information
Newer revisions are available from the TI web site at www.ti.com, or call the Texas Instruments Literature Response Center at (800) 477-8924 or the Product Information Center at (972) 644-5580. When ordering, identify the document by both title and literature number. - Page 4 If left unchanged, Figure 2-1 shows that the software location defaults to C:\Program Files (x86)\Texas Instruments\DAC814xxEVM. Figure 2-1. Software Installation Path DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 5 Figure 2-2 shows the FTDI USB drivers installation window that is automatically launched after the DAC814xxEVM software installation is complete. Figure 2-2. FTDI USB Drivers SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 6: Software Description
To launch the software, locate the DAC814xxEVM folder in the Start Menu, and select the DAC814xxEVM icon as shown in Figure 2-3. Figure 2-3. DAC814xxEVM Software Installation in Start Menu DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 7 Value or bit field of the GUI. The Register Map page also provides the FTDI GPIO controls for DAC81401EVM. For example, OPE_EN, TRIG and FAULT pins, under the FTDI section. SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 8 To store the values of the register map locally, select Save Configuration under the File menu option. The stored configuration files can be recalled and loaded by selecting Open Configuration as shown in Figure 2-7. Figure 2-7. DAC81401EVM Save/Open Configuration DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 9 Optional positive supply for high voltage gain stage operational amplifier Ground connection EXT HV NEG Optional negative supply for high voltage gain stage operational amplifier SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 10: Jumper Information
Open – VSENSEP of high voltage gain stage is open (default) LEVEL SHIFT ENABLE Short 1-2 – Digital buffers (U8,U10) enabled Open – Digital buffers (U8,U10) disabled DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 11 Hardware Figure 3-1. Default Header Settings with High Voltage Gain Stage Enabled Figure 3-2. Default Header Settings with High Voltage Gain Stage Disabled SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 12 Voltage Range" control on DAC814xxEVM GUI High Level page, or by writing to the "DAC_RANGE" register in the Low Level page as shown in section 2-2. DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 13: Header Information
Attenuated by 4X output for DAC81401 VSENSEP DAC VSENSEP HV TP21 3P3V 3.3-V LDO output TP22 1P8V 1.8-V LDO output TP23 TRIG FTDI trigger pin SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 14 DAC CHANNEL TP FAULT FAULT AVSS AVSS DVSS VREF DAC_VOUT VREFIO VREFGND DAC_OUT DAC_VSENSEP 0.1µF DAC81401PWR DAC_VSENSEN 0.1µF Figure 4-2. DAC81401EVM Schematic : DAC81401 Interface DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 15 0.1µF 15.0k EXT_HV- OPA_ENABLE DAC_VSENSEP E/D_Com Thermal_Pad ISET 4.99k EXT_HV- 0.1µF OPA593DNT 0.1µF AVSS AVSS Figure 4-3. DAC81401EVM Schematic : High Voltage Gain Stage SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 16 4.7µF Level shifter enabele 100nF 100nF 5V to 3.3V supply generation 5V to 1.8V supply generation Figure 4-4. DAC81401EVM Schematic : FTDI Controller Interface DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 17 Figure 4-8 show the board layout for the DAC81401EVM. Figure 4-5. DAC81401EVM PCB Top Layer Layout Figure 4-6. DAC81401EVM PCB Mid Layer 1 Layout SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 18 Hardware Design Files www.ti.com Figure 4-7. DAC81401EVM PCB Mid Layer 2 Layout Figure 4-8. DAC81401EVM PCB Bottom Layer Layout DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 19: Bill Of Materials (Bom)
Diode for USB Type-C and Instruments Thunderbolt 3, DPY0002A (X1SON-2) Installed FID1, FID2, Fiducial mark. There is Fiducial10-20 FID3 nothing to buy or mount. SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 20 15.0k RES, 15.0 k, 0.05%, 0.1 W, 0603 ERA-3ARW153V Panasonic AEC-Q200 Grade 0, 0603 0402S Installed R19,R20 10.0 RES, 10.0, 1%, 0.063 W, RK73H1ETTP10R0F KOA Speer 0402 DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 21 Multipurpose UART/MPSSE IC, VQFN-56 Installed U8,U10 4-Bit Fixed Direction Voltage- BQA0014A- TXU0304BQA Texas Level Translator with Instruments Schmitt- Trigger Inputs, and Tri-State Outputs, WQFN14 SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 22 V, Zero-Drift, 14-MHz MUX- Instruments Friendly, Rail-to-Rail Output, Operational Amplifier, D0008A (SOIC-8) Crystal, 12 MHz, 30 ppm, 18 ABRACON_AB ABLS2-12.000MHZ- Abracon Not installed pF, SMD D4Y-T Corporation DAC81401 Evaluation Module SLAU905 – AUGUST 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 23: Additional Information
DAC81401EVM EU Declaration of Conformity (DoC) for Restricting the use of Hazardous Substances (RoHS) 6 Additional Information 6.1 Trademarks Windows ® is a registered trademark of Microsoft. All trademarks are the property of their respective owners. SLAU905 – AUGUST 2023 DAC81401 Evaluation Module Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 24 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
