Detailed Description
3.2.2.3.2 Margining Tab
The second tab on the Quick-Start page is Margining, as shown in
margin-low, margin-high, and nominal DAC outputs, along with code-step and slew-rate for the ramp generation.
The margin-low and the margin-high triggers are by the respective buttons.
The register settings are programmed or retrieved using the EEPROM PROGRAM or RELOAD buttons,
respectively.
The trigger bits are not loaded to the EEPROM because they are edge sensitive.
18
DAC53204EVM User's Guide

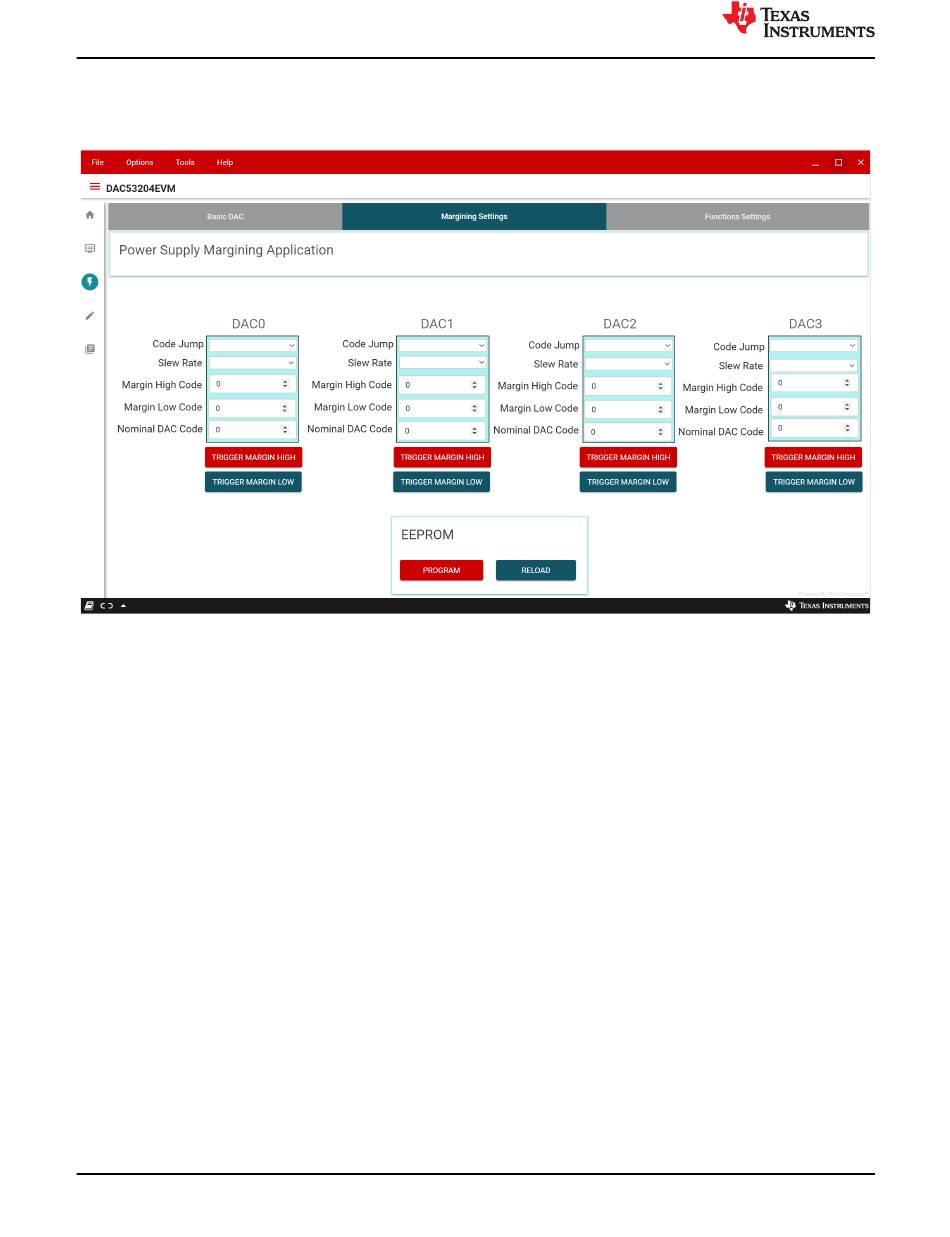

Figure 3-8. DAC Quick-Start Page: Margining Tab
Copyright © 2021 Texas Instruments Incorporated
Figure
3-8. This tab provides the settings for
www.ti.com
SLAU851 – MARCH 2021
