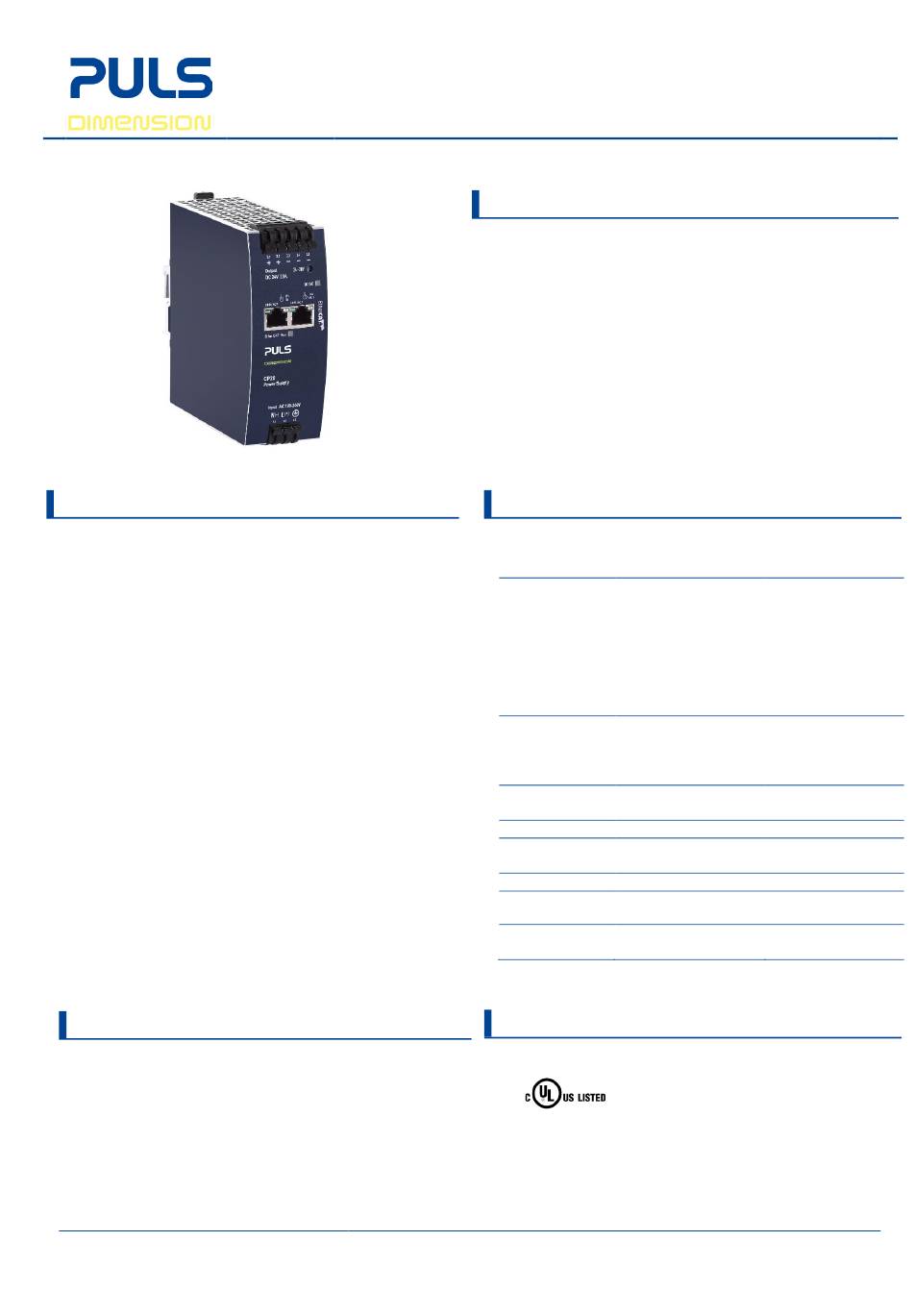

Puls DIMENSION CP Series Manual

CP-Series
P D
RODUCT ESCRIPTION

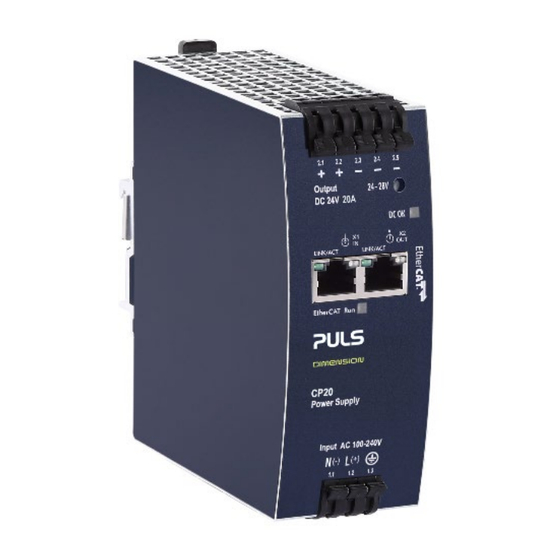

The CP20.241-ETC is a high-quality power supply based on
the popular CP20 series. With the integrated EtherCAT
interface the unit is giving access to real-time and recorded
data informing about the condition of the power supply
itself and the power line. Amongst many electrical operation
parameters, DC OK and Alarm signals are available via the
interface as well as a remote ON/OFF function and "Single /
Parallel Use" feature for load sharing between power
supplies connected in parallel.
Like its series members, the CP20.241-ETC comes with
advanced features like e.g. PowerBoost: Power reserves of
20 %, which may even be used continuously at
temperatures up to +45 °C. Additionally it can deliver 3
times the nominal output current for 12 ms, which helps to
trip fuses on faulty output branches.
The Dimension CP-Series are cost optimized power supplies
without compromising quality, reliability and performance.
The most outstanding features of this series are the high
efficiency, electronic inrush current limitation, active PFC,
wide operational temperature range and the extraordinary
small size.
O N
RDER UMBERS
Power Supply CP20.241-ETC
Accessory ZM10.WALL
All parameters are typical values specified 230 Vac, 50 Hz input voltage, 24 V, 20 A output load, +25 °C ambient and after a 5 minutes run-
in time unless otherwise noted.
Apr. 2024 / Rev 1.0 DS- CP20.241-ETC-EN
Wall/Panel mounting
bracket
www.pulspower.com Phone +49 89 9278 0
24 V, 20 A, 480 W, S
P S
OWER UPPLY
 AC 100-240 V wide-range input
 Width only 48 mm
 Direct access to internal and external parameters via
integrated EtherCAT interface
 Efficiency up to 95.5 %
 20 % output power reserves (PowerBoost)
 Easy fuse breaking – 3 times nominal current for 12 ms
 Safe Hiccup PLUS overload mode
 Full power between -25 °C and +60 °C
 Current sharing feature for parallel use
 3 year warranty
S - D
HORT FORM ATA
Output voltage DC 24 V
Adjustment
24 – 28 V
range
AC 120 – 240 V mains, DC 150-300 V mains
Output current 20.0 – 17.1 A
Power Boost 24.0 – 20.6 A
Derating linear 12.5 W/K
AC 100 V mains, DC 110-150 V mains
Output current 17.5 - 15.0 A
Power Boost 21.0 - 18.0 A
Derating linear 10.5 W/K
Input voltage AC AC 100-240 V
Mains frequency 50-60 Hz
Input current AC 4.26 / 2.23 A
Power factor 0.99 / 0.98
Input voltage DC DC 110-300 V
Input current DC 4.64 / 1.66 A
AC Inrush current 10.0 / 4.5 A
Efficiency 94.1 / 95.5 %
Losses 30.0 / 23.0 W
Hold-up time 32 / 32 ms
Temperature -25 °C to +70 °C
range
Size (WxHxD) 48x124x127 mm
Weight 835 g
M A
AIN PPROVALS
For details and the complete approval list, see chapter 21.
UL 61010-2-201
CP20.241-ETC
P
INGLE HASE
Nominal
Factory setting 24.1 V
Up to +60 °C ambient
Up to +45 °C ambient
> +60 °C ambient
Up to +60 °C ambient
Up to +45 °C ambient
> +60 °C ambient
-15 %/+10 %
±6 %
At 120 / 230 Vac
At 120 / 230 Vac
±20 %
At 110 / 300 Vdc
At 120 / 230 Vac
peak
At 120 / 230 Vac
At 120 / 230 Vac
At 120 / 230 Vac
Without DIN rail
1/30
Germany
