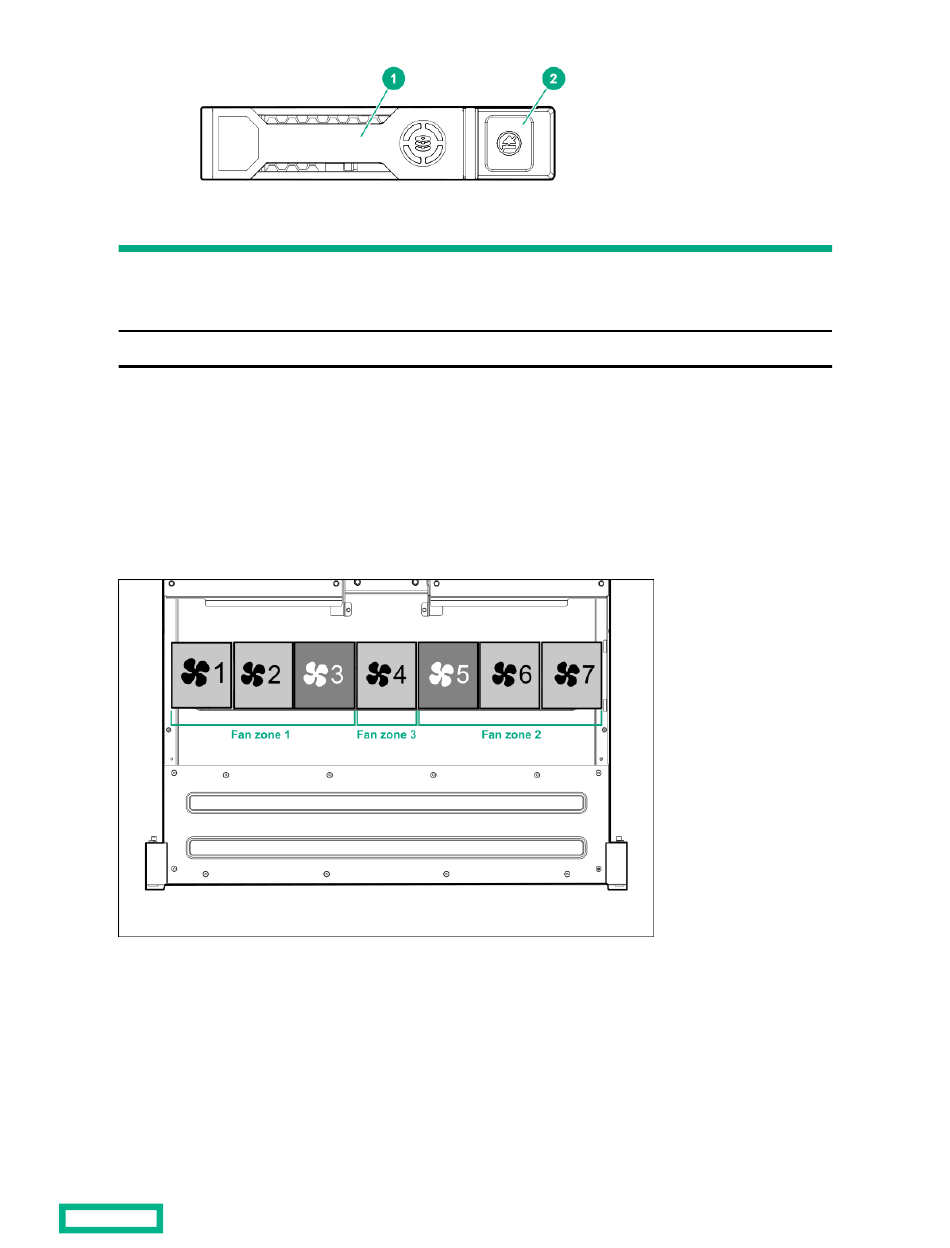

HPE Smart Carrier components
Item
Description
1
Drive handle
2
Handle release button
Fan numbering
The system supports up to seven non-hot-plug, dual-rotor fans.
•
Fans 1, 2, 4, 6, and 7 are default fans for basic cooling.
•
Fans 3 and 5 are optional fans for high performance cooling.
Redundant fan is supported in both basic and high performance cooling setups.
Definition
•
Pull the open handle to remove a drive.
•
Close the handle to fully seat and lock a drive into place.
Releases the drive handle for removal and insertion.
Component identification
