Drive backplane cabling
The drive backplane cabling images in this section show the following:
•
Drive power connections from the fan board to the drive backplane.
•
Server node signal connections from the system interconnect posts to the drive backplane.

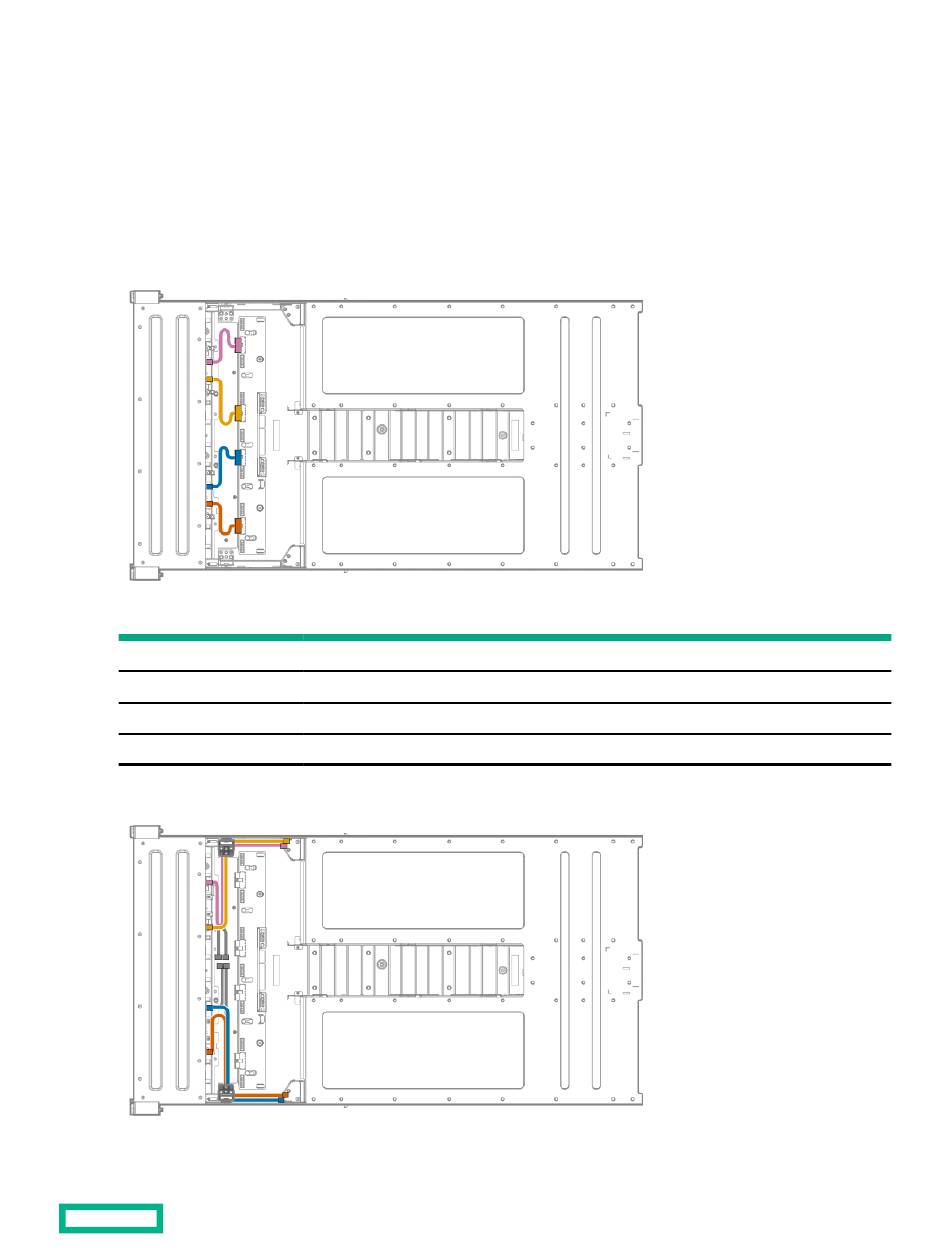

n2600 8 SFF U.3 drive backplane cabling
Drive power cabling
Cable color
Pink
Gold
Blue
Orange
Server node signal cabling
Description
Drive box 1 power cable
Drive box 2 power cable
Drive box 3 power cable
Drive box 4 power cable
91
Cabling
