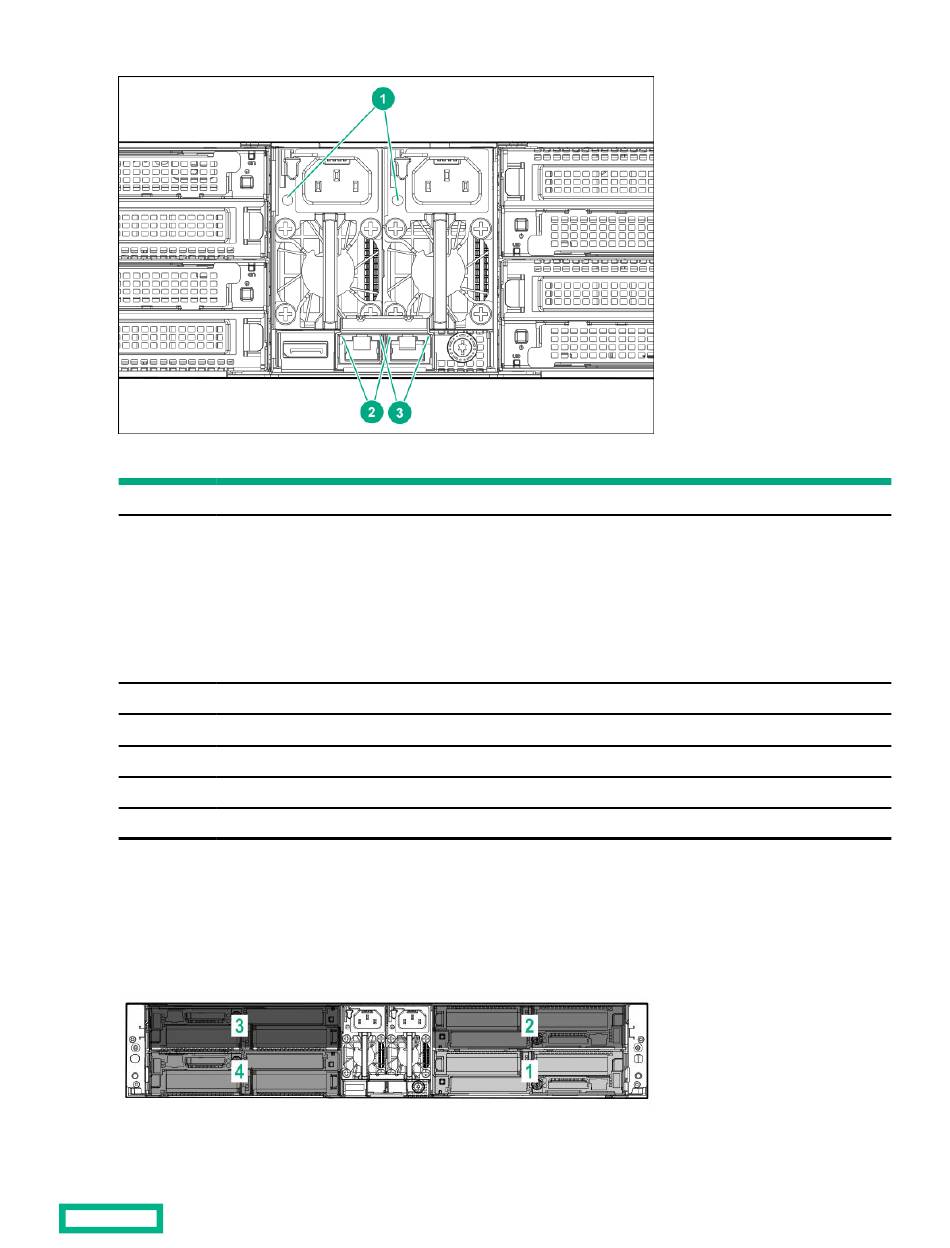

Rear panel LEDs and buttons

Item Description
1 Power supply LED
2 iLO link LED
3 iLO activity LED
1
These iLO LEDs are located on the optional RCM module.

Server node numbering

1U system: Server node numbering
Status
Solid green
Off
1
Solid green
Off
1
Solid green
Flashing green
Off
Definition
The power supply is operating normally.
One or more of the following conditions exists:
• Power is unavailable
• Power supply failure
• Power supply is in standby mode
• Power supply error
Linked to network
No network connection
Linked to network
Network active
No network activity
