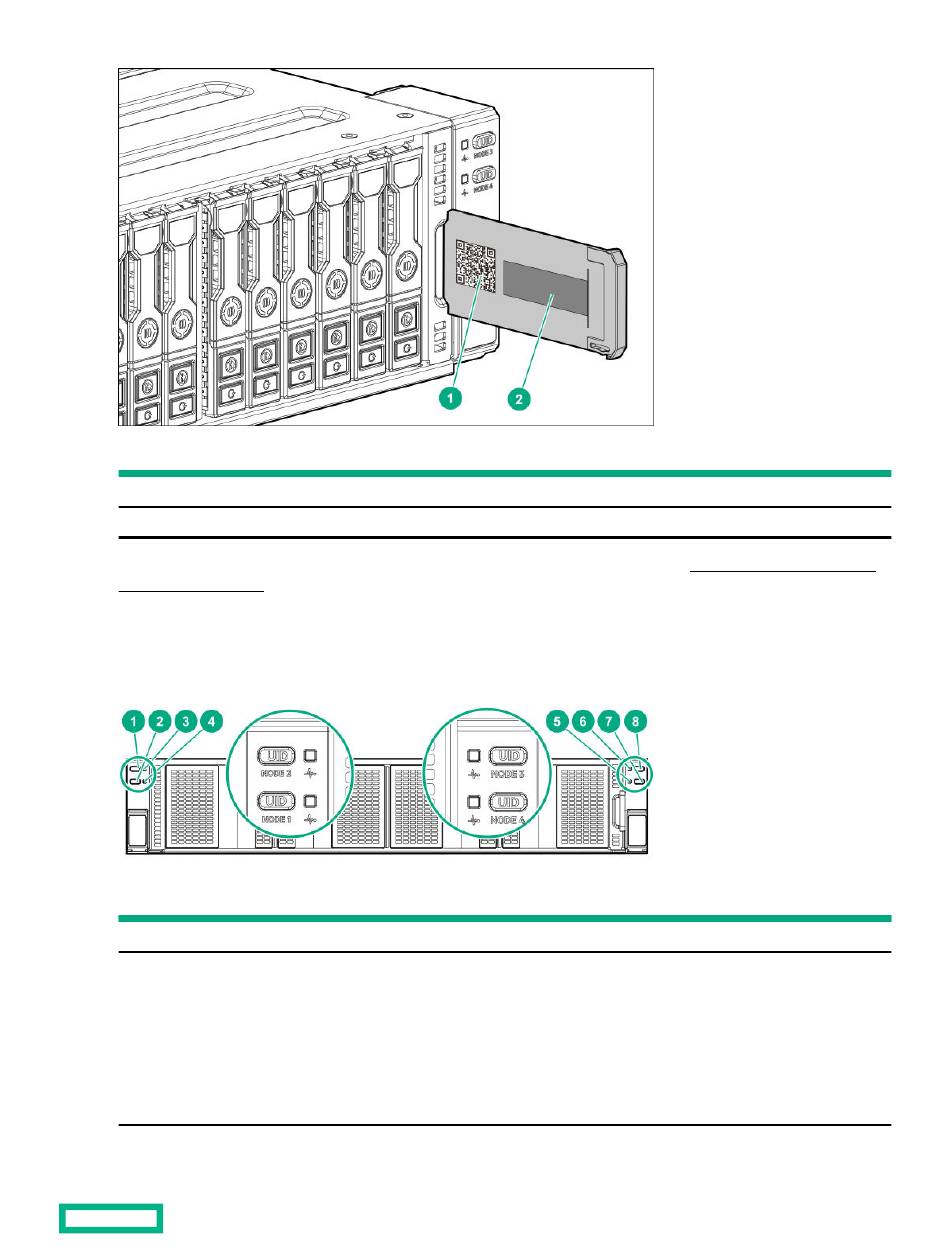

Information pull tab

Item
1
2
Use a mobile device to scan the QR code label to display the chassis mobile product page (https://www.hpe.com/qref/
apollo2000gen10plus). This page contains links to chassis setup information, spare part numbers, QuickSpecs,
troubleshooting resources, and other useful product links.

Front panel LEDs and buttons

Item Description
1 Node 2 UID button/LED
Description
QR code label
Chassis serial number/product ID label
Status
1
Solid blue
Flashing blue
Definition
Activated
• 1 flash per second = Remote management
or firmware upgrade in progress
• 4 flashes per second = iLO manual soft
reboot sequence initiated
• 8 flashes per second = iLO manual hard
reboot sequence in progress
Component identification
Table Continued
