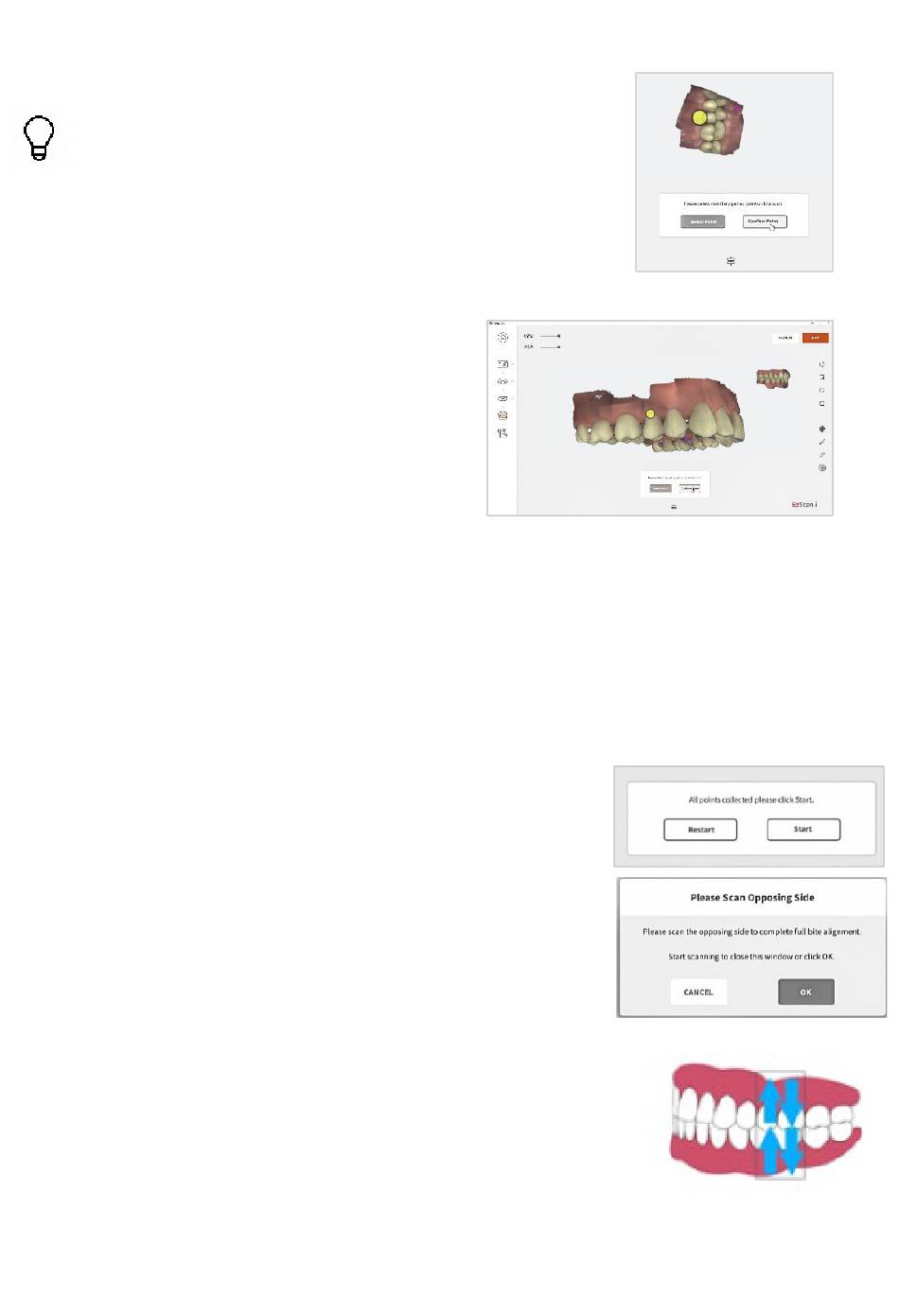

B. Align Maxillary-Paired Points
9. Click Select Point and choose a point on the
maxillary arch of the LEFT-side bite scan segment.
10. When you have positioned the marker, HOLD
[Ctrl] and click: a yellow dot will indicate the
selected maxillary-paired point.
11. Click Confirm Point.
The bite scan segment and the
selected maxillary-paired point is
displayed automatically in the top
right-hand of the screen.
You will be prompted to select the
corresponding paired point on the
maxillary arch.
12. Click Select Point and choose a point on the maxillary arch of the LEFT
13. When you have positioned the marker, HOLD [Ctrl] and click:
a yellow dot will indicate the selected maxillary-paired point.
14. Click Confirm Point to complete the manual alignment for the LEFT side.
15. You will be invited to start the Bite Alignment
based on the chosen paired-points.
C. Scan a molar/pre-molar
opposing side
When you have finished manually aligning one
side of the bite, you will be prompted to scan the
opposing side.
Carry out the same procedure as described above in
steps 2-15.
1. Scan a 2-3 teeth and 7-8mm gum segment on the
RIGHT molar/pre-molar region in Occlusion...
Page 54
bite segment on the
side.
