- Page 1 IP/ PoE Extender User Manual Model : IP09 Ethernet over CAT5e Extender Smart Cabling & Transmission Corp. V1.0_2001100...

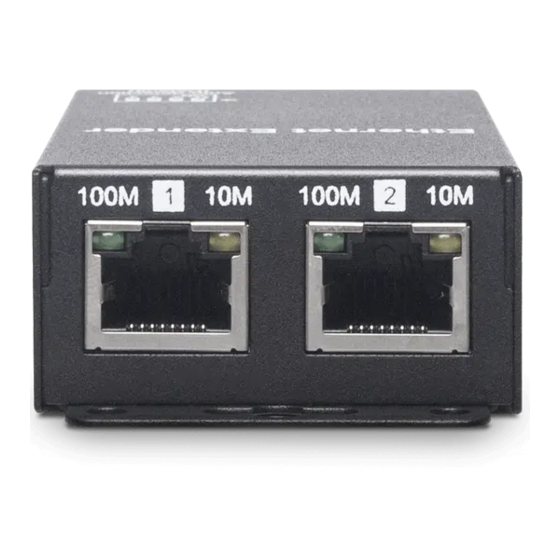

- Page 2 IP09 Introduction IP09 is an IP extender that can use a single CAT5e (or greater) cable to send TCP/IP signal to a remote IP-enabled device, with transmission distance up to 800M and bandwidth up to 100Mbps. Furthermore, the high bandwidth allows IP09 to send multiple IP signals over one Ethernet cable and split these signals for different IP devices.
-
Page 3: Installation View
User Manual IP09 Installation View (1) Point to Point Transmission (2) Multi-Camera Video Transmission (3) Wifi Acess Point Extending Transmission... - Page 4 User Manual IP09 (4) Extra Long Distance Transmission (5) Extra Long HDMI Transmission Panel Review...
- Page 5 Description Link speed of port 1 and 2 must be sync, or they are not able to activate network connection. Once the port 1 and 2 remain unlinked, the IP09 will automatically turn to Power Saving mode. RJ45 Pinout (PIN TIA/EIA-568B)
- Page 6 User Manual IP09 Status Indication Blue On Blue Off Light Blinking Blink twice Long Reach Ethernet 100BaseT-T1 Hardware Failure Dip Switch Setting: 7.1. Auto Mode / Default (Highly Recommended) Dip switch 1-2-3-4 all up (OFF) Auto Mode enable auto negotiation which automatically set up the link speed and transmssion protocol.
- Page 7 User Manual IP09 IP09K Package Included 2 x IP09. 2 x DC12V 0.5A Power Adapter. 4 x Screw 4 x Screw Plug...
-
Page 8: Specification
User Manual IP09 Specification ITEM NO. IP09 Support IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3bw 100BASE-T1 Ethernet Compliance IEEE 802.3 Nway Auto-Negotiation IEEE 802.3x Full Duplex Operation And Flow Control IEEE 802.3az Energy Efficient Ethernet Network Bandwidth 10/ 100Mbps Max. - Page 9 User Manual IP09...
