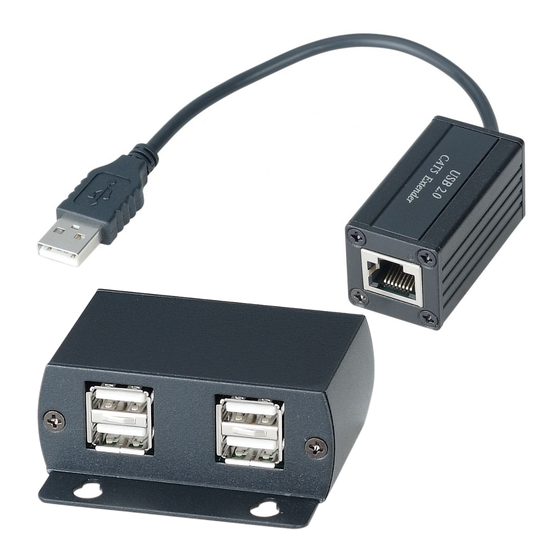

- Page 1 USB/Keyboard Mouse Extender User Manual Model : UE03 USB 2.0 CAT5e Extender with 4 Port Hub 50M Smart Cabling & Transmission Corp. V2.1...
- Page 2 User Manual UE03 Introduction UE03 is a peripheral device designed for extending 4 of USB 2.0 signals, such as USB cameras, touch screen, touchpad, HDD(External Hard Drive),USB flash drives, keyboards, mouses...etc. Features Extends 4 USB signals over an Ethernet cable.
- Page 3 User Manual UE03 Panel View UE03T Client Unit UE03R Local Unit LED Status LED Status Blinking Breathing Dark Function Data Transferring Stand-by* No Power to UE03T *Stand-by Description UE03T is not connected to UE03R. UE03T is connected to UE03R, but no USB Host connected to UE03R.
- Page 4 User Manual UE03 Caution UE03 is not an Ethernet device, which CAN NOT connect to any Ethernet or PoE device. The cabling must be away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage. UE03 is not applicable for USB hosts that remain powered after PC/Laptop are shut down.
-
Page 5: Specification
User Manual UE03 Specification ITEM NO. UE03T UE03R Support Compliance USB 2.0, USB 1.1, USB1.0 Data Bandwidth 480Mbps (High-speed), 12Mbps (Full-speed), 1.5Mbps (Low-speed) Max. Transmission 50M (USB2.0)/ 90M (USB1.0/ 1.1) Distance Ports & Interfaces Data Input 4 x USB Type A (Female)
