- Page 1 HDMI over IP Extender Series User Manual Model : HE03-4K 4K HDMI CAT5e/6 Extender CAT5e 120M/CAT6 140M Smart Cabling & Transmission Corp. V.10_1905301...
-
Page 2: Installation View

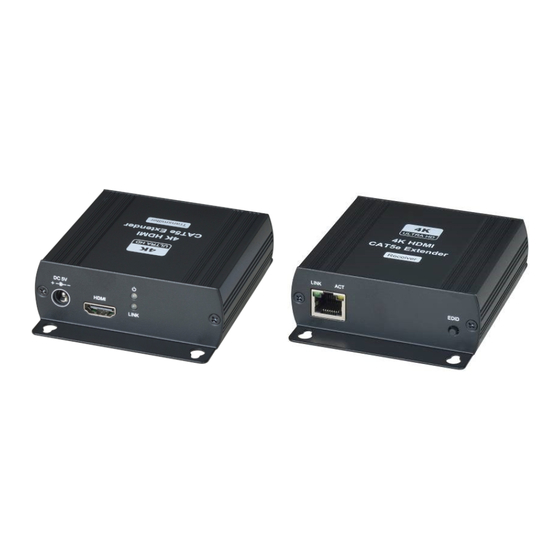

HE03-4K Introduction HE03-4K is a 4K HDMI extender that can use a cost-effective Ethernet cable to send the signal for up to 140M with resolution up to 4K@30Hz 4:4:4. The built-in EDID button can automatically find the connected HDMI monitor's best resolution and correctly display wanted video. The extender applies AV over IP technology that allow itself to work with Ethernet switches to split an HDMI to multiple ones, which can display one HDMI source on multiple displays at the same time. - Page 3 User Manual HE03-4K Panel View HE03T-4K HE03R-4K LED Indication Instruction Position Color Instruction Front Panel Green Power on/off Front Panel Blue TX/RX Linked RJ45 Green CAT5e Linked RJ45 Yellow Data Transmission Button Define HE03R-4K Button Function Short press Display MAC、IP Long press 2 seconds Copy receiver monitor EDID to transmitter.
- Page 4 The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage. Trouble Shooting HE03-4K transmission data rate up to 850Mbps Max. Do not recommend to connect general LAN to avoid large video data transmission slow down other LAN devices. 。...
-
Page 5: Specification
User Manual HE03-4K Specification ITEM HE03T-4K HE03R-4K Support Compliance HDCP 1.4 Max. Video Resolution 4K@30Hz 4:4:4 Max. Transmission Distance 120M over CAT5e, 140M over CAT6 Audio Format LPCM 7.1 @192KHz Ports & Interfaces Video Input 1 x HDMI Type A...
