- Page 1 USB Extender Series User Manual Model : UE03 USB 2.0 CAT5e Extender with 4 Port Hub 50M Smart Cabling & Transmission Corp. V2.0 V2.0...
-
Page 2: Installation View

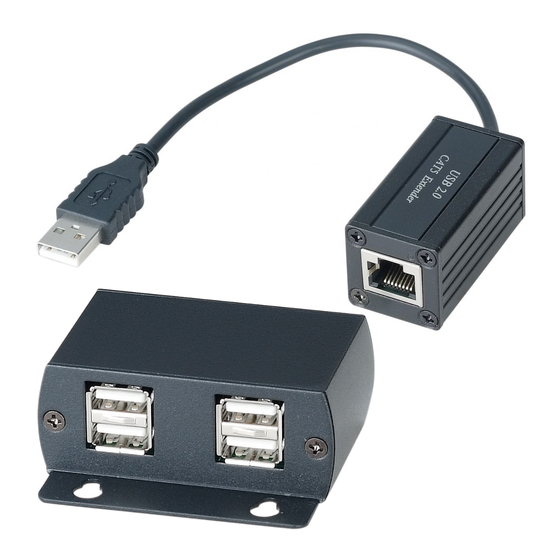

User Manual UE03 Introduction UE03 is a peripheral device designed for extending 4 of USB 2.0 signals, such as USB cameras, touch screen, touchpad, HDD(External Hard Drive), USB flash drives, keyboards, mouses...etc. Features Extends 4 USB signals over an Ethernet cable. - Page 3 User Manual UE03 Panel View UE03T Device Unit UE03R Host Unit LED Status Green LED Status Blinking Breathing Dark Function Data Transferring Stand-by* No Power to UE03T *Stand-by Description UE03T not connected to UE03R. UE03T connected to UE03R, but no USB Host connected to UE03R.
- Page 4 The cabling must be away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage. UE03 device is not an Ethernet product, do not to connect any Ethernet or PoE devices to avoid any damages. UE03 is not applicable for USB hosts which remain powered after PC/Laptop are shut down.
-
Page 5: Package Include
User Manual UE03 Package Include: 1 x UE03T 1 x UE03R 4 x Screw 4 x Screw Plug 1 x DC5V 2A Specification ITEM NO. UE03T (Device Side) UE03R (Host Side) Support Compliance USB 2.0(High-speed), USB 1.1(Full-speed), USB1.0(Low-speed) 480Mbps (USB2.0 High-speed) Data Bandwidth 12Mbps (USB1.1 Full-speed)
