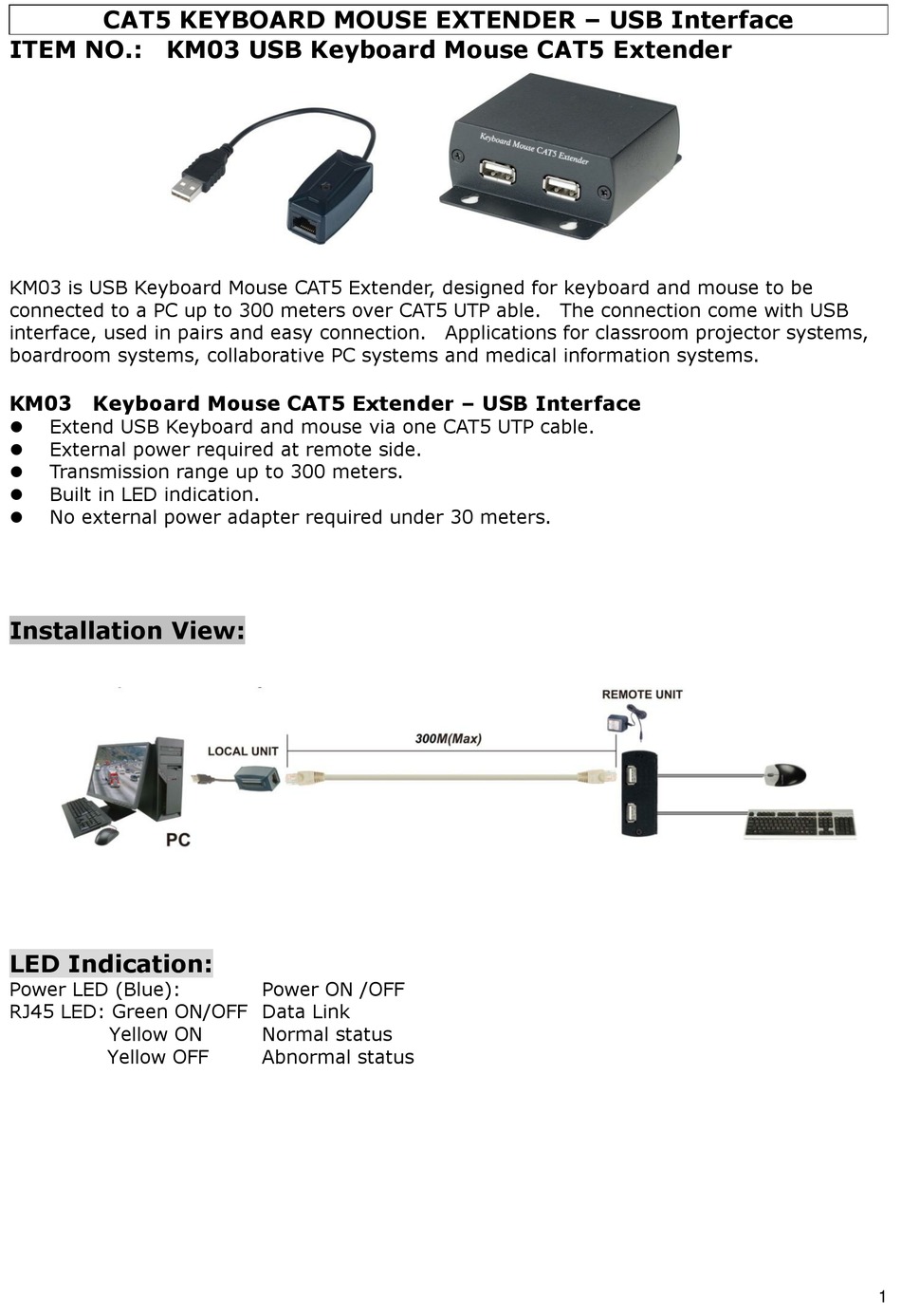

CAT5 KEYBOARD MOUSE EXTENDER – USB Interface
ITEM NO.: KM03 USB Keyboard Mouse CAT5 Extender
KM03 is USB Keyboard Mouse CAT5 Extender, designed for keyboard and mouse to be
connected to a PC up to 300 meters over CAT5 UTP able. The connection come with USB
interface, used in pairs and easy connection. Applications for classroom projector systems,
boardroom systems, collaborative PC systems and medical information systems.

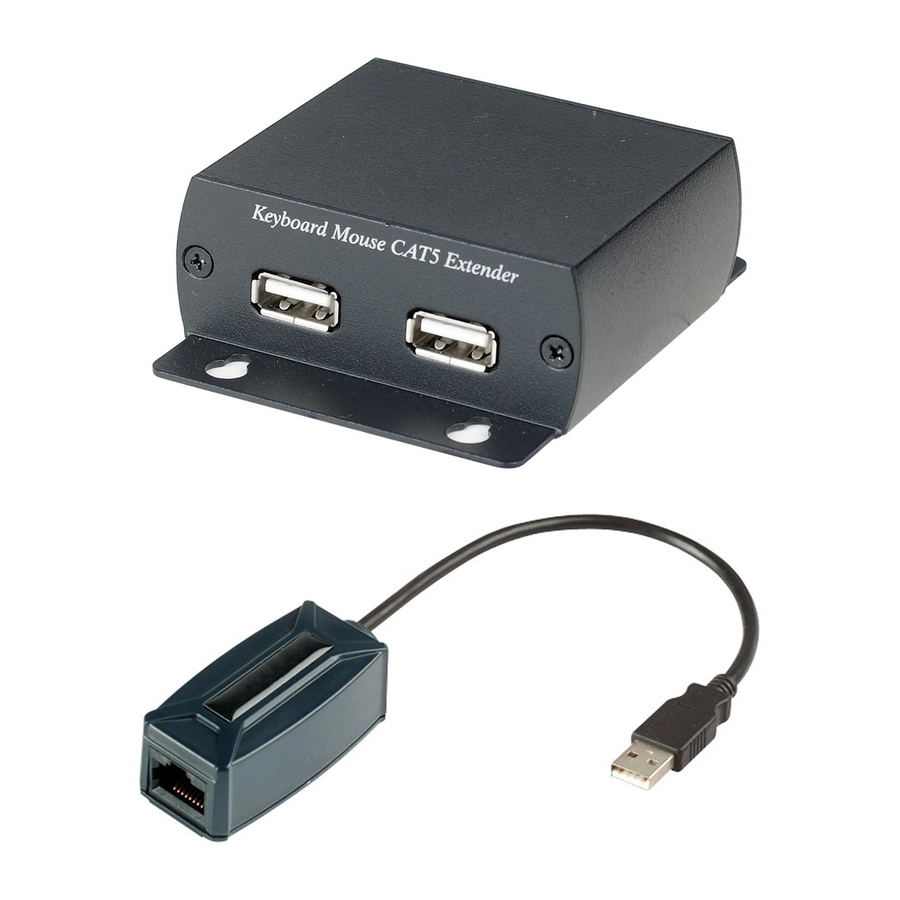

KM03 Keyboard Mouse CAT5 Extender – USB Interface
Extend USB Keyboard and mouse via one CAT5 UTP cable.
External power required at remote side.
Transmission range up to 300 meters.
Built in LED indication.
No external power adapter required under 30 meters.
Installation View:
LED Indication:
Power LED (Blue):
RJ45 LED: Green ON/OFF Data Link
Yellow ON
Yellow OFF
Power ON /OFF
Normal status
Abnormal status
1
Advertisement
Table of Contents
Related Manuals for SC&T KM03 Series
Summary of Contents for SC&T KM03 Series
- Page 1 CAT5 KEYBOARD MOUSE EXTENDER – USB Interface ITEM NO.: KM03 USB Keyboard Mouse CAT5 Extender KM03 is USB Keyboard Mouse CAT5 Extender, designed for keyboard and mouse to be connected to a PC up to 300 meters over CAT5 UTP able. The connection come with USB interface, used in pairs and easy connection.
- Page 2 Panel View: KM03T KM03R Troubleshooting: The connection wiring must connect power and CAT5 cable first, and then connect to your keyboard and mouse. Otherwise it may cause failed connection. This product only works with keyboard and mouse, not able to compatible with any other USB devices.
