- Page 1 HDMI/ KVM Extender Series User Manual Model : HKM01-4K 4K HDMI USB/Audio/RS232/IR CAT5e KVM Extender 140M with Fiber Smart Cabling & Transmission Corp. V1.0_2008241 V1VV1.0_2008241...
-
Page 2: Installation View
HKM01-4K Introduction HKM01-4K is a 4K HDMI KVM extender that use a cost-effective Ethernet cable to send HDMI, USB, Analog audio, RS232, and IR signals with transmission distance up to 140 meters. Its TX unit has an HDMI loop out port for an extra HDMI display. -
Page 3: Panel View

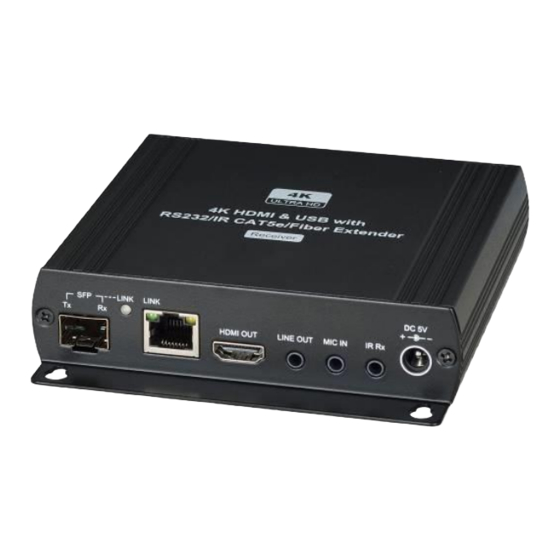

User Manual HKM01-4K Panel View HKM01T-4K Interface Function SFP Connector To insert a SFP transceiver module LINK/ACT To indicate the status of SFP link and data transmission RJ45 Connector To connect HKM01T-4K/ HKM01R-4K HDMI IN To connect a HDMI source... - Page 4 User Manual HKM01-4K HKM01R-4K Interface Function HDMI OUT To connect a HDMI display MIC IN To connect a 3.5mm jack for a microphone IR Rx To connect a 3.5mm jack for an IR receiver Internal IR receiver To receive IR signal...
- Page 5 User Manual HKM01-4K 3 RJ45 3.1 RJ45 Pinout Color Data Orange-white DATA0 + Orange DATA0 - Green-white DATA1 + Blue DATA2 + Blue-white DATA2 - Green DATA1 - Brown-white DATA3 + Brown DATA3 – 3.2 RJ45 Indication Status: Link On...
-
Page 6: Bottom View
User Manual HKM01-4K Bottom View Interface Function Tx Button 1 To set up EDID Tx DIP Switch To set up Groups, RS232, and EDID Rx Button 1 To check the status of MAC, IP, Baud Rate and EDID Rx Button 2... - Page 7 User Manual HKM01-4K 2 RS232 2.1 RS232 Setting 2.2 Baud Rate Setting 2.3 Baud rate supports 115200 (Default), 57600, 38400, 19200, 14400, 9600, 4800, 2400, and 1200bps. If baud rate needs to be changed, please refer to the instructions below.
-
Page 8: Troubleshooting
User Manual HKM01-4K Digital /Analog Audio Conversion Function Transmitter Transmitter Receiver Receiver Description LINE IN LINE OUT MIC IN LINE OUT Analog Bypass Analog Audio IN, Analog Audio OUT (Monitor Audio Muted) Audio Analog Audio IN, HDMI Audio OUT Embedder... -
Page 9: Specification
User Manual HKM01-4K Specification ITEM NO. HKM01T-4K HKM01R-4K Support Compliance HDMI 1.4 , HDCP 1.4, USB 2.0/ 1.1/ 1.0 Max. Video Resolution 4K@30Hz Max. Transmission Distance 140M over CAT6, 60KM over single mode fiber optic Audio Format LPCM7.1@192KHZ RS232 Baud Rate...
