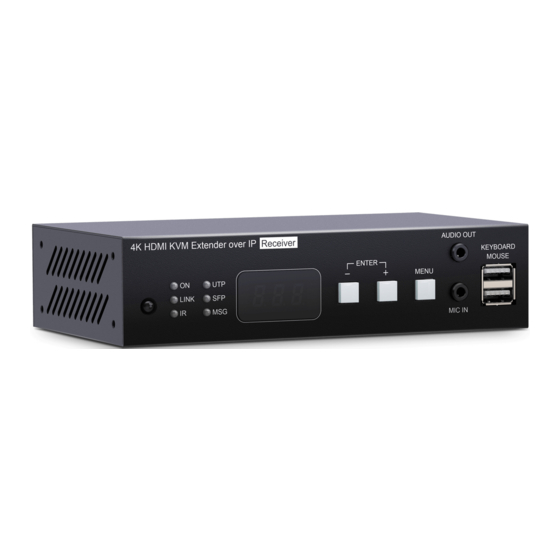

SC&T HKM02B-4K Quick Manual

1. ON (Green)
On – Device ready
Flashing – System starting up
2. LINK (Blue)
On– Link connected
Button Instruction:
Flashing- Trying to connect/ no input source
3. IR (Red)
On – Receive IR signal
Button -
*Reduce
Short Press
Number
Press together Enter
*Reduce Number: switches channel or function number down
*Increase Number: switches channel or function number up

Trouble Shooting


HDCP fail: Please use the receiver remote or front panel and enable
Menu 47 "HDCP always On" function on the receiver box.
(Press: Menu -> 47 -> Enter -> 1 -> Enter)

No display: Please force 1080p 60 Hz output on the receiver box by
pressing "Menu -> 40 -> Enter -> 2-> Enter" on the receiver remote
or front panel.

Make sure the Transmitter & Receiver are on the same Channel

Reset to default "Menu -> 333 -> Enter
HKM02B-4K: Quick Guide
4. MSG (Red)
On – Receive "Remote" Signal
Flashing- System warning
5. Display Panel
On Standby – Current Channel
6. Menu Button (Blue)
On-Under menu selection
+ Menu
*Increase
Number
Menu/Cancel
Point to Point Application
Step 1. Setup the Remote
Note: This remote can only control either Tx or Rx.
This Process only sets up the remotes.
You don't have to point the remote to the devices.
Transmitter (Tx)
○
7 at the same time
Press &
*MSG light will light when receive remote signal
Step 2. Plug and Use
If there are multiple systems on the same network, please make sure
each pair is on a different channel. *Default Channel "0"
Receiver (Rx)
○
8 at the same time
Press &
