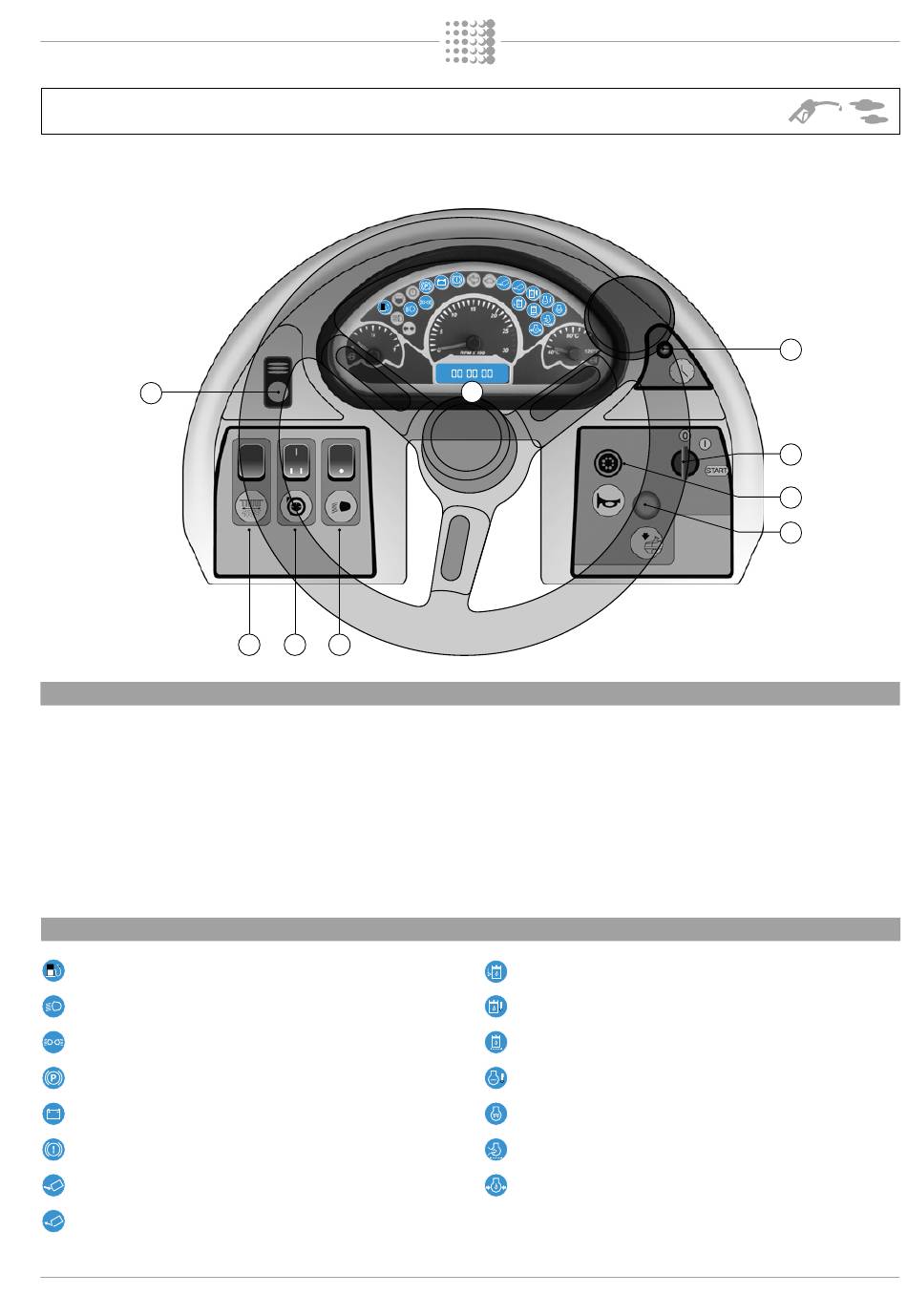

INSTRUMENT PANEL BUTTONS
1 Filter shaker switch
2 Suction turbine switch (100-120 D-Bifuel only)
3 Headlight switch
4 Partial hours display button
5 Start-up key
INSTRUMENT PANEL WARNING LIGHT
Yellow indicator light - fuel reserve
Indicates the light oil reserve
Low-beam light green warning light
Lights on
Green indicator light - side lights
Optional for the street version
Red indicator light - handbrake
Parking brake engaged
Red indicator light - alternator not recharging the battery
Fault to be checked
Red indicator light - brake oil level
Insufficient brake oil level
Red indicator light - hopper hatch closed
Indicates the closure of the hopper hatch
Green indicator light - hopper hatch open
Indicates the opening of the hopper hatch

DIESEL AND BIFUEL VERSION TOOLS

2 3
1
8
6 Buzzer
7 Safety button for lowering the hopper
8 Hour meter
9 LPG/petrol power supply switch (100-120 Bifuel only)
Red indicator light - low hydraulic oil level
Top up the level in the hydraulic circuit
Red indicator light - hydraulic oil temperature
Fault in the hydraulic circuit or radiator
Red indicator light - hydraulic oil filter clogged
Check and clean the filter
Red indicator light - excessive motor water temperature
Stop the work operation and check the causes
Yellow indicator light - glowplugs
Activation of motor heating glowplugs
Red indicator light - motor air filter clogged
Disassemble and clean the filter
Red indicator light - low motor oil pressure alarm
Stop the work operation and check the causes
8
4
5
6
7
