Summary of Contents for Fimap FS50 H
- Page 1 USE AND MAINTENANCE MANUAL FS50 B-BT FS50 H-HT ED. 05-2010 ORIGINAL INSTRUCTIONS Doc. 10024515 Ver.
- Page 2 The contained descriptions in the present publication are not binding. COMAC S.p.A. therefore reserves itself the right to bring in whatever moment possible organs changes, details or supplies of accessories, that it holds convenient for an improvement, or for any demand of constructive or commercial character.
-
Page 3: Table Of Contents
SUMMARY ON CONSIGNMENT OF THE MACHINE ................................... 4 SERIAL NUMBER PLATE ....................................... 4 INTRODUCTION........................................4 DATA FOR IDENTIFICATION....................................4 TECHNICAL DESCRIPTION ....................................4 SYMBOLS USED ON THE MACHINE..................................6 GENERAL SAFETY RULES ..................................... 7 PREPARATION OF THE MACHINE ..................................8 1. -
Page 4: On Consignment Of The Machine

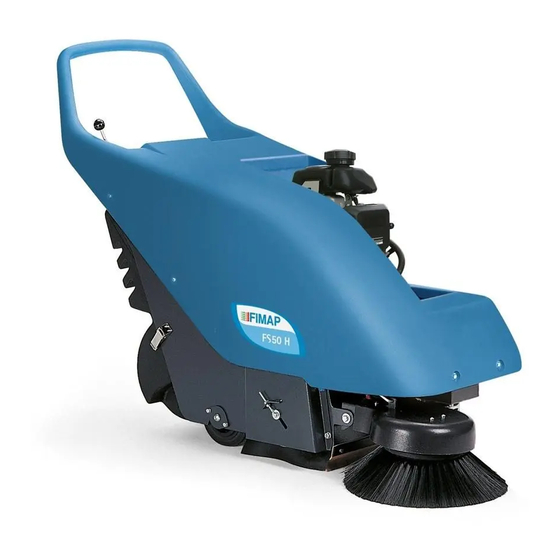

FS50 B-BT Technical description FS50 H-HT is a sweeping machine operated by a petrol engine and it is meant for cleaning both indoor and outdoor surfaces paved with tiles, cement or asphalt. - Page 5 FS50 H FS50 HT FS50 B FS50 BT TECHNICAL DESCRIPTION Cleaning width without side brush 2275 2600 2275 2600 Working capacity Maximum hill climbing 500x265 500x265 500x265 500x265 Size of central brush Volume of dirt hopper Gas engine (Honda) Electric engine...
-
Page 6: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Filter shaker Suction interruption Side brush Wearing the protection headset Pay attention to hot parts On/off (battery-operated machine only) ON / 1 Indicates the battery charge level (battery-operated machine only) -
Page 7: General Safety Rules
Otherwise, especially in case of anomalies to electric parts, ask for assistance to FIMAP Customer Service. • In case you need spare parts, always ask for FIMAP original spare parts to our agent or Customer Service. • Do not ever damage any safety device and check them up regularly. -
Page 8: Preparation Of The Machine
Take the cardboard box off. Package size: 153x76x119 Weight of packed machine FS50 B-BT: P = 95 Kg Weight of packed machine FS50 H-HT: P = 103.5 Kg SLIDING THE MACHINE DOWN THE PALLET • Place a sliding board near the pallet. -
Page 9: Installing The Battery (Battery Operated Machine Only)
PREPARATION OF THE MACHINE INSTALLING THE BATTERY (BATTERY OPERATED MACHINE ONLY) We recommend, in order to have good operating autonomy, installing a 12Vx140Ah/20h battery. Make sure that the battery is charged before installing. ATTENTION: carefully follow the battery constructor or distributor’s instructions for the maintenance, the first charge and the daily recharging. -
Page 10: Operating The Machine
OPERATING THE MACHINE WORKING POSITION The operator stands on the ground to operate the machine, moving behind it and holding it by its handle. CONTROL COMPONENTS AND THEIR POSITIONS • Suction off/electric filter shaker (optional in the battery-powered version) (a): this moves a flap to close off the fan's suction duct, at the end of the run the filter shaker is activated. -
Page 11: Usage
USAGE As the side brush is not provided with suction, use it on borders only. Push the machine to move forward. TRACTION VERSION Pull the traction handle to move forward. In case of bulky waste, press down on the handle to raise the front of the machine, to allow the central brush to sweep it up. - Page 12 USAGE For efficient suction clean the filter approximately every 10 minutes. Proceed as follows: • turn suction off (lever a); • actuate manual filter-shaker several times (lever b); • for the electric filter-shaker version, when lever (a) stops, pull it for a few seconds •...
-
Page 13: Upon Completion Of Work
UPON COMPLETION OF WORK GAS ENGINE VERSION • Stop the engine, carefully following the information given in the engine’s specific OPERATING AND MAINTENANCE INSTRUCTIONS. BATTERY OPERATED VERSION • Stop the machine by turning the on/off push-button (d) to “off” BOTH VERSIONS •... -
Page 14: Maintenance Operations
MAINTENANCE OPERATIONS ATTENTION: Before any adjustment and/or maintenance procedure always switch off the machine. ATTENTION: Disconnect the battery before cleaning or attempting any maintenance procedure on the machine. CLEANING THE FILTER ATTENTION: always wear glove while doing this operation to avoid contact with dangerous substances. -
Page 15: Cleaning The Filter - Clamps And Filter Shaker Version
MAINTENANCE OPERATIONS Unlock of the registers. Block the pressure stirrup. CLEANING THE FILTER – CLAMPS AND FILTER SHAKER VERSION • Turn the machine off. • Remove the debris hopper. • Disconnect the red connector of the filter shaker motor • Loose the inferior knobs (a). -
Page 16: Adjusting The Side Brush
MAINTENANCE OPERATIONS ADJUSTING THE SIDE BRUSH To adjust the brush height, regulate the screw (a) placed inside the brush bearing bracket (b). The brush should be pressed on the floor for about 2 cm. ADJUSTING THE CENTRAL BRUSH The central brush should work pressed on the floor for about 7/8 mm. To adjust its height, regulate the two register screws (a) and (b) on both sides of the machine. -
Page 17: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE: THE CENTRAL BRUSH DOES NOT CLEAN • The brush is worn or improperly positioned: adjust its position or, if necessary, have it replaced at your nearest FIMAP service centre. • The waste bin is full: empty it. •... -
Page 18: Scrapping Of The Machine
SCRAPPING OF THE MACHINE The machine is composed of: iron materials, plastics, rubber. The battery-operated version of the machine is also equipped with a battery which may have to be replaced several times during the working life of the machine. We advise you use authorised waste collection and disposal agencies to ensure ecological waste disposal when replacing the battery or dismantling the machine. -
Page 19: Ec Declaration Of Conformity
Nemko Spa Via Trento 116 I - 20046 Biassono (MI). Technical documents is kept at the Technical department Fimap S.p.A., Via Invalidi del Lavoro, No. 1 – 37050 Santa Maria di Zevio, Verona, Italy. The measured and guaranteed sound power level is indicated in the following table.
