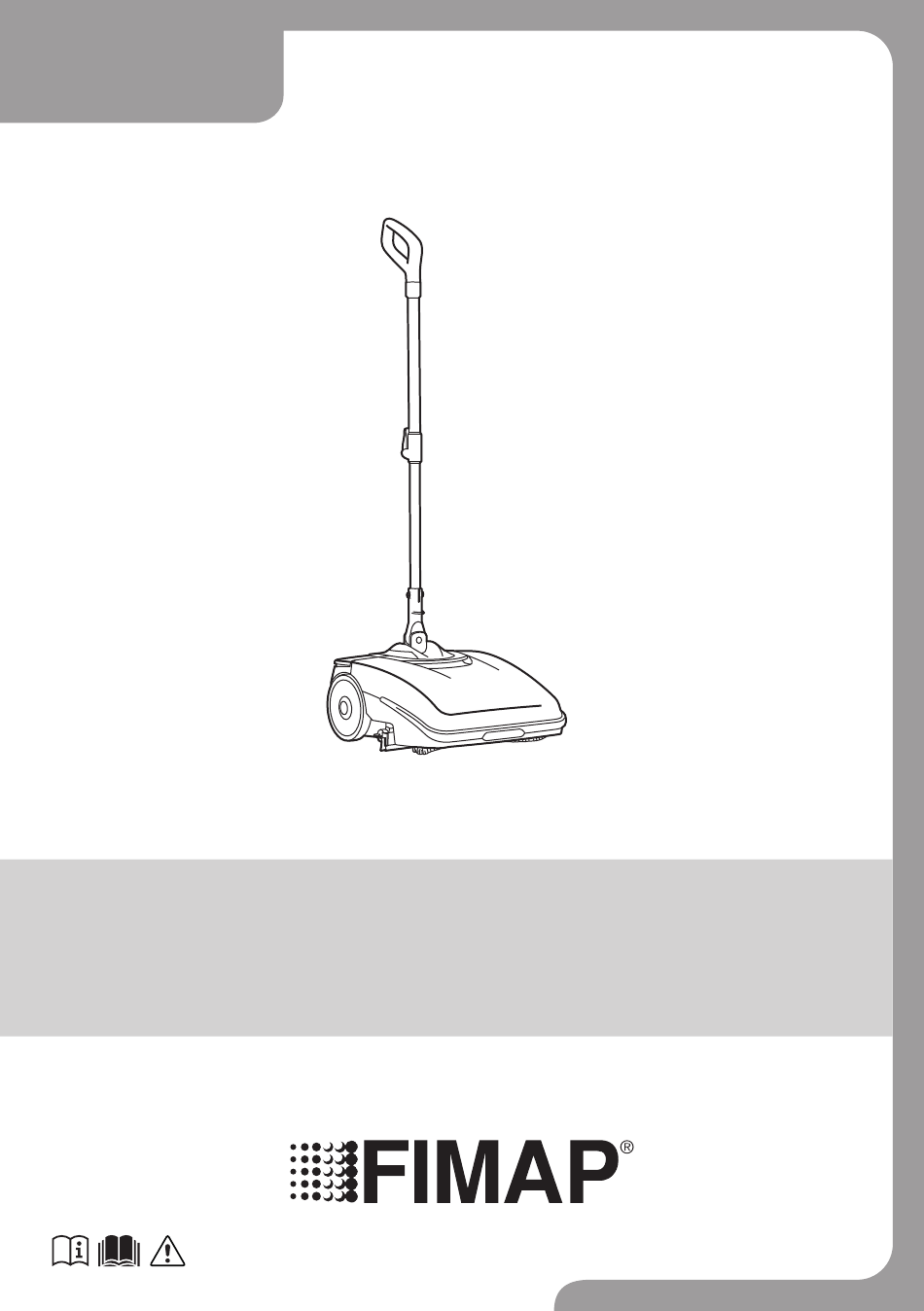

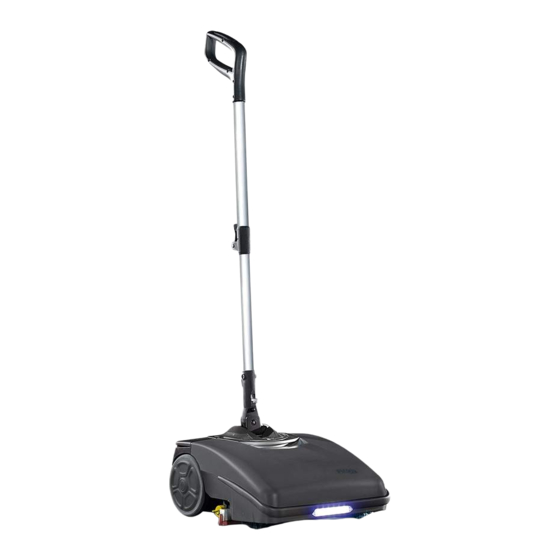

- Page 1 FIMOP COMMERCIAL AUTOSCRUBBER USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTION DOC. 10053541 - Ver. AA - 06-2015...
-
Page 3: Table Of Contents
CONTENTS SYMBOLS USED IN THE MANUAL ..................2 SYMBOLS USED ON THE APPLIANCE ................2 PURPOSE AND CONTENT OF THE MANUAL ..............3 TARGET GROUP ........................3 STORING THE USE AND MAINTENANCE MANUAL ............3 ON DELIVERY OF THE APPLIANCE ................... 3 INTRODUCTORY COMMENT .................... -
Page 4: Symbols Used In The Manual
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law. The company reserves the right to make any technical and/or supply modifications. -
Page 5: Purpose And Content Of The Manual
(written on the TECHNICAL DESCRIPTION The FIMOP is a scrubbing machine that cleans a wide range of and the detergent solution that has not been absorbed by the floor. flooring and dirt types by means of the mechanical action of the The appliance must only be used for this purpose. -
Page 6: Technical Data
TECHNICAL DATA FIMOP TECHNICAL DATA FIMOP Total power Overall dimensions in idle position 395 x 915 (LxHxL) x 365 Working width Rated battery voltage V / mAh 25.55 / Working capacity, up to 5200 Central brush (number / (diameter x No. -
Page 7: General Safety Regulations
GENERAL SAFETY REGULATIONS The regulations below must be carefully followed in order to avoid harm to the operator and damage to the appliance. WARNING: • This appliance must not be used by people (including children) with reduced physical, sensorial and mental capabilities, or by people without any experience or knowledge, unless they have been controlled and instructed in the use of the appliance by people responsible for their safety. - Page 8 • Only use the brush supplied with the appliance, or supplied by a dealer or Authorised Retailer. The use of other brushes could compromise safety levels. • The appliance must only be powered with a voltage equal to that shown on the serial number plate. •...
- Page 9 as not to damage the floor. • Do not knock against shelving or scaffolding, where there is a danger of falling objects. The operator must always be equipped with the appropriate safety devices (gloves, shoes, helmet, goggles, etc.). • If the appliance does not work properly, check this is not caused by failure to carry out routine maintenance.
-
Page 10: Handling The Packed Appliance
The overall weight of the appliance plus its packaging is 18 kg. The dimensions of the package are as follows: FIMOP HOW TO UNPACK THE APPLIANCE The procedure for removing the device from its packaging is the 4. -
Page 11: Battery Type
BATTERY TYPE To power the appliance, use only the battery supplied in the package ATTENTION: for the maintenance and disposal of the battery, or by a specialised technician. refer to the document supplied by the battery manufacturer. OTHER BATTERY TYPES CANNOT BE USED. The appliance is powered by a lithium-ion battery. -
Page 12: Preparing The Appliance
ATTENTION: if the battery used in this appliance is battery charger from the mains socket. overcharged, there may be a risk of fire, explosion or chemical burns. ATTENTION: to prevent any damage to the mains socket, pull 9. Once the charging cycle is completed, remove the plug (2) on the directly on the plug (not on the cable) when taking it out. -
Page 13: Preparing To Work
PREPARING TO WORK Before beginning to work, it is necessary to: 3. Activate the appliance using the main switch (1) (Fig.1). ATTENTION: before beginning the first work cycle, fully ATTENTION: if the LED of the main switch (1) (Fig.1) is lit up, recharge the battery (read “RECHARGING THE BATTERY”). -
Page 14: Work
WORK Before beginning to work, it is necessary to: ATTENTION: if the LED of the electric pump control switch (3) (Fig.3) is active, this means the pump will supply detergent 1. Carry out the operations described in the “PREPARING TO solution. -
Page 15: At The End Of The Work
AT THE END OF THE WORK At the end of the work, and before carrying out any type of ATTENTION: Fig.2 shows the left side of the device. Rotate maintenance, perform the following operations: the knob on the right-hand side in the opposite direction. 1. -
Page 16: Maintenance
ATTENTION: during this operation, do not rest your foot on 25. Take the appliance to the designated storage area. the appliance. 26. Position the appliance with its rear part in contact with the floor (Fig.16). 22. Rotate the stop lever of the command handlebar (13) in the ATTENTION: Park the appliance in an enclosed place, on a direction of the arrow (Fig.13). - Page 17 ATTENTION: these operations must be carried out using 9. Clean the brush under running water to remove any impurities present in the bristles. Check that the bristles are not worn; in the protective gloves to avoid any possible contact with the edges or tips of metal objects.
- Page 18 ATTENTION: during this operation, do not rest your foot on 26. Rotate the stop lever of the command handlebar (20) in the the appliance. direction of the arrow (Fig.22). 27. Close the command handlebar, pushing the handle (21) towards the main part of the appliance (Fig.23). 28.
- Page 19 Careful maintenance of the squeegee rubbers guarantees better • Replace the worn/damaged rubber. cleaning and drying of the floor, as well as a longer vacuum motor • Repeat the operations in reverse order to reassemble all the life. To replace the squeegee rubbers, proceed as follows: parts.
-
Page 20: Troubleshooting
TROUBLESHOOTING This chapter lists the most common problems linked with the use of the appliance. If you are unable to resolve the problems with the information given here, please contact your nearest assistance centre. PROBLEM POSSIBLE CAUSE SOLUTION The main switch is OFF. Press the main switch. -
Page 21: Disposal
FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products ELECTRIC BRUSH, "FIMOP" model comply with the requirements of the following Directives: • 2006/95/EC. • 2004/108/EC They also comply with the following standards: The person authorised to compile the technical file: •... - Page 22 NOTE...
