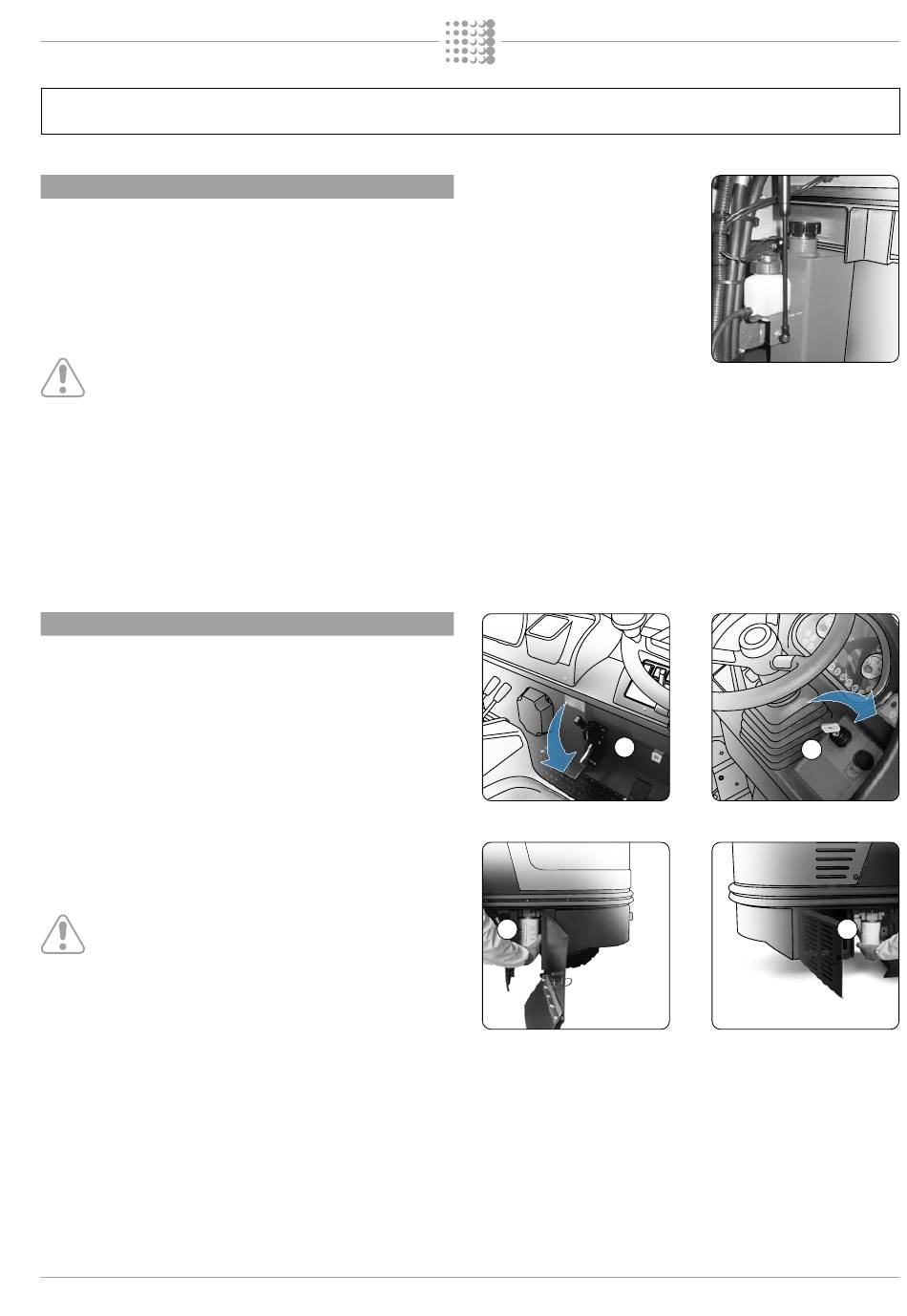

7. HYDRAULIC TRANSMISSION MAINTENANCE

The hydraulic oil level must be checked with cold machine and
with debris hopper lowered.
Refill the hydraulic transmission tank, placed under the rear
trunk, with hydraulic oil ARNICA 46 or similar, when the level
goes under the minimum visible from the lower transparent plug
present on the wall under the operator seat.
ATTENTION: if the red warning light of the instrument
panel turns on, immediately stop the machine.
ATTENTION: protect yourself with DPI suitable for
hydraulic oil.
ATTENTION: for all other maintenance operations,
you are advised to contact our technical assistance
centre (organised in collaboration with our dealers), as
these interventions require specific technical skills and
the use of the right equipment.
ATTENTION: oil must be replaced every 1000 hours,
regardless of its level.

8. HYDRAULIC OIL FILTER REPLACEMENT

Change the hydraulic oil filter every 300 hours or when the
instrument panel warning light is on, proceed as follows:
1 Stop the machine, engage the parking brake (1) and turn the
key (2) to position 0.
2 Wrap the oil tank plug with insulation tape, in order to close
the vent.
3 Open the lid in the right side of the machine by pressing and
turning the closing pin (see section 13) and place a tank
under the filter to collect small leaks.
4 Unscrew the filter (3) and replace it.
5 Close the lid by pressing and turning the pin
ATTENTION: dispose of the filters and used oil in the
correct manner
ATTENTION: protect yourself with DPI suitable for
hydraulic oil
ATTENTION: for all other maintenance operations,
you are advised to contact our technical assistance
centre (organised in collaboration with our dealers), as
these interventions require specific technical skills and
the use of the right equipment.
RECOMMENDED MAINTENANCE
24
1
80-90-110-100-120 B-D-Bifuel
3
80-90-110 B-D
80-90-110-100-120 B-D-Bifuel
2
80-90-110-100-120 B-D-Bifuel
3
100-120 B-D-Bifuel
