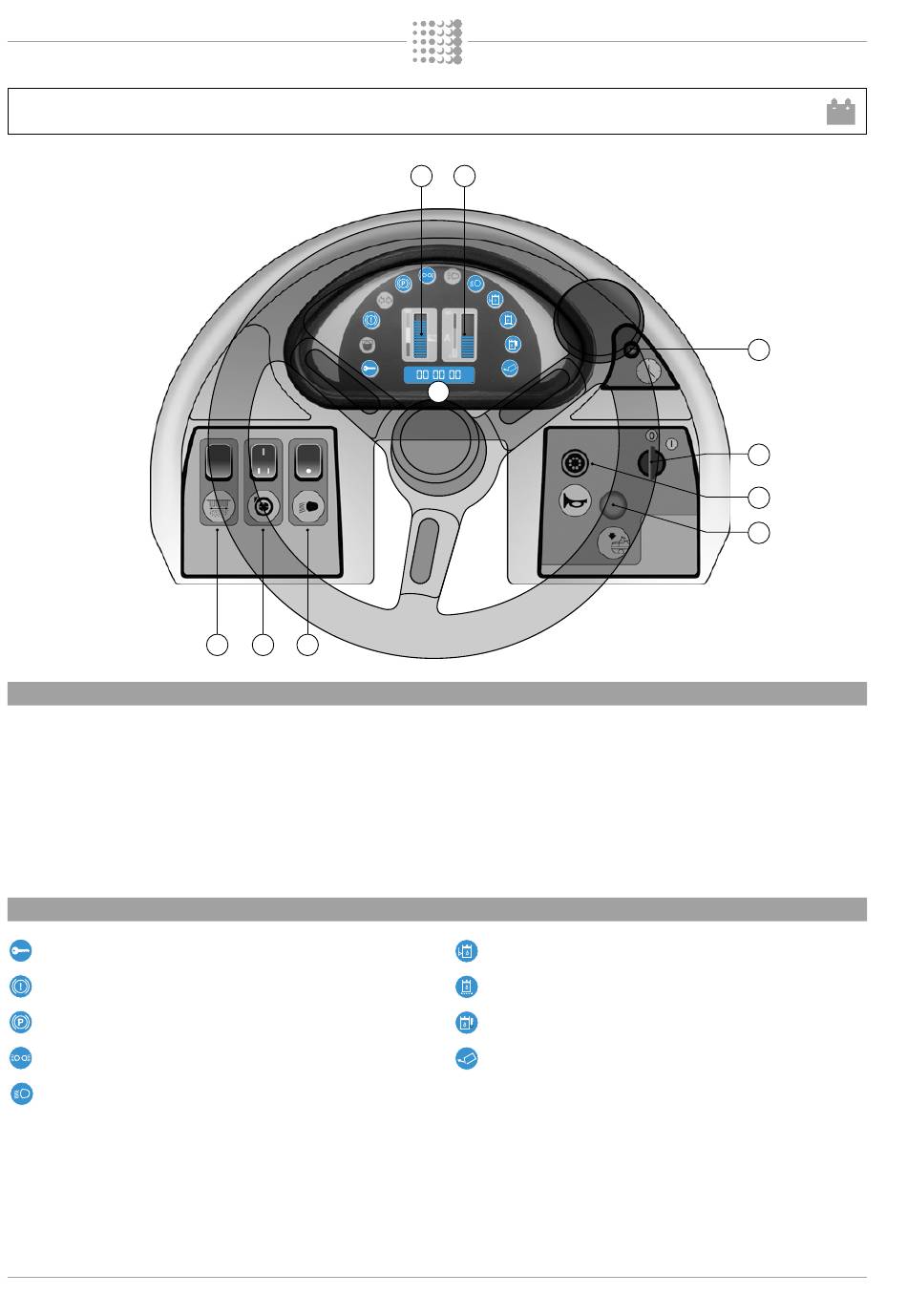

INSTRUMENT PANEL BUTTONS
1 Filter shaker switch
2 Suction turbine switch (100-120 B only)
3 Headlight switch
4 Battery level indicator
5 Current absorption indicator
The number of active bars on the display (4) indicates the battery charge level; when the battery is discharged (the display
indicates only one bar), a sound alarm is activated.
INSTRUMENT PANEL WARNING LIGHT
Green indicator light - key inserted
Key inserted
Red indicator light - brake oil level
Insufficient brake oil level
Red indicator light - handbrake
Parking brake engaged
Green indicator light - side lights
Optional for the street version
Low-beam light green warning light
Lights on

BATTERY VERSION TOOLS

2 3
1
4 5
10
6 Partial hours display button
7 Start-up key
8 Horn
9 Safety button for lowering the hopper
10 Hour meter.
Red indicator light - low hydraulic oil level
Top up the level in the hydraulic circuit
Red indicator light - hydraulic oil filter clogged up
Check and clean the filter
Red indicator light - hydraulic oil level temperature
Fault in the hydraulic circuit or radiator
Green indicator light - hopper hatch open
Indicates the opening of the hopper hatch
7
6
7
8
9
