Altronix eFlow104N Series Installation Manual page 7

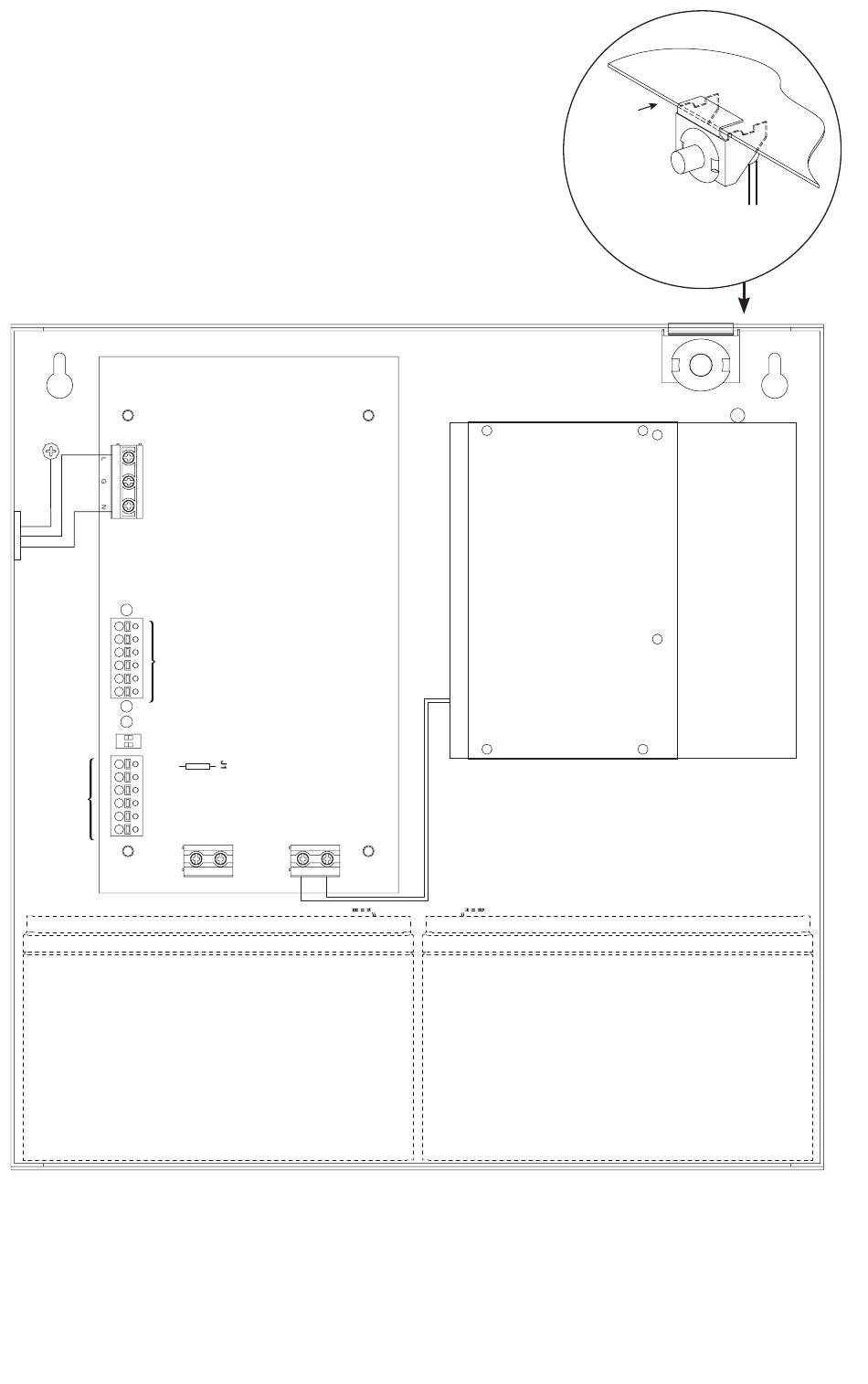

Fig. 5 - eFlow104N Configuration
Green
Lead
120VAC power mains
non power-limited
Battery & AC
Supervision Circuit
(power-limited)
power-
Battery Connection
limited
non power-limited
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries are required for UL603,
UL1481 and Canadian installations.
CAUTION: Power supply board is factory set for 24VDC. Use two (2) 12VDC stand-by batteries.
Keep power-limited wiring separate from non power-limited. Use minimum 0.25" spacing.
7AH Rechargeable batteries are the largest batteries that can fit in this enclosure.
A UL Listed external battery enclosure must be used if using 12AH, 40AH or 65AH batteries.
eFlow104N Series Installation Guide
AC Delay
– BAT + – DC +
Edge of
Enclosure
Tamper Switch
(included)
PD8UL/PD8ULCB
DC Output to Devices*
(refer to Fig. 3a, 3b, 4a, 4b
for board configuration, pg. 6)
* Outputs are non power-limited:
eFlow104N, eFlow104N8, eFlow104N16.
Outputs are Class 2 power-limited:
eFlow104N8D, eFlow104N16D.
Optional Rechargeable Stand-by
Battery for UL294 Applications.
Note: 12V batteries are required for UL603,
UL1481 and Canadian installations.
Enclosure
To Access Control Panel or
UL Listed Reporting Device
PD16W/
PD16WCB
- 7 -
