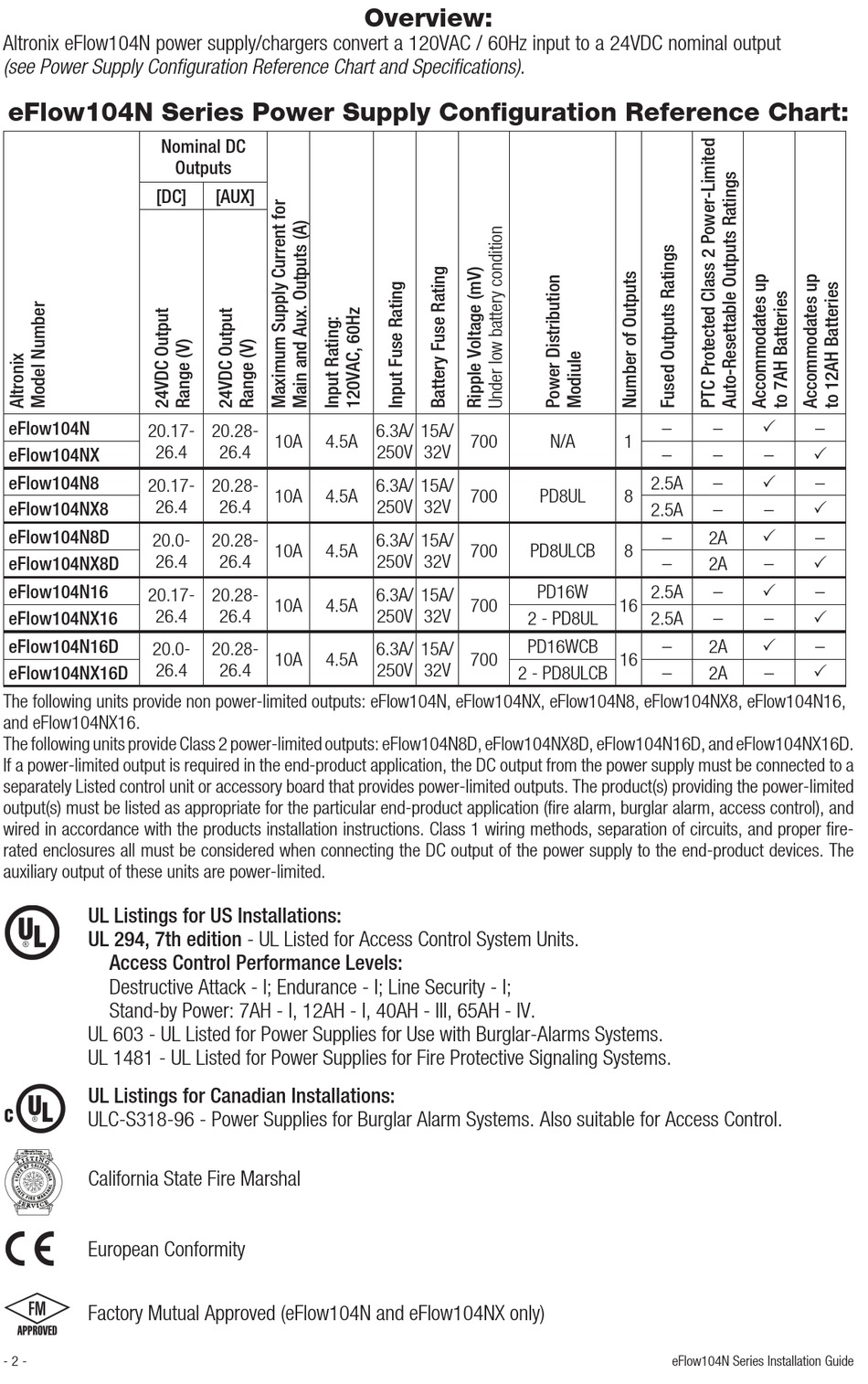

Altronix eFlow104N Series Installation Manual page 2

Altronix eFlow104N power supply/chargers convert a 120VAC / 60Hz input to a 24VDC nominal output
(see Power Supply Configuration Reference Chart and Specifications).
eFlow104N Series Power Supply Configuration Reference Chart:
Nominal DC
[DC]
eFlow104N
20.17-
26.4
eFlow104NX
eFlow104N8
20.17-
26.4
eFlow104NX8
eFlow104N8D
20.0-
26.4
eFlow104NX8D
eFlow104N16
20.17-
26.4
eFlow104NX16
eFlow104N16D
20.0-
26.4
eFlow104NX16D
The following units provide non power-limited outputs: eFlow104N, eFlow104NX, eFlow104N8, eFlow104NX8, eFlow104N16,
and eFlow104NX16.
The following units provide Class 2 power-limited outputs: eFlow104N8D, eFlow104NX8D, eFlow104N16D, and eFlow104NX16D.
If a power-limited output is required in the end-product application, the DC output from the power supply must be connected to a
separately Listed control unit or accessory board that provides power-limited outputs. The product(s) providing the power-limited
output(s) must be listed as appropriate for the particular end-product application (fire alarm, burglar alarm, access control), and
wired in accordance with the products installation instructions. Class 1 wiring methods, separation of circuits, and proper fire-
rated enclosures all must be considered when connecting the DC output of the power supply to the end-product devices. The
auxiliary output of these units are power-limited.
UL Listings for US Installations:
UL 294, 7th edition - UL Listed for Access Control System Units.
Access Control Performance Levels:
Destructive Attack - I; Endurance - I; Line Security - I;
Stand-by Power: 7AH - I, 12AH - I, 40AH - III, 65AH - IV.
UL 603 - UL Listed for Power Supplies for Use with Burglar-Alarms Systems.
UL 1481 - UL Listed for Power Supplies for Fire Protective Signaling Systems.
UL Listings for Canadian Installations:
ULC-S318-96 - Power Supplies for Burglar Alarm Systems. Also suitable for Access Control.
Altronix Corp.
140 58th St. Brooklyn, NY
California State Fire Marshal
European Conformity
Factory Mutual Approved (eFlow104N and eFlow104NX only)
- 2 -
Outputs
[AUX]
20.28-
10A 4.5A
26.4
20.28-
10A 4.5A
26.4
20.28-
10A 4.5A
26.4
20.28-
10A 4.5A
26.4
20.28-
10A 4.5A
26.4
Overview:
6.3A/ 15A/
700
250V 32V
6.3A/ 15A/
700
250V 32V
6.3A/ 15A/
700
250V 32V
6.3A/ 15A/
700
250V 32V
6.3A/ 15A/
700
250V 32V
2 - PD8ULCB
–
N/A 1
–
2.5A
PD8UL 8
2.5A
–
PD8ULCB 8
–
PD16W 2.5A
16
2 - PD8UL 2.5A
PD16WCB –
16
–
eFlow104N Series Installation Guide
– –
P
– –
P
– –
P
– –
P
2A –
P
2A –
P
– –
P
– –
P
2A –
P
2A –
P
