17 TCP/IP dry
contact device
17.1 Smart-Vue TCP/IP
Dry Contact device
description
Thermo Scientific Smart-Vue
Smart-Vue TCP/IP Dry Contact devices are used to trigger alerts on one or
two external dry contact devices if alarm conditions are detected in your
Smart-Vue wireless monitoring system. Alarms can be configured in the
Smart-Vue Client software for any or all of your end-point modules
and/groups.
For example, you can configure a Smart-Vue temperature monitoring
module to trigger an alarm if the temperature exceeds or drops below a
specified limit. The alarm limits and values depend on the type of
Smart-Vue module you are using. The TCP/IP Dry Contact device receives
a signal over the network when an alarm is detected by the software, and
then triggers an alarm on the connected dry contact device(s).
If your TCP/IP Dry Contact device is used to control two connected
devices, both of the devices are controlled identically at the same time.
CAUTION: The Smart-Vue server's Alarm Management System connects
to the TCP/IP Dry Contact device on its IP port 30704. This port must
therefore be open for outbound connections on your firewall.
®
Wireless Monitoring Solution

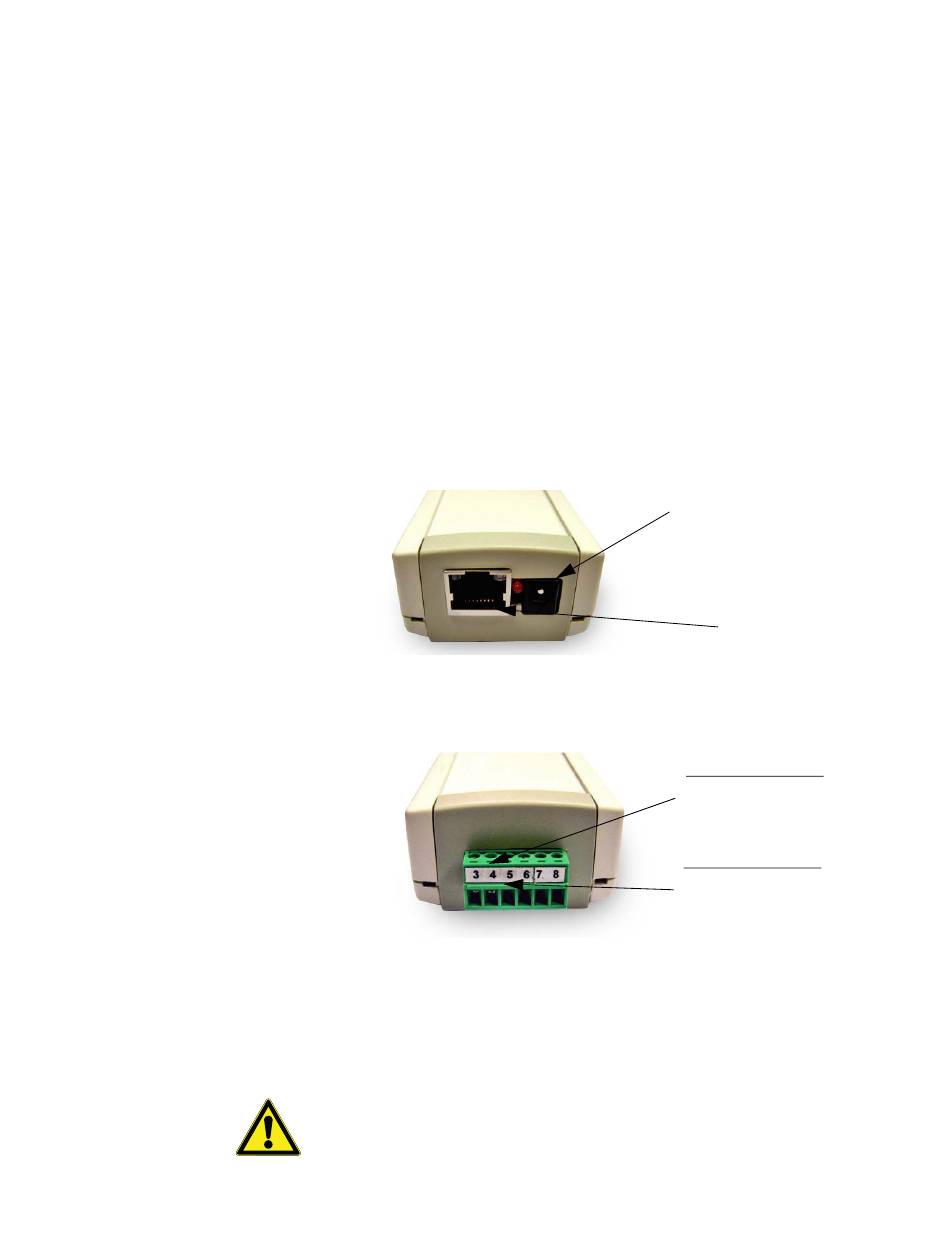

AC adapter plug
Figure 47. Bottom View
Dry Contact 3 & 4:
Normal state = Closed contact
Alarm state = Open contact
Dry Contact 4 & 5:
Normal state = Open contact
Alarm state = Closed contact
Figure 48. Top View

TCP/IP dry contact device

RJ-45 Ethernet plug
Administrator Guide v 2.2 85
