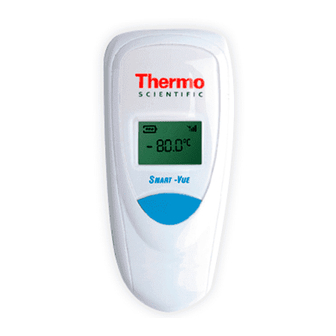

Thermo Scientific
Smart-Vue
Installation
316266H0
January 2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-Vue and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thermo Scientific Smart-Vue

Summary of Contents for Thermo Scientific Smart-Vue

  • Page 1 Thermo Scientific Smart-Vue Installation 316266H0 January 2011...
  • Page 2 Thermo Scientific products do not contain any internal components that require user intervention or repair. If the product or device shows signs of improper operation, disconnect it immediately from its power source and contact Thermo Scientific technical services so that the device can be examined under proper conditions.

  • Page 3: Table Of Contents

    Placing your network receiver for best performance....13 Activating your network receiver ..........13 Configuring the network receiver as a COM port ....14 Testing the connection............18 Configuring network receivers in Smart-Vue Client ....20 Adding a new network receiver..........20 Where to find more information..........22 Appendix ................23 Configuring your firewall ............23...

  • Page 4: Notices

    Do not cause a short-circuit with the electrical plug. Do not force either the AC or DC plug. Before removing the connector from the Smart-Vue module or unplugging power cables, first unplug the cable from the power outlet.

  • Page 5: Conformity With European Regulations

    Notices Conformity with This paragraph pertains to 868 MHz Smart-Vue wireless modules. The CE mark on this product indicates that Thermo Fisher Scientific declares that European regulations this product is compliant with Radio equipment and Telecommunications Terminal equipment (R&TTE) directive 1999/5/EC and the Low Voltage Directive (LVD) 2006/95/EC.

  • Page 6: Introduction

    Plugged into your local Ethernet network, this receiver collects data wirelessly from various types of Smart-Vue end-point modules, including temperature, humidity and other sensors, and transfers it to the Smart-Vue Server data monitoring software. Network receivers are particularly useful when you need to read one or more groups of Smart-Vue modules that are located remotely from the Smart-Vue Server computer used to monitor the data.

  • Page 7: Product Overview

    A network receiver does the following: receiver • Collects data transmitted by end-point modules and forwards it to the Smart-Vue Server database (from which users manage and access their modules transparently using Smart-Vue Client) • Transmits configuration and on-demand read requests from client software to end-modules •...

  • Page 8: Typical Installation

    How it works In the Smart-Vue Client monitoring application, the Smart-Vue Network Receiver functions as if it were connected directly to your Smart-Vue Server computer, like a serial or USB receiver. The difference is that the receiver resides on the Ethernet network and communicates via TCP/IP.

  • Page 9: Requirements And Recommendations

    Requirements and recommendations Requirements and This installation guide does not cover the installation of Smart-Vue recommendations end-point modules or Smart-Vue Server/Smart-Vue Client software. Please see the documentation (e.g., the Thermo Scientific Smart-Vue Server/Client /USB-Serial Wireless Receiver manual and the Thermo Scientific Smart-Vue...

  • Page 10: System Requirements

    Ideally, ultimate contact is with a security department or company with 24/7 monitoring. Please see the Thermo Scientific Smart-Vue Software User Manual for an in-depth description of Smart-Vue end-point module configuration, alerts, notification, data management and general system features.

  • Page 11: Installation Procedure

    Smart-Vue Server/Smart-Vue Client software and at least one Smart-Vue end-point module are already up and running. If you need more information, please refer to the Smart-Vue Software User Manual for complete details for using the software and configuring your products.

  • Page 12: Installing Drivers And Port Redirection Software

    Please make sure you have Administrator rights on the computer before continuing. 1. Insert the Smart-Vue Server CD into the drive on your computer. The installation application will start automatically. If it does not, use Windows Explorer to navigate to the CD-ROM drive and double-click on start.exe in the root folder.

  • Page 13: Lantronix Device Installer Wizard

    Note If Microsoft.NET software components are not already installed on your computer, the above procedure will include the necessary modules. If the components are already installed, use Windows Update to check for updates to the .NET framework. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 14: Configuring Receiver Ip And Serial Parameters

    192.168.0.X.) You might need to change the IP address of your computer. Smart-Vue Network Receivers are delivered with a default IP address to ensure that you can access them over the network. The default IP address is: 192.168.0.100.
  • Page 15 7. In the Port settings zone of the screen, enter the following information: Protocol: RS-232 Baud Rate: 9600 Data Bits: 8 Flow Control and Parity: None Stop Bits: 1 8. Click on OK to save your serial settings. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 16: Placing Your Network Receiver For Best Performance

    (i.e., not directly on the ground), about 2 meters (6.5 ft.) high. Activating your network The Smart-Vue Network Receiver is a standalone device that requires mains power for operation. To activate your receiver: receiver 1. Screw the provided antenna onto the network receiver without forcing it.

  • Page 17: Configuring The Network Receiver As A Com Port

    COM port using the Lantronix CPR software. Your Smart-Vue Server software then communicates with the receiver through this simulated COM port. Follow these steps to configure port redirection on the Smart-Vue Server. 1. Click on Start ==> Programs ==> Lantronix ==> CPR ==> CPR Manager.
  • Page 18 COM ports on the left side of the screen. Note the COM port you chose. You will need that information when you complete the process and add the new receiver to Smart-Vue Client. Smart-Vue Network Receiver (TCP/IP) Installation Guide...
  • Page 19 4. Click on the new port you created (e.g., Com 19), which changes from red to green. Figure 7. Click on the new COM port 5. Click on Search for Devices. Figure 8. Receiver list after running search (devices shown at the bottom) Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...
  • Page 20 8. From the main menu (Figure 9), select Com Port ==> Save Settings ==> Yes (or press Ctrl-S). If you see a Windows message about hardware installation compatibility, you can click Continue Anyway to ignore the message. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 21: Testing The Connection

    Com Status: Open • Network Status: Connected to [IP address]:[TCP port] Notice the status information in the lower right and left of the screen (e.g., COM port status and “Open/Close/Test is running”). Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...
  • Page 22 2. Let the test run a few seconds to verify the connection is stable, then click on Close. Note It is essential to disconnect this connection test using the Close button. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 23: Configuring Network Receivers In Smart-Vue Client

    Using port redirection, virtual COM ports behave just like regular local receivers in ports. After you have completed the previous installation steps, your network receiver can be configured in Smart-Vue Client just like any other Smart-Vue Client receiver on a local serial or USB port.
  • Page 24 6. From the Receiver COM port number pick-list, select the virtual COM port you created in CPR Manager (e.g., COM19). 7. Enter the TCP port in the TCP port for Smart-Vue Server field. Note Make sure no other receivers are currently configured to use the TCP port indicated in the TCP port for Smart-Vue Server field (the default is 1091).

  • Page 25: Where To Find More Information

    This guide leads you through basic installation steps to get you started with information your product. For more details, please see the Thermo Scientific Smart-Vue Software User Manual. You may click on Help ==> User manual or press F1 to open it directly from within the Smart-Vue Client software.

  • Page 26: Appendix

    Appendix Configuring your The best solution is to configure the firewall so it authorizes communications with the Smart-Vue Client/Smart-Vue Server software firewall modules. This simple procedure involves adding 3 TCP ports to the firewall configuration, as described here for Windows XP and Vista (Windows 2000 does not have built-in firewall protection): 1.
  • Page 27 4. Click on OK to confirm each new port. Note If you have installed other firewall software, check the firewall’s user manual for specific instructions that may apply, or check with your system administrator. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 28: Note About Anti-Virus Software

    Preferences, Open or Disable option. The actual steps for disabling anti-virus software differ from vendor to vendor. Check the documentation for your application or check with your system administrator for help. Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 29: Troubleshooting

    Smart-Vue Server computer using a crossed RJ-45 cable. When I try to add the receiver in Smart-Vue Client, why do I get a message saying that the virtual COM port is already in use? Make sure you do not have any other receivers using the specified TCP port.

  • Page 30: Contact Information

    Contact information Contact information If you need help with your Thermo Scientific product, please send a detailed e-mail to us to the appropriate address listed below. Be sure to include as many details as possible, including specific product references, software versions and screen shots from your computer, etc.
  • Page 31 Contact information Rest of Asia Including Korea, Taiwan, Hong Kong, Vietnam, Singapore, Australia and New Zealand Phone: + 852 2885 4613 Fax: + 852 2567 4447 E-mail: service.LPG.ROA@thermofisher.com Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 32: Specifications

    Operating conditions: 0°C to +50°C (+32° to +122°F); 0 to 90% RH, non- condensing • Size: 190 x 52 x 30 mm (7.4 x 2 x 1.2 in.) • Weight: 165 g (5.8 oz.) Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...

  • Page 33: Warranty Statement

    Warranty statement Warranty statement Thermo Fisher Scientific warrants the functions of the Smart-Vue Monitoring system in accordance with our standard warranty as described in the Terms and Conditions of Sale applicable to your purchase of this product. Unless otherwise agreed to in writing, Thermo Fisher Scientific warrants that the product will conform to published specifications for a period of one year from the date of delivery.

  • Page 34: Declaration Of Conformance

    Warranty statement Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...
  • Page 35 Warranty statement Smart-Vue Network Receiver (TCP/IP) Installation Guide Thermo Fisher Scientific...
